Home /Products/Rectifier Module/Eltek CTOR0201.001 Rectiverter System |1U 3kVA AC Power Solution 1U height Smart Compatct Critical AC solutions

Eltek CTOR0201.001 Rectiverter System |1U 3kVA AC Power Solution 1U height Smart Compatct Critical AC solutions

1 set
MOQ
2300 USD
Price
Eltek CTOR0201.001 Rectiverter System |1U 3kVA AC Power Solution 1U height Smart Compatct Critical AC solutions
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Rectiverter Systems
AC Output Voltage: 230 VAC / 200 - 240 VAC
DC Output Voltage: 53.5 VDC / 43 - 58 VDC
Input Data: 185 - 275 VAC
Frequency: 47-53 & 57-63 Hz
Power Facotr: > 0.99 At 50% Load Or More / < 3.5%
DC Current: 64 A / 90 A During Overload (15s)
Controller: Optional For The Controller
Rectifier Module: 242100.100
Rectiverter Module: 242100.102
Highlight:

Eltek Rectiverter System 3kVA

,

1U height rectifier module

,

Smart compact AC power solution
Basic Infomation
Place of Origin: CHINA
Brand Name: ELTEK OR OEM
Model Number: CTOR0201.001
Document: ds-ctor0201.ds3-1-2-1.pdf
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 8 weeks
Payment Terms: D/A,T/T
Supply Ability: 200 sets per month
Product Description


Eltek CTOR0201.001 Rectiverter System |1U 3kVA AC Power Solution 1U height Smart Compatct Critical AC solutions

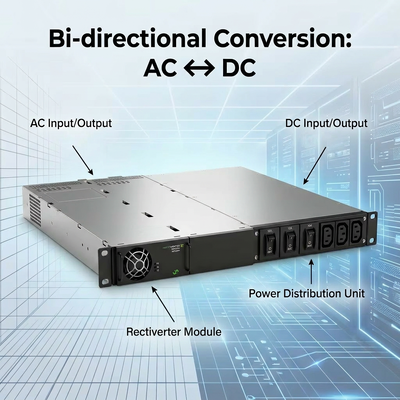

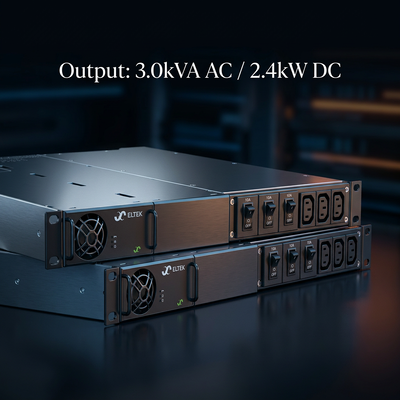

Eltek Rectiverter 1U 3kVA System (P/N: CTOR0201.001)​ is a compact 19-inch rack-mounted bidirectional converter delivering up to 3kVA AC (230V) & 2.4kW DC (48V)​
output from a single 48VDC source or AC mains, featuring front-load breakers and IEC sockets for telecom, railway, and utility backup applications without an external controller.


Why use CTOR0201.001​ 3KVA Rectiverter system in LTE/5G radio sites /small data center ?

Traditional sites need separate UPS for AC loads (WiFi, fiber nodes) and rectifiers for DC (48V radios). The Rectiverter integrates both: during mains failure, the 48VDC battery bank​ feeds AC loads via the 3kVA inverter and DC loads simultaneously. Its hot-pluggable design​ and 150% overload (15s)​ capability ensure critical uptime for distributed antenna systems (DAS) and broadband equipment without adding a standalone inverter shelf.

What is the advantage of "  Rectiverter CTOR0201.001 vs Standard Inverter + Rectifier ? "

A standard backup setup requires a rectifier (AC-DC)​ + inverter (DC-AC)​ + transfer switch = 2U~3U space. The CTOR0201.001 Rectiverter​ replaces this with a single 1U module​ handling bidirectional power (AC↔DC). It shares the same controller architecture as Eltek DC systems and supports parallel operation with Flatpack2 rectifiers. Result: 50% less rack space, fewer failure points, and simplified cabling for utility SCADA and railway signaling cabinets.



How to Select 1U 3kVA Rectiverter: CTOR0201.001 (230V) vs CTOR0201.004 (115V) ?


Selecting the right Rectiverter depends on regional AC standards:

  • CTOR0201.001:​ Default 230VAC​ (200-240V adj), 3kVA, 2400W DC, suited for Europe/Asia/Middle East telecom.

  • CTOR0201.004:​ Default 115VAC​ (100-127V adj), 1.5kVA, 1200W DC, suited for North America.

    Both share the 48VDC (40-58V) input range​ and 1U 482x395x44mm form factor​ with front IEC sockets and load breakers. Ensure your 48V battery bank nominal voltage is 53.5V (typical) within the 43-58V adjustable DC output range.


Parameters:

Technical Specifications: Eltek Rectiverter Integration/Standalone

Item 4 kW, 230 V System (CTOR0201.001) 2 kW, 115 V System (CTOR0201.004)
AC OUTPUT DATA

Voltage (default) / (adjustable range) 230 VAC / 200 - 240 VAC 115 VAC / 100 - 127 VAC
Frequency (default inverter mode) 50 Hz (adaptive) 60 Hz (adaptive)
Frequency (set-able inverter mode) 50Hz, 60Hz or last synced 50/60Hz (adaptive) 50Hz, 60Hz or last synced 50/60Hz (adaptive)
Power maximum (continuous / overload) 2400 W (3000 VA) / 4000 VA 1200 W (1500 VA) / 2000 VA
Current maximum (continuous / overload) 13 Arms / 17.4 Arms 13 Arms / 17.4 Arms
Current (maximum) Quick trip (20ms) 64 A (6 x nominal) 64 A (6 x nominal)
Hold up (Voltage dips) 5 ms 5 ms
THD < 1.5% at resistive load < 1.5% at resistive load
Output features Fuse in L and N, Hot pluggable Fuse in L and N, Hot pluggable
DC OUTPUT DATA

Voltage (default) / (adjustable range) 53.5 VDC / 43 - 58 VDC 53.5 VDC / 43 - 58 VDC
Power (maximum @nominal input) 2400 W 1200 W
Current (maximum @nominal output VDC) 50 A 25 A
Hold up time (max output power) >10ms; Vout > 41 VDC >10ms; Vout > 41 VDC
Output features Short circuit proof, Overvoltage Shutdown Short circuit proof, Overvoltage Shutdown
INPUT DATA

AC Mains Input Voltage (single phase) 185 - 275 VAC 95 - 140 VAC
AC Current (@nominal output voltage) 14 - 24 Arms 14 - 24 Arms
Frequency (default sync range) 47-53 & 57-63 Hz 57-63 & 47-53 Hz
Power Factor / THD > 0.99 at 50% load or more / < 3.5% > 0.99 at 50% load or more / < 3.5%
DC Voltage nominal / extended range 45 - 58 VDC / 40 - 45 VDC 45 - 58 VDC / 40 - 45 VDC
DC Current (maximum) 64 A / 90 A during overload (15s) 32 A / 45 A during overload (15s)
OTHER SPECIFICATION

Support for controller (RJ45) Smartpack2, Smartpack S & Compack Smartpack2, Smartpack S & Compack
Efficiency >96% (mains mode), >94% (inverter mode) >96% (mains mode), >94% (inverter mode)
2 pole AC distribution 3pc, 10A, IEC320-C13 sockets 3pc, 10A, IEC320-C13 sockets
Protection Class IP 20 IP 20
Operating temperature -40 to +55°C (-40 to +131°F) -40 to +55°C (-40 to +131°F)
Storage temperature -40 to +85°C (-40 to +185°F) -40 to +85°C (-40 to +185°F)
Dimensions [WxDxH] 482 x 395 x 44mm (1U) 482 x 395 x 44mm (1U)
Weight 6kg (13 lbs) 6kg (13 lbs)
