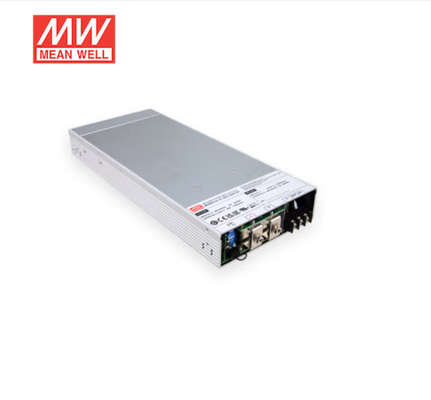

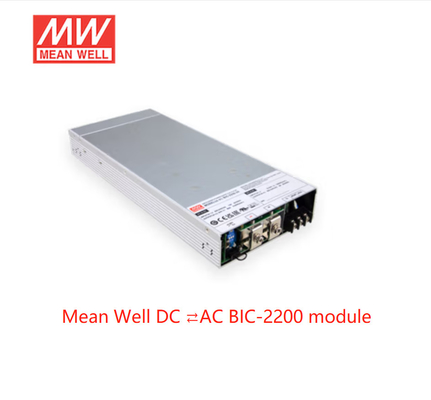

Mean Well BIC-2200 AC-DC Bidirectional Power Supply 2160W 12V 180A output BIC-2200-12
Features:
1U low profile design
Full digital design with 93% conversion efficiency for both AD/DC and DC/AD conversion
Ultrafast switching time between AD/DC and DC/AC of 1ms.
CB/TUV/UL 62368-1 certified, and design refer to IEC 62477 regulation
Active current sharing up to 11000W(4+1)
< 3% Low THD in both conversion mode
Force charging and recycle mode with CANbus commend(Optional)
Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP
5 years warranty
Technical
| AC to DC Direction |
MODEL |
BIC-2200-12 |
BIC-2200-24 |
BIC-2200-48 |
BIC-2200-96 |
|
OUTPUT
|
DC VOLTAGE |
12V |
24V |
48V |
96V |
| RATED CURRENT |
180A |
90A |
45A |
22.5A |
| RATED POWER |
2160W |
| FULL POWER VOLTAGE RANGE |
12 ~ 15V |
24 ~ 28V |
48 ~ 65V |
96 ~ 112V |
| RIPPLE & NOISE (max.) Note.2 |
160mVp-p |
260mVp-p |
300mVp-p |
480mVp-p |
| VOLTAGE ADJ. RANGE |
10 ~ 15V |
19 ~ 28V |
38 ~ 65V |
76 ~ 112V |
| CURRENT RANGE |
0 ~ 180A |
0 ~ 90A |
0 ~ 45A |
0 ~ 22.5A |
| VOLTAGE TOLERANCE Note.3 |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
| LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| LOAD REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| SETUP, RISE TIME |
1800ms, 60ms/230VAC at full load |
|
INPUT
|
AC VOLTAGE RANGE |
180 ~ 264VAC |
| FREQUENCY RANGE |
47 ~ 63Hz |
| POWER FACTOR (Typ.) |
0.98/230VAC at full load |
| EFFICIENCY (Typ.) Note.5 |
90% |
93% |
93% |
93% |
| AC CURRENT (Typ.) |
11A/230VAC |
| INRUSH CURRENT (Typ.) |
COLD START 35A/230VAC |
| LEAKAGE CURRENT |
<2mA/230VAC |
| TOTAL HARMONIC DISTORTION |
<3%(@load=100%/230VAC) |
| DC to AC Direction |
INPUT
(Note.9)
|
RATED INPUT POWER |
1800W |
| FULL POWER VOLTAGE RANGE |
12 ~ 15V |
24 ~ 28V |
48 ~ 65V |
96 ~ 112V |
| DC VOLTAGE RANGE |
10 ~15V |
19 ~ 28V |
38 ~ 65V |
76 ~ 112V |
| MAX. INPUT CURRENT |
150A |
75A |
37.5A |
18.75A |
|
OUTPUT
|
RATED OUTPUT POWER (Typ.) (@230V, 50Hz) |
1725VA |
| VOLTAGE RANGE |
180 ~ 264VAC determined by AC main |
| FREQUENCY RANGE |
47 ~ 63Hz determined by AC main |
| AC CURRENT (Typ.) |
7.5A/230VAC |
| POWER FACTOR (Typ.) |
0.99/230VAC at full load |
| EFFICIENCY (Typ.) Note.5 |
90.5% |
93% |
93% |
93% |
| TOTAL HARMONIC DISTORTION |
<3%(@load=100%/230VAC) |
|
PROTECTION
|
OVER LOAD
|
105 ~ 115% rated output power |
| AC to DC |
Constant current limiting, shut down DC O/P voltage 5 sec. after DC O/P voltage is down low, re-power on to recover |
| DC to AC |
Not accurable with constant power design |
| SHORT CIRCUIT |
Shut down O/P current, re-power on to recover |
| OVER VOLTAGE |
17.6 ~ 20.8V |
33.6 ~ 39.2V |
72.6 ~ 86V |
134 ~ 157V |
| Protection type : Shut down O/P voltage, re-power on to recover |
| OVER TEMPERATURE |
Shut down O/P voltage, recovers automatically after temperature goes down |
| ISLANDING PROTECTION |
Shut down AC O/P voltage, re-power on to recover |
|
FUNCTION
|
REMOTE ON-OFF CONTROL |
By electrical signal or dry contact Short: Power ON Open: Power OFF Please refer to the Function Manual infollowing |
| BIDIRECTION SWITCH TIME (Typ.) |
1ms |
| ALARM SIGNAL |
Isolated TTL signal output for T-Alarm, DC-OK and Fault. Please refer to the Function Manual in following pages |
| AUXILIARY POWER |
12V@0.5A tolerance±5%, ripple 150mVp-p |
|
BATTERY MODE RATED
CURRENT(default) Note.7
|
AC to DC |
160A |
80A |
40A |
20A |
| Can be adjusted by communication |
| DC to AC |
120A |
64A |
32A |
16A |
| Can be adjusted by communication |
|
ENVIRONMENT
|
WORKING TEMP. |
-30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 45℃) |
| VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|
SAFETY & EMC
(Note 4)
|
SAFETY STANDARDS |
UL62368-1, CAN/CSA C22.2 No.62368-1,TUV BS EN/EN62368-1, EAC TP TC 004, IEC62477-1(by request) approved |
| WITHSTAND VOLTAGE Note.8 |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:500VAC |
| ISOLATION RESISTANCE Note.8 |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
|
EMC EMISSION
|
BS EN/EN55032 |
| Parameter |
Standard |
Test Level / Note |
| Conducted |
BS EN/EN55032 (CISPR32) |
Class B |
| Radiated |
BS EN/EN55032 (CISPR32) |
Class A |
| Harmonic Current |
BS EN/EN61000-3-2 |
Class A |
| Voltage Flicker |
BS EN/EN61000-3-3 |
----- |
|
EMC IMMUNITY
|
BS EN/EN55035, BS EN/EN61000-6-2 |
| Parameter |
Standard |
Test Level / Note |
| ESD |
BS EN/EN61000-4-2 |
Level 3, 8KV air ; Level 2, 4KV contact |
| Radiated |
BS EN/EN61000-4-3 |
Level 3 |
| EFT / Burst |
BS EN/EN61000-4-4 |
Level 3 |
| Surge |
BS EN/EN61000-6-2 |
2KV/Line-Line 4KV/Line-Earth |
| Conducted |
BS EN/EN61000-4-6 |
Level 3 |
| Magnetic Field |
BS EN/EN61000-4-8 |
Level 4 |
| Voltage Dips and Interruptions |
BS EN/EN61000-4-11 |
>95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods
|
|
OTHERS
|
MTBF |
462.9K hrs min. Telcordia SR-332 (Bellcore) ; 46K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION |
330*140*41mm (L*W*H) |
| PACKING |
2.9Kg; 4pcs/12.6Kg/1.25CUFT |
