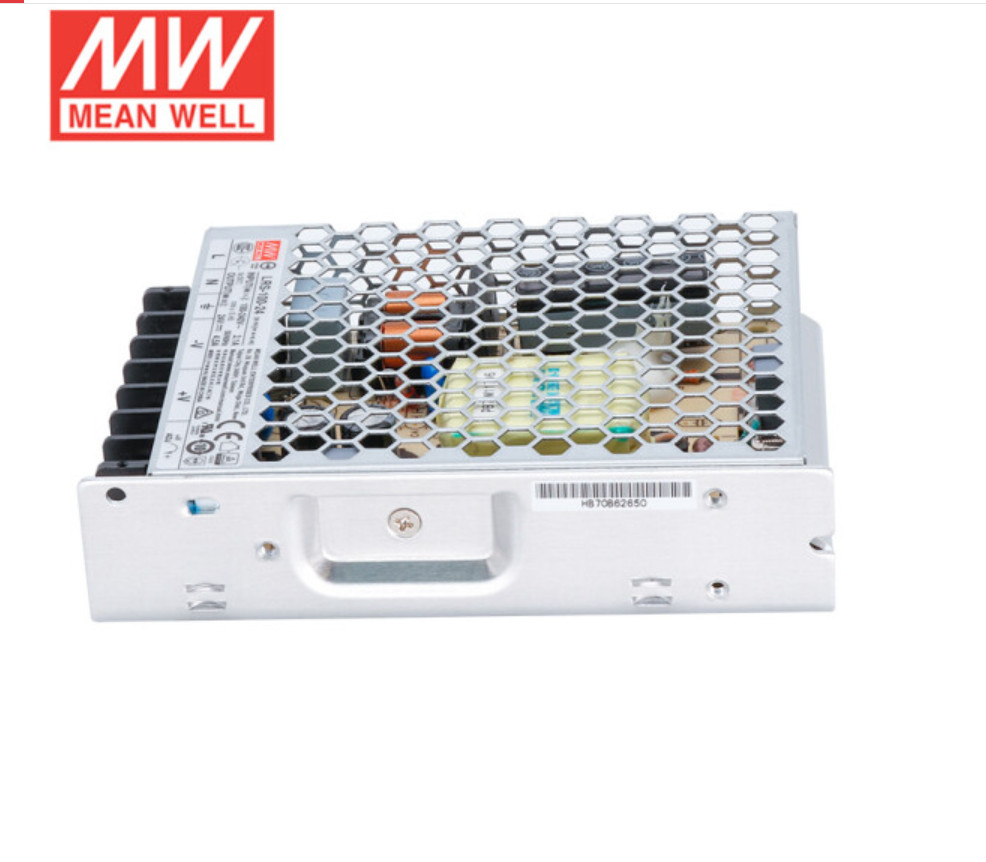

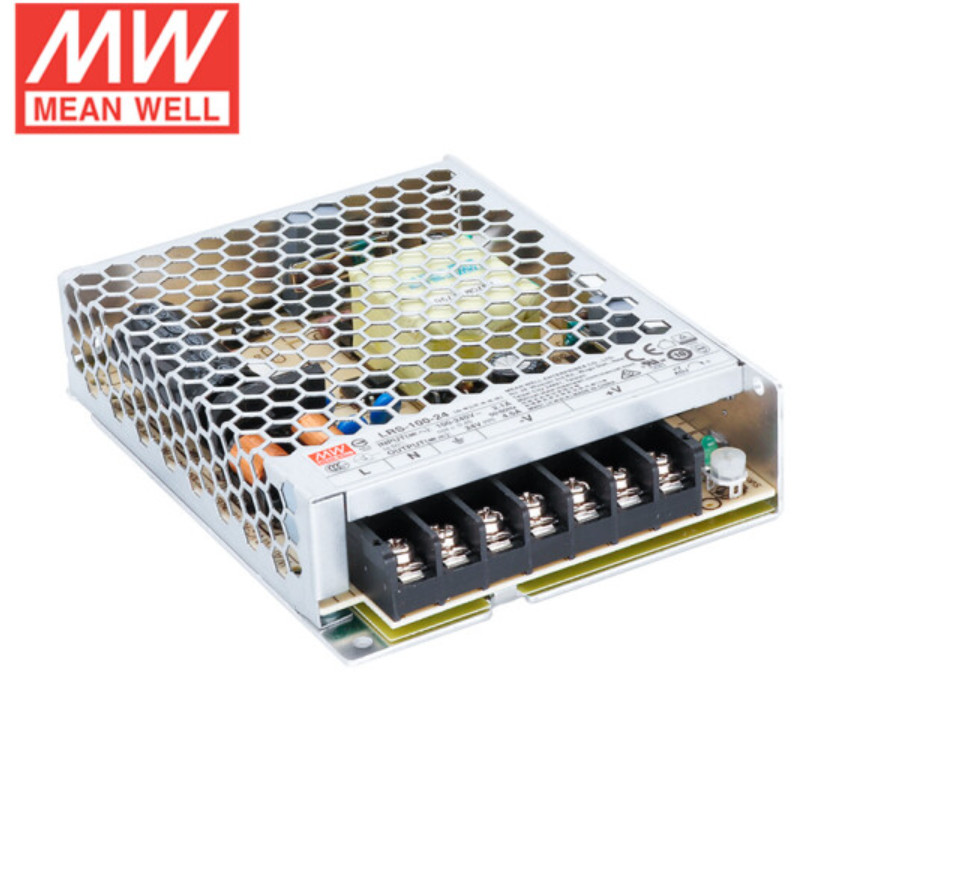

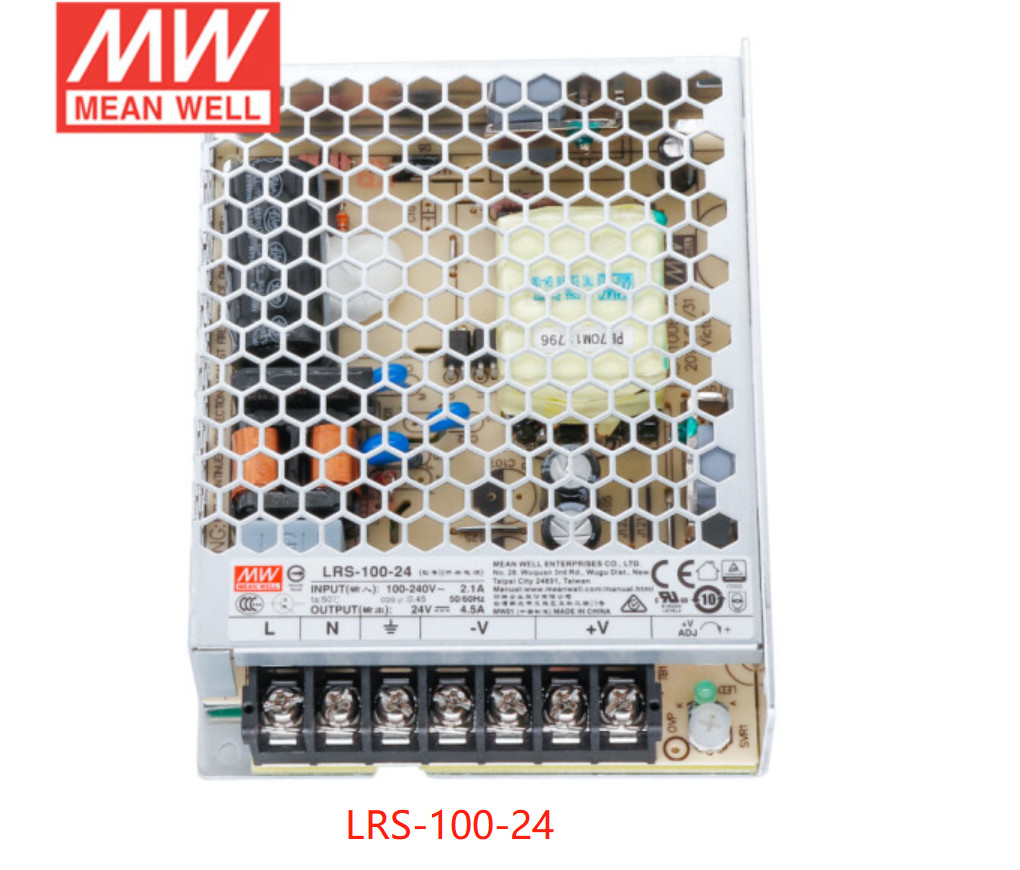

Mean Well LRS Series 100W Single Switching Power Supply LRS-100-12 12V/8.5A/100W 1U thick
Features :
- Compliance to IEC/BC/EN/EN60335-1(PD3) and IEC/BS EN/EN61558-1,2-16 for household appliance
- Operating altitude up to 5000 meters (Note.8)
- Withstand 5G vibration test
- LED indication for power on
- 100% full load burn in test
- 3 years warranty
Applications :
- Mechanical and electrical equipment
- Electronic instruments ,equipment or apparatus
- Household appliances
Description:
LRS-100 has the complete protection functions and 5G anti vibration capability.
It is complied with the international safety regulations.
LRS-100 series serves as a high price to performance power supply solutions for various industrial applications . .
Technical
| MODEL |
LRS-100-3.3 |
LRS-100-5 |
LRS-100-12 |
LRS-100-15 |
LRS-100-24 |
LRS-100-36 |
LRS-100-48 |
|
OUTPUT
|
DC VOLTAGE |
3.3V |
5V |
12V |
15V |
24V |
36V |
48V |
| RATED CURRENT |
20A |
18A |
8.5A |
7A |
4.5A |
2.8A |
2.3A |
| CURRENT RANGE |
0 ~ 20A |
0 ~ 18A |
0 ~ 8.5A |
0 ~ 7A |
0 ~ 4.5A |
0 ~ 2.8A |
0 ~ 2.3A |
| RATED POWER |
66W |
90W |
102W |
105W |
108W |
100.8W |
110.4W |
| RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
100mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
| VOLTAGE ADJ. RANGE |
2.97 ~ 3.6V |
4.5 ~ 5.5V |
10.2 ~ 13.8V |
13.5 ~ 18V |
21.6 ~ 28.8V |
32.4 ~ 39.6V |
43.2 ~ 52.8V |
| VOLTAGE TOLERANCE Note.3 |
±3.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
| LINE REGULATION Note.4 |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| LOAD REGULATION Note.5 |
±2.0% |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| SETUP, RISE TIME |
500ms, 30ms/230VAC 500ms,30ms/115VAC at full load |
| HOLD UP TIME (Typ.) |
55ms/230VAC 10ms/115VAC at full load |
|
INPUT
|
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) |
| FREQUENCY RANGE |
47 ~ 63Hz |
| EFFICIENCY (Typ.) |
84.5% |
86% |
88% |
88.5% |
90% |
90.5% |
91% |
| AC CURRENT (Typ.) |
1.9A/115VAC 1.2A/230VAC |
| INRUSH CURRENT (Typ.) |
COLD START 50A/230VAC |
| LEAKAGE CURRENT |
<0.75mA / 240VAC |
|
PROTECTION
|
OVER LOAD |
110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE |
3.8 ~ 4.45V |
5.75 ~ 6.75V |
13.8 ~ 16.2V |
18.75 ~ 21.75V |
28.8 ~ 33.6V |
41.4 ~ 48.6V |
55.2 ~ 64.8V |
| Protection type : Shut down o/p voltage, re-power on to recover |
|
ENVIRONMENT
|
WORKING TEMP. |
-30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
| VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
| OVER VOLTAGE CATEGORY |
Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters |
|
SAFETY & EMC
(Note 8)
|
SAFETY STANDARDS
|
UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1,BSMI CNS14336-1, EAC TP TC 004,S/NZS62368.1(by CB),KC K60950-1(for LRS-100-12/24 only), BIS IS13252(Part1):
2010/IEC 60950-1: 2005 approved
|
| WITHSTAND VOLTAGE |
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
| ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC EMISSION |
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only) |
| EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only) |
|
OTHERS
|
MTBF |
3348.9K hrs min. Telcordia SR-332 (Bellcore) ; 677.4Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION |
129*97*30mm (L*W*H) |
| PACKING |
0.34Kg ; 40pcs/14.6Kg/0.92CUFT |
