Name: AC/DC UHP Series Enclosed Switching Power Supply UHP-750 UHP-1500
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: UHP series
Price: 1 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Part No.: UHP Series

Brand: MEAN WELL

Capacity: 200W-2500W

Output Voltage: 3.3V-50V

Input Voltage: 90 ~ 264VAC

Frequency: 47 ~ 63Hz

Protection: 110~140% Rated Output Power

Dimension: 194*55*26mm (L*W*H)

Weight: 0.468kg;24pcs/12.2kg/

Pakcage: Cartons

Highlight:

Enclosed Switching Power Supply UHP-750

Enclosed Switching Power Supply UHP-1500

UHP Series UHP-750

Basic Infomation

Place of Origin: CN

Brand Name: MEAN WELL

Certification: CE

Model Number: UHP series

Payment & Shipping Terms

Packaging Details: cartons

Delivery Time: 8-10 weeks

Payment Terms: L/C,T/T

Supply Ability: 3000 pieces per month

Gallery

AC/DC UHP Series Enclosed Switching Power Supply UHP-750 UHP-1500

Product Description

AC/DC UHP Series Enclosed Switching Power Supply UHP-750 UHP-1500 0

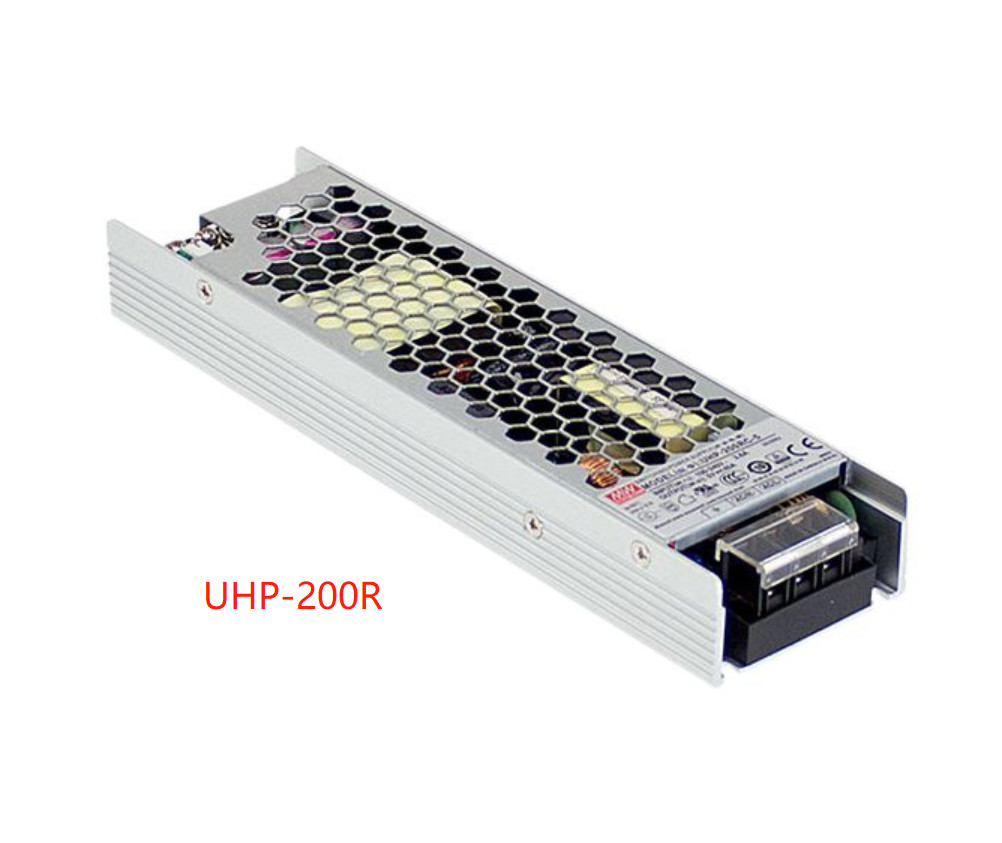

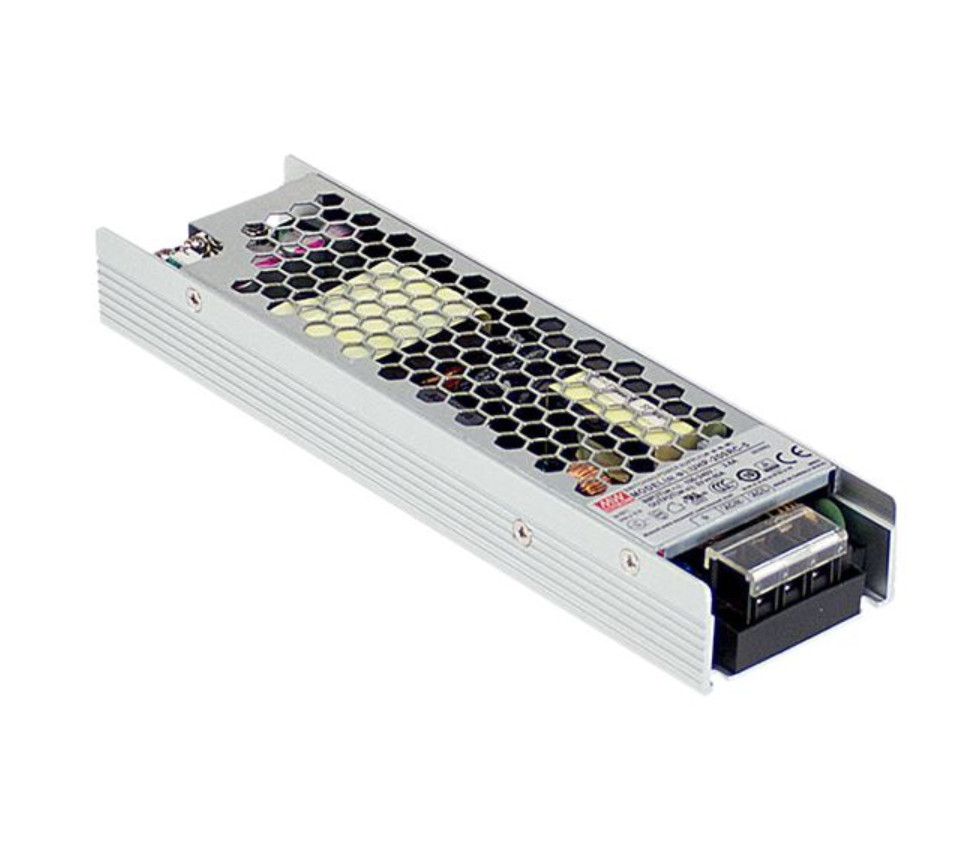

Mean Well Enclosed Switching Power Supply AC/DC UHP Series UHP-200(R) UHP-200A UHP-750 UHP-1500 UHP-2500

Wattage range: 200W~2500W

Features:

Slim and Low profile
Fanless design,free air convection
Built-in active PFC function150%
peak load capability(100ms)
High voltage output available for HV type
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter
LED indicator for power on

Parametets :

MODEL		UHP-200 -3.3	UHP-200 -4.2	UHP-200 -5	UHP-200 -12	UHP-200 -15	UHP-200 -24	UHP-200 -36	UHP-200 -48	UHP-200 -55
OUTPUT	DC VOLTAGE	3.3V	4.2V	5V	12V	15V	24V	36V	48V	55V
	RATED CURRENT	40A	40A	40A	16.7A	13.4A	8.4A	5.6A	4.2A	3.6A
	RATED POWER	132W	168W	200W	200.4W	201W	201.6W	201.6W	201.6W	201.6W
	RIPPLE & NOISE (max.) Note.2	150mVp-p	150mVp-p	200mVp-p	240mVp-p	240mVp-p	240mVp-p	240mVp-p	300mVp-p	360mVp-p
	VOLTAGE ADJ. RANGE	3.2~3.5V	3.6~4.4V	4.5~5.5V	11.4~12.6V	14.3~15.8V	22.8~25.2V	34.2~37.8V	45.6~50.4V	45~58V
	VOLTAGE TOLERANCE Note.3	±2.0%	±2.0%	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.3%	±0.3%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP, RISE TIME	2000ms, 80ms/230VAC; 3000ms, 80ms/115VAC at full load;550ms/230VAC for 55V setup time
	HOLD UP TIME (Typ.)	10ms/230VAC 10ms/115VAC
INPUT	VOLTAGE RANGE Note.4	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF≥0.94/230VAC PF≥0.98/115VAC at full load
	EFFICIENCY (Typ.)	89%	90%	91%	93%	94%	94%	94%	94%	94%
	AC CURRENT (Typ.)	2.2A/115VAC 1.1A/230VAC
	INRUSH CURRENT (Typ.)Note.8	Cold start 40A/115VAC 80A/230VAC
	LEAKAGE CURRENT	<0.75mA / 240VAC
PROTECTION	OVERLOAD	110~140% rated output power
	OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	3.8~ 4.6V	4.62 ~ 5.46V	5.75 ~ 6.75V	13.2 ~ 15.6V	16.5 ~ 19.5V	26.4 ~ 31.2V	39.6 ~46.8V	52.8 ~ 62.4V	60 ~ 69V
	OVER VOLTAGE	Protection type :Shut down O/P voltage,re-power on to recover
	OVER TEMPERATURE	Protection type :Shut down O/P voltage or Hiccup mode, recovers automatically after temperature goes down
FUNCTION	DC OK SIGNAL(Optional)	Contact rating(max.):15Vdc/10mA resistive load
FUNCTION	REDUNDANT(Optional)	For parallel connection protection:For parallel applications, when one PSU can not work , the another one will be automatically enabled. This can prevent the system crash, and provide the reliability of system
ENVIRONMENT	WORKING TEMP.	-30 ~ +70℃(Refer to “Derating Curve")
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH non-condensing
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note.6)	SAFETY STANDARDS	UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V), CCC GB4943, EAC TP TC 004, BSMI CNS14336-1 approved, Design refer to BS EN/EN61558-1,-2-16
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH
	EMC EMISSION	Compliance to BS EN/EN55032,GB9254,Class B, BS EN/EN55014,BS EN/EN61000-3-2,-3,EAC TP TC 020,BSMI CNS13438
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level ,EAC TP TC 020
OTHERS	MTBF	2472.1 K hrs min. Telcordia SR-332 (Bellcore) ; 257.0K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	1945526mm (LWH)
	PACKING	0.468kg;24pcs/12.2kg/0.49CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance :includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltages. Please check the derating curve for more details. 5. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft) 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 7. R type efficiency slightly less than the Blank type, according to the actual measurement. 8. Inrush current parameter has 10% tolerance . ※ Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

AC/DC UHP Series Enclosed Switching Power Supply UHP-750 UHP-1500 2

AC/DC UHP Series Enclosed Switching Power Supply UHP-750 UHP-1500 3
