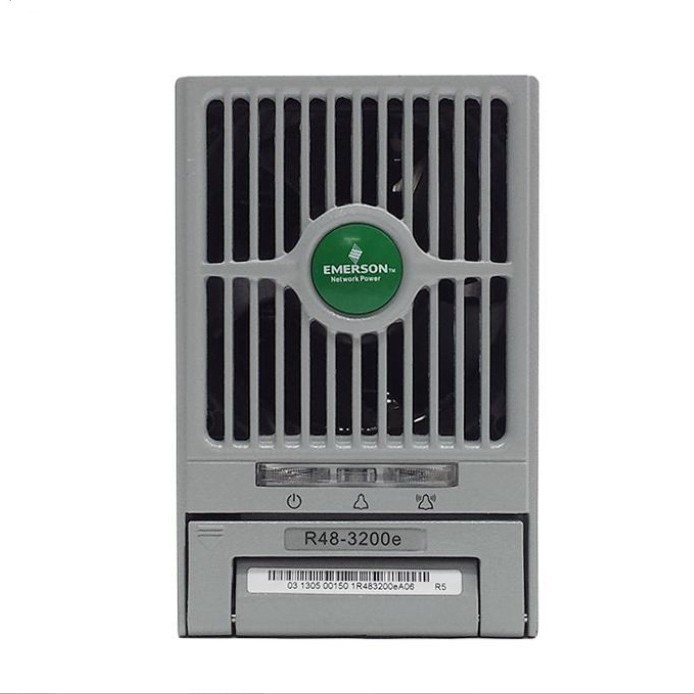

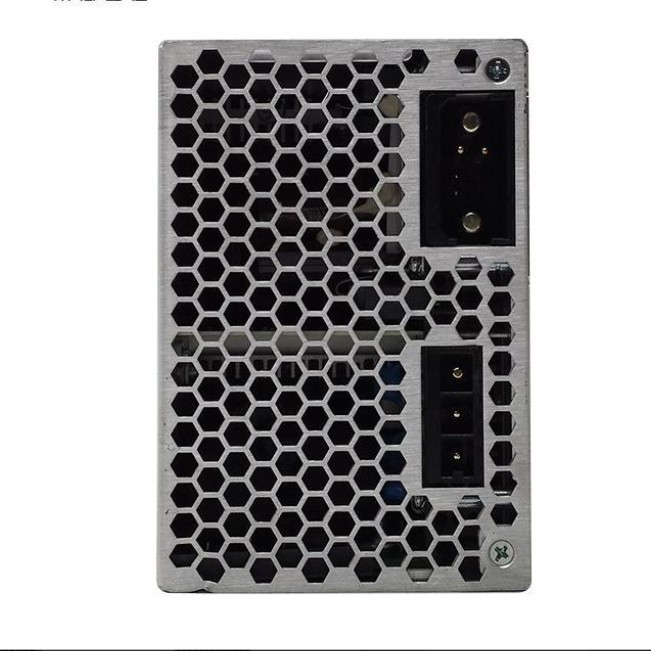

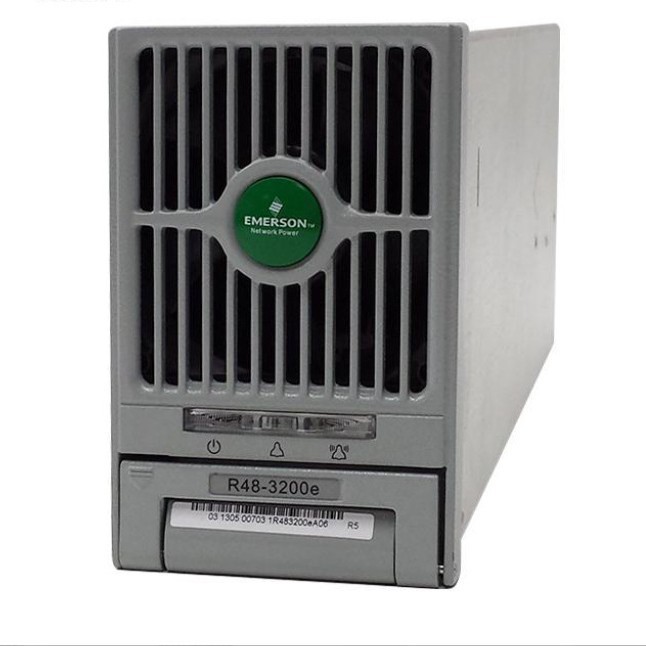

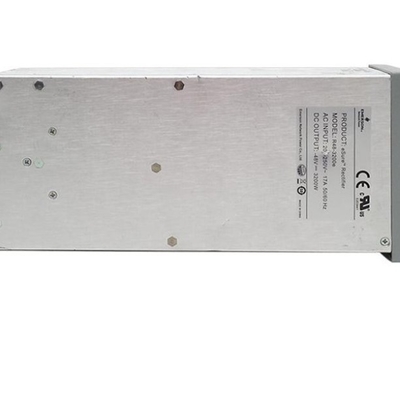

The R48-3200e rectifier converts standard AC supply voltages into stable nominal-48V DC voltage adjustable to the needs of the application. The R48-3200e is a constant power rectifier designed with the latest patented switchmode technology using DSP (Digital Signaling Processor) functionality for efficient operation. For a higher load capacity, rectifiers can be connected in parallel and intelligent control can be added with the help of a separate controller.
1. Hot pluggable facilitates future extensions
2. Wide input voltage range operates in the most demanding environments where input voltage changes
3. Wide temperature operating range (-40 C / -40 F to +75 / 167 F)-meets the harshest climatic environment requirements
4. High efficiency, up to 92%-reduces power consumption for lower operating costs
5. DSP (Digital Signaling Processor)- means fewer components, optimized operation and active load sharing for increased reliability
Model |
R48-3200E |
AC input |
200 - 250V ~17A 50/60HZ |
DC Output |
-48V 3200W |
Efficiency |
94% |
Dimensions (H*W*D)mm |
125*85*290 |
Weight |
<3kg |
Altitude |
<3000mm |
Equalizing Charging Temp.Coefficient |
built-in fan, forced convection |
