Home /Products/Rectifier Module/Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3

1
MOQ
1 USD
Price
Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: R48-3000E3
Usage: Inverter/ Convection
Output Power: 3000w
Output Type: Single Dc
Input Voltage: 200-250v
Output Voltage: 48v, -42-58v Dc
Output Frequency: 50/60hz
Weight: 4kg
Basic Infomation
Brand Name: Emerson
Certification: CE UL
Model Number: R48-3000E3
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 5-10 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000 pcs per month
Product Description

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 0

The 3000W high-efficiency eSureT rectifier (model R48-3000e3) is designed toconvert standard AC supply voltages into stable nominal -48V DC voltage that isadjustable to application needs. The R48-3000e3 is a constant power rectifier designedwith the latest patented switchmode technology, using DSP (Digital Signaling Processor)functionality for efficieny operation.
For a higher load capacity, rectifiers can be connected in parallel, and intelligent controlcan be added with the help of a separate controller.


Specification


AC INPUT
Input Voltage,Nominal 200 to 250 VAC
Input Voltage,Permitted Variation 85 to 300 VAC
Line Frequency 45 Hz to 65 Hz
Max Input Current 19A@176VAC
Power Factor >0.99 for 50%-100%load
THD(Total Harmonic Distortion) ≤5%for 50%-100%load at 208Vac,220Vac


DC     OUTPUT
Output Voltage,Adjustment Range -42 VDC to-58 VDC
Output Power 3000W Maximum
Output Power,Derated for Input Voltage See diagram
Output Current 62.5A@-48VDC
Output Current Limit Set Point O to 62.5 A
Peak Efficiency 96%@290VAC input and 53.5V/34A output
Temperature Derating Full output power up to+50℃ at input voltage range
:176-264VAC

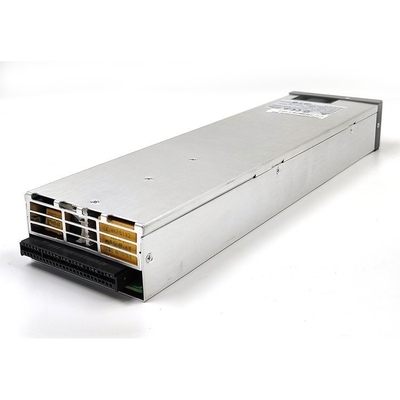

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 1

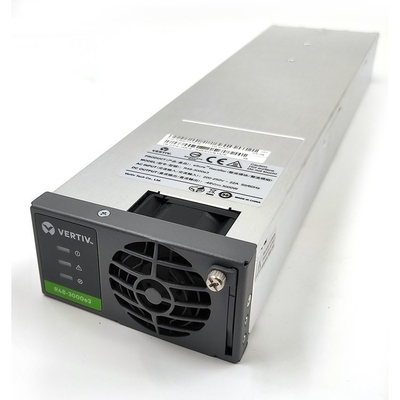

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 2

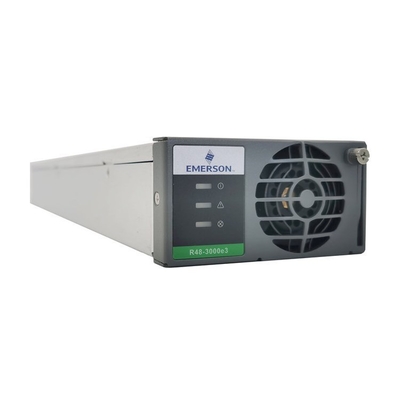

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 3

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 4

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 5



Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 6


Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 7

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 8
