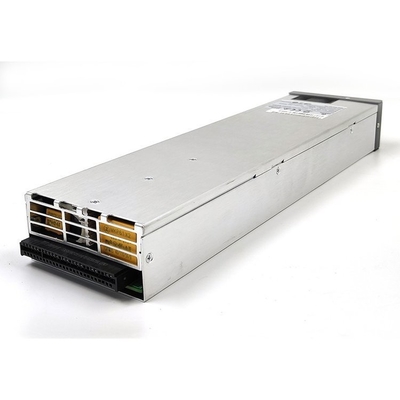

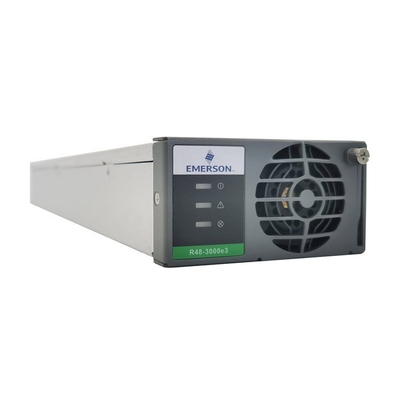

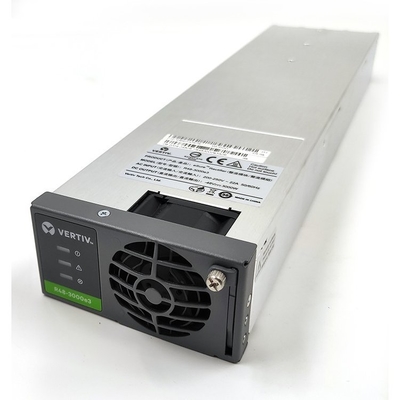

The 3000W high-efficiency eSureT rectifier (model R48-3000e3) is designed toconvert standard AC supply voltages into stable nominal -48V DC voltage that isadjustable to application needs. The R48-3000e3 is a constant power rectifier designedwith the latest patented switchmode technology, using DSP (Digital Signaling Processor)functionality for efficieny operation.
For a higher load capacity, rectifiers can be connected in parallel, and intelligent controlcan be added with the help of a separate controller.
Specification
| AC INPUT |
| Input Voltage,Nominal |
200 to 250 VAC |
| Input Voltage,Permitted Variation |
85 to 300 VAC |
| Line Frequency |
45 Hz to 65 Hz |
| Max Input Current |
19A@176VAC |
| Power Factor |
>0.99 for 50%-100%load |
| THD(Total Harmonic Distortion) |
≤5%for 50%-100%load at 208Vac,220Vac |
|
|
| DC OUTPUT |
| Output Voltage,Adjustment Range |
-42 VDC to-58 VDC |
| Output Power |
3000W Maximum |
| Output Power,Derated for Input Voltage |
See diagram |
| Output Current |
62.5A@-48VDC |
| Output Current Limit Set Point |
O to 62.5 A |
| Peak Efficiency |
96%@290VAC input and 53.5V/34A output |
| Temperature Derating |
Full output power up to+50℃ at input voltage range
:176-264VAC |
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
