Home /Products/Rectifier Module/BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500

BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500

5
MOQ
1USD
Price
BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500
Features Gallery Product Description Request A Quote
Features
Specifications
Model No.: BR1102500
Input Voltage Range: 90Vac To 265Vac
Frequency Range: 45Hz-65Hz
Max Input Current: 14.2A±10%@176Vac/2500W
Efficiency: ≥93%@220Vac 100% Load
Output Voltage: +110Vdc
Rate Current: 20A
Rate Capacity: 2500W(176Vac～264Vac) 1200W(90Vac～175Vac)
Highlight:

2500W Rectifier Module

,

265Vac Rectifier Module

,

176Vac Rectifier Module
Basic Infomation
Place of Origin: CHINA
Brand Name: BWitt
Model Number: BR110/2500
Payment & Shipping Terms
Packaging Details: 27*32*10.5
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: lakh
Product Description

BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 0

The rectifier module output current regulation and communication interruption are as follows:

The output current of the rectifier module can be adjusted according to the current command. The adjustment range of BR1102500 is 1A~20A, the adjustment range of BR2202500 is 1A~10A.

Communication fault more than 1 minute (Rectifier and Control monitor),A .Rectifier

module output Voltage automatic recovery default Voltage (BR1102500 is 117V, BR2202500 is 234V) and limited current

function not working;b.if the rectifier modules are controller by monitor and Power off, then

rectifier system will power on(if the rectifier fault, it can not be turned on again)



Specification

BR1102500
Input Feature

Input Single
Input Voltage Range 90Vac to 265Vac
Rate input Voltage 110Vac / 220Vac
Normal Input 100Vac to 240Vac
Frequency Range 45Hz-65Hz
Max Input Current 14.2A±10%@176Vac/2500W
Surge Current Compliant standard:ETSI300132-3
Efficiency ≥93%@220Vac 100% Load
PF ≥0.98@220Vac100% Load
Rate Capacity

2500W(176Vac～265Vac)

1200W(90Vac～175Vac)
Input fuse L Wire ,Fuse 30A

Output Feature

Output Voltage +110Vdc
Output Voltage Regulation 110±0.5Vdc
Output Range adjustable Range +90Vdc～+150Vdc
Line regulation ±0.1%
Load regulation ±0.5%
Voltage precision ±0.5%
Current precision ±0.5%
ripple coefficient ≤0.5%
Output current deviation ≤±0.3A
Current Sharing(176Vac～264Vac,50%～100% load) ≤±5%
Min- Current 0A
Rate current 20A
Peaking current 22A
Tempe. coefficient(1/℃) ≤±0.02%
Rate Capacity

2500W(176Vac～264Vac)

1200W(90Vac～175Vac)

BR483000

Input Feature

Input Single
Input Voltage Range 90Vac to 265Vac
Rate input Voltage 110Vac / 220Vac
Normal Input 100Vac to 240Vac
Frequency Range 45Hz-65Hz
Max Input Current 14.2A±10%@176Vac/2500W
Surge Current Compliant standard:ETSI300132-3
Efficiency ≥93%@220Vac 100% Load
PF ≥0.98@220Vac100% Load
Rate Capacity

2500W(176Vac～265Vac)

1200W(90Vac～175Vac)
Input fuse L Wire ,Fuse 30A

Output Feature

Output Voltage +234Vdc
Output Voltage Regulation 220±1Vdc
Output Range adjustable Range +198Vdc～+286Vdc
Line regulation ±0.1%
Load regulation ±0.5%
Voltage precision ±0.5%
Current precision ±0.5%
Output current deviation ≤0.5%
Output current Regulate deviation ≤±0.3A
Current Sharing(176Vac～264Vac,50%～100% load) ≤±5%
Min- Current 0A
Rate current 10A
Peaking current 11A
Tempe. coefficient(1/℃) ≤±0.02%
Rate Capacity

2500W(176Vac～264Vac)

1200W(90Vac～175Vac)

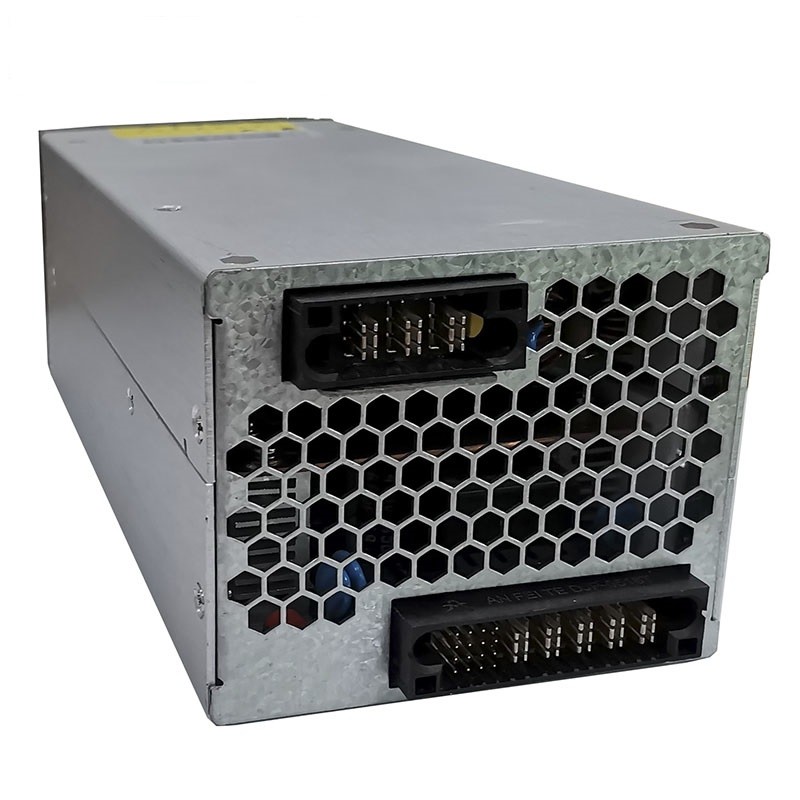

BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 1

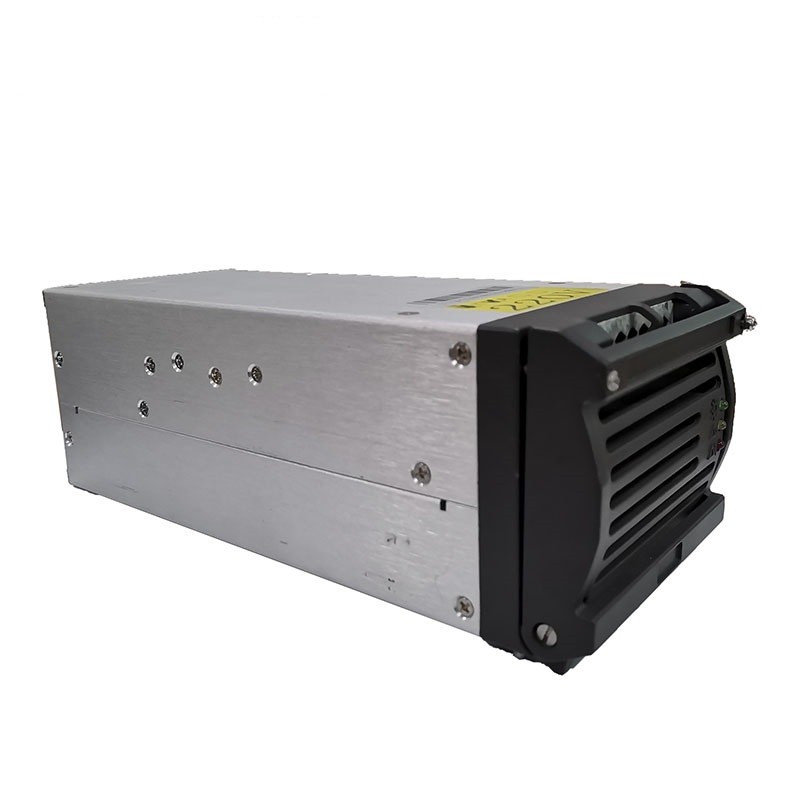

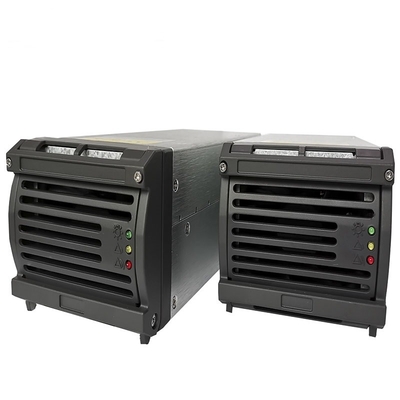

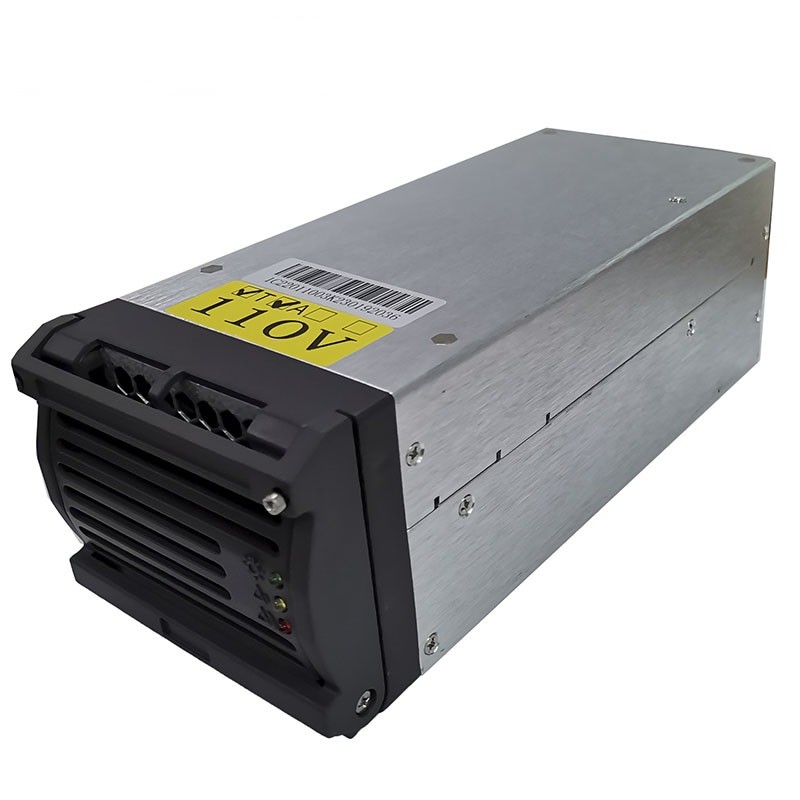

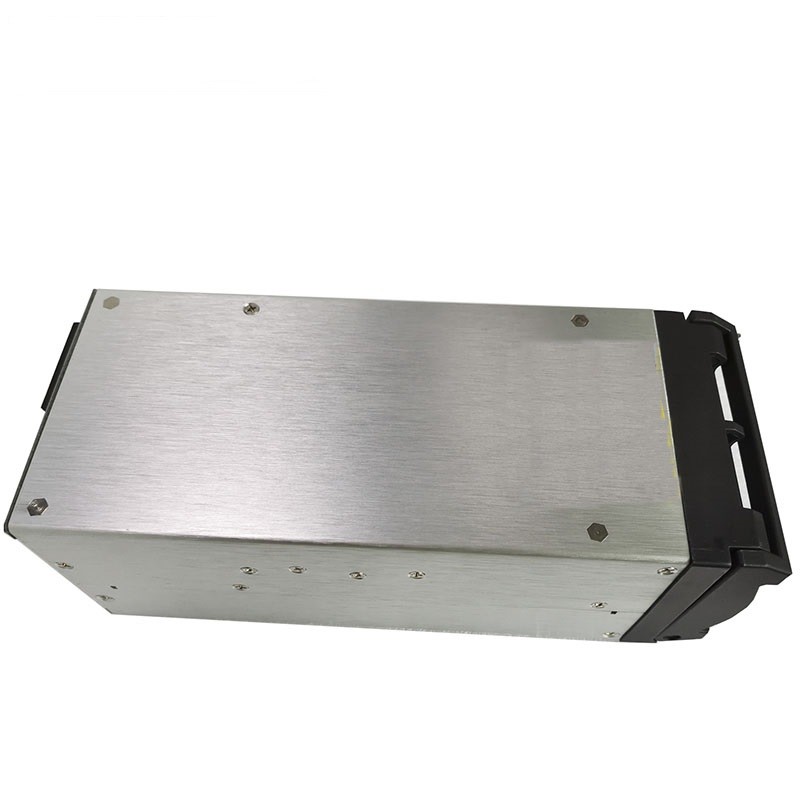

BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 2BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 3BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 4BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 5

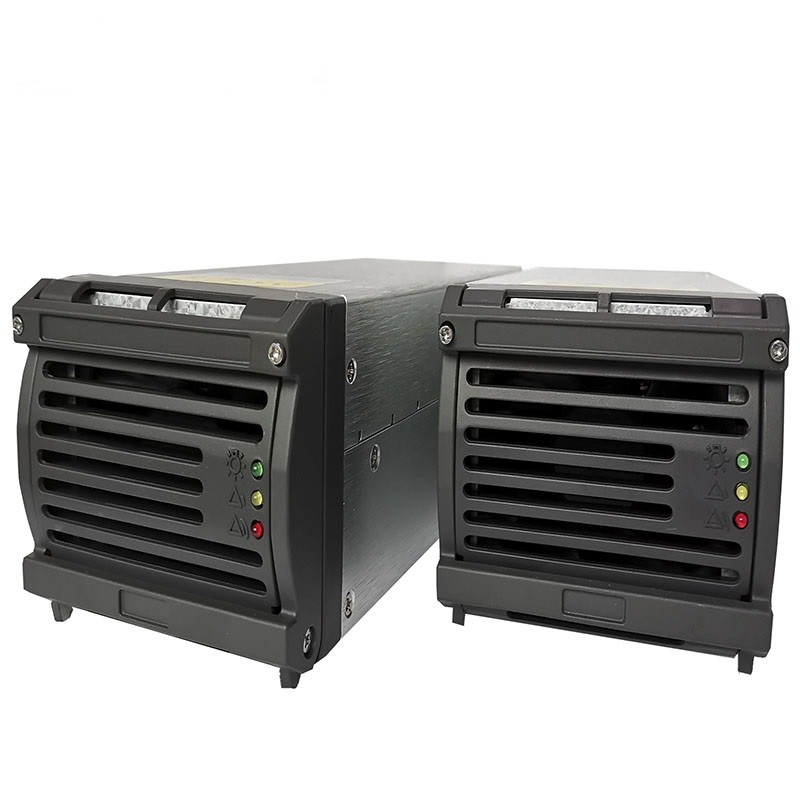

BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 6

BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 7BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 8

BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 9

BWT 110Vdc / 220Vdc Rectifier Module 2500W 176Vac-265Vac BR1102500 10
