BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000

5
MOQ
1USD
Price
BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000
Features Gallery Product Description Request A Quote
Features
Specifications
Model.No: BR241200
Input Voltage Range: 90Vac To 290Vac
 Frequency Range: 45Hz-65Hz
Max Input Current: 6.82A±10%@176Vac/1200W
 Surge Current: Compliant Standard：ETSI300132-3
 Efficiency: ≥90%@220Vac@ 220Vac 100% Load
 Output Voltage: +24Vdc
 Rate Current: 40A
Highlight:

90Vac To 290Vac Rectifier Module

,

48Vdc Rectifier Module

,

24Vdc Rectifier Module
Basic Infomation
Place of Origin: CHINA
Brand Name: BWitt
Model Number: BR241800
Payment & Shipping Terms
Packaging Details: 27*32*10.5
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: lakh
Product Description

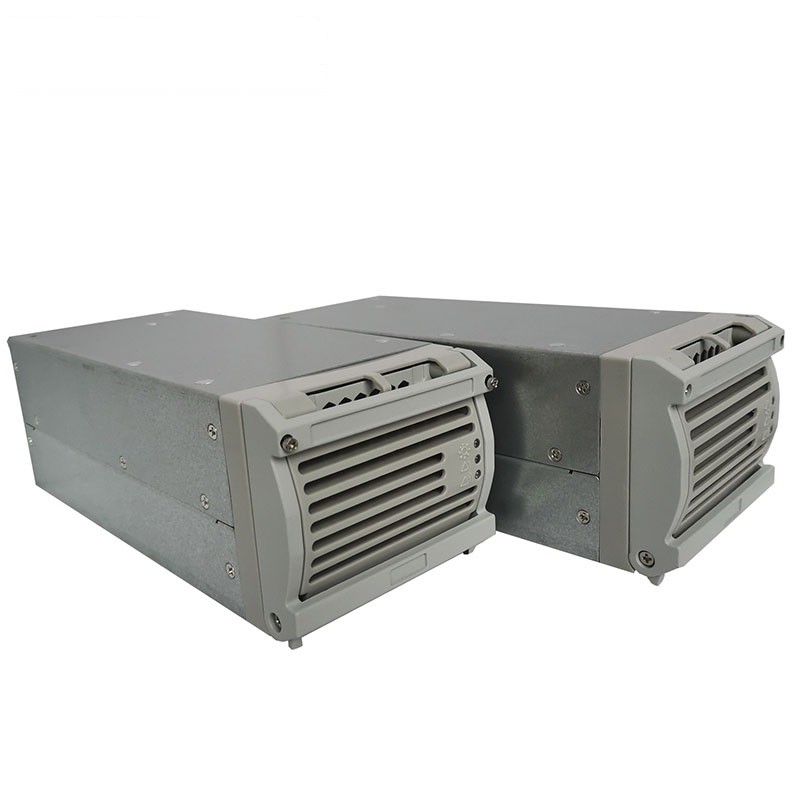

BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 0

The rectifier module output current regulation and communication interruption are as follows:

The output current of the rectifier module can be adjusted according to the current command. The adjustment range of BR483000 is 1A~50A, the adjustment range of BR241800 is 1A~60A.

Communication fault more than 1 minute (Rectifier and Control monitor),A .Rectifier

module output Voltage automatic recovery default Voltage (BR483000 is 53.5V, BR241800 is 24V) and limited current

function not working;b.if the rectifier modules are controller by monitor and Power off, then

rectifier system will power on(if the rectifier fault, it can not be turned on again)



Specification

BR241200
Input Feature

Input Single input
Input Voltage Range 90Vac to 290Vac
Rate input Voltage 110Vac / 220Vac
Normal Input 100Vac to 240Vac
Frequency Range 45Hz-65Hz
Max Input Current 6.82A±10%@176Vac/1200W
Surge Current Compliant Standard:ETSI300132-3
Efficiency ≥90%@220Vac@ 220Vac 100% load
PF ≥0.99@220Vac/40A
Leakage Current <3.5mA@264Vac
Input Fuse L Wire ,Fuse 25A
Max input Voltage 310Vac

Output Feature

Output Voltage +24Vdc
Output Voltage Regulation +24±0.1Vdc
Output Range adjustable Range +21Vdc～+29Vdc
Load sharing(50%～100% Loading) ≤±5%
Line regulation ±0.1%
Load regulation ±0.5%
Voltage precision ±0.6%
Min-current 0A
Rate current 40A
Peaking current 44A
Tempe. coefficient(1/℃) ≤±0.02%
Rate Capacity

1200W(150Vac～290Vac)

600W(90Vac～150Vac)

BR483000
Input Feature

Input Single-phase two-wire
Input Voltage 90Vac to 290Vac,90Vdc to400Vdc
Rate input Voltage 220Vac
Frequency Range 45Hz-65Hz
Max input Current 18.5A±10%@155Vac/50A
surge current Compliant standard :ETSI300132-3
Efficiency ≥93%@220Vac 100% Load
PF ≥0.99@220Vac/50A
Leakage current <3.5mA@264Vac
Rate capacity

2900W(154Vac～290Vac)(215Vdc-400Vdc)

1200W(90Vac～154Vac)(90Vdc-215Vdc)
Input Protection L line ,Fuse 25A
Max Input Voltage 320Vac(Power cannot be damaged)

Output Feature

Output Voltage +53.5Vdc
Output Default Voltage +53.5±0.1Vdc
Output Voltage adjust range +43Vdc～+58Vdc
Efficiency

≥92%@220Vac 50-100% Load

≥93.2%@peak value
Load sharing(50%～100% Loading) ≤±5%
Line Regulation ±0.1%
Load Regulation ±0.5%
Voltage Regulated Accuracy ±0.6%
Min- Current 0A
Rate Current 50A
Peaking Current ≤55A
Tempe. coefficient(1/℃) ≤±0.02%

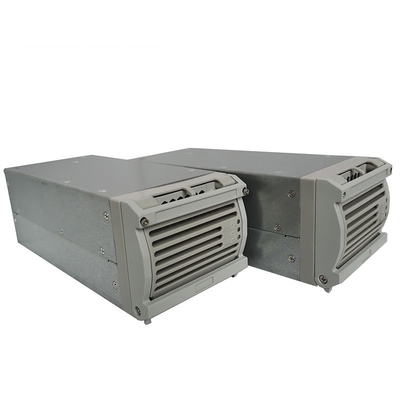

BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 1

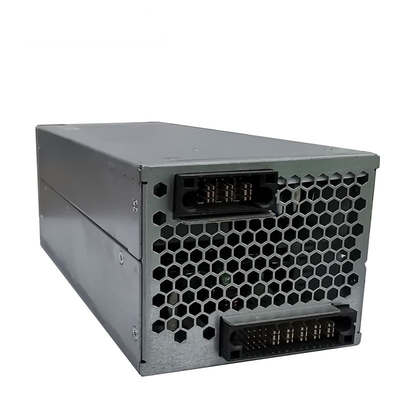

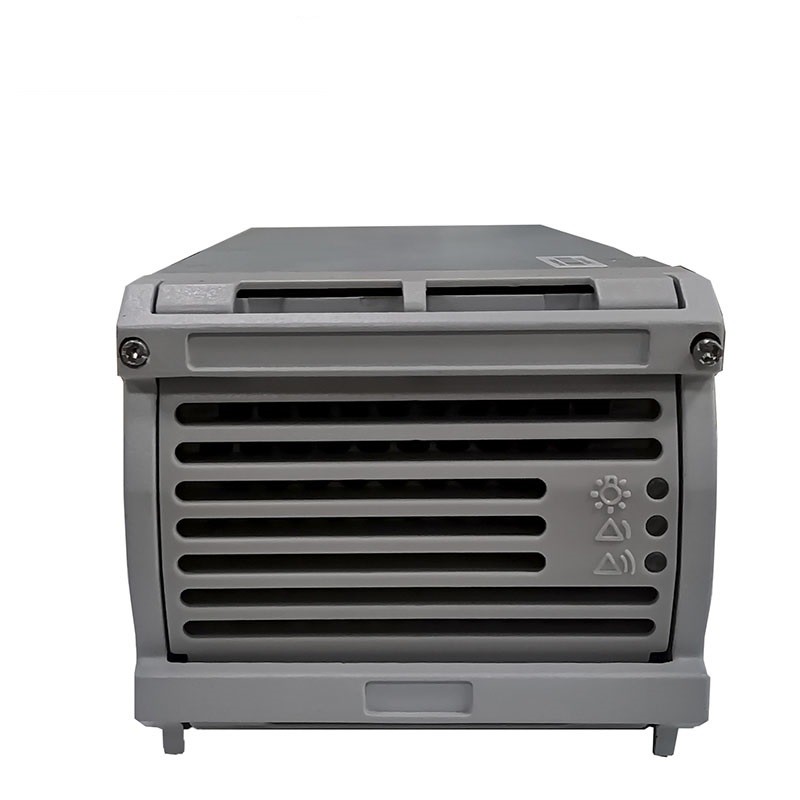

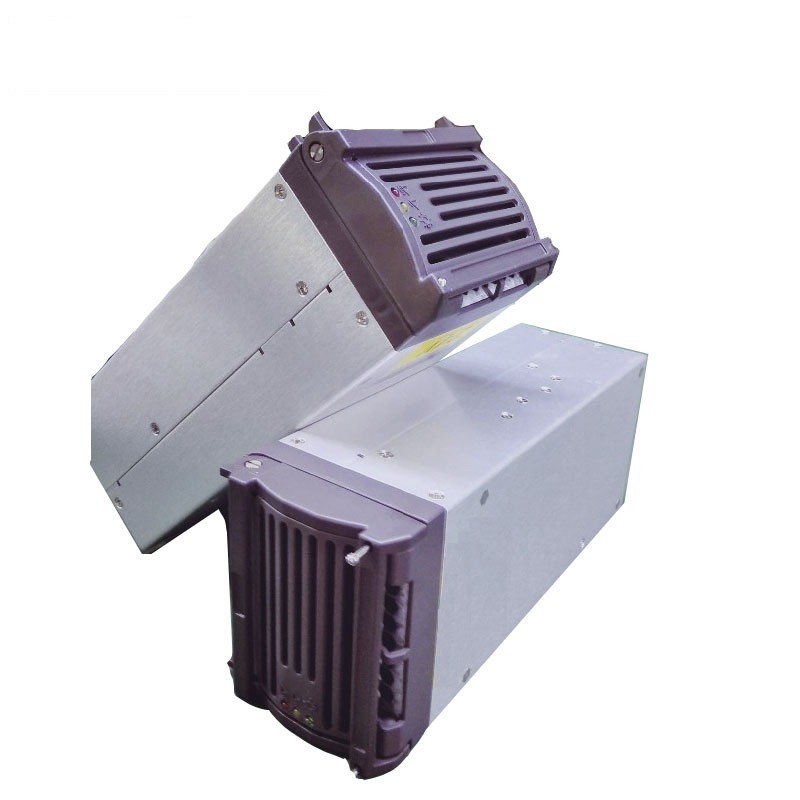

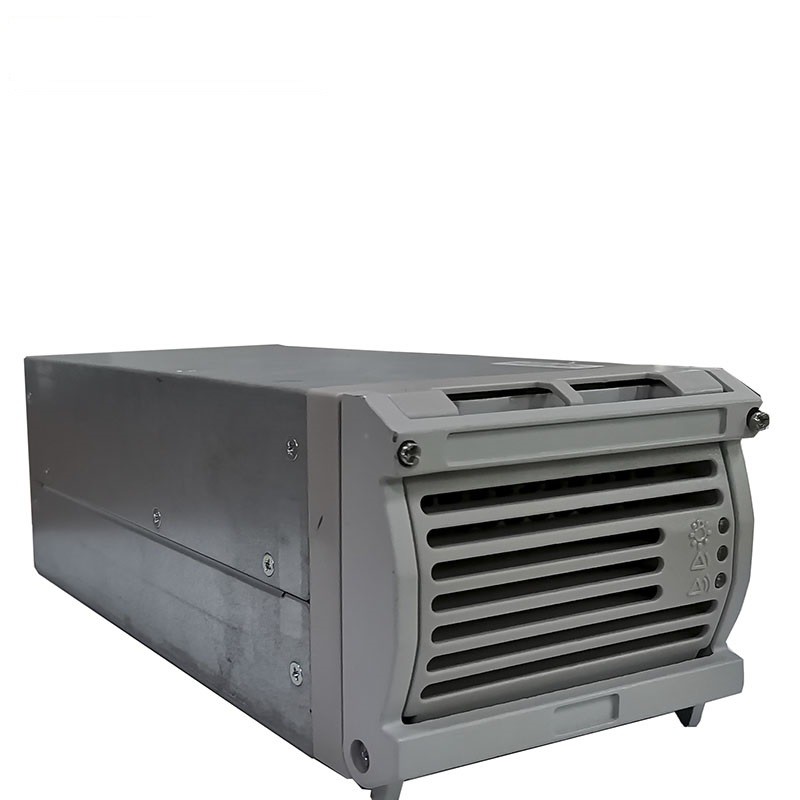

BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 2BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 3BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 4BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 5



BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 6

BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 7BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 8

BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 9BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000 10
