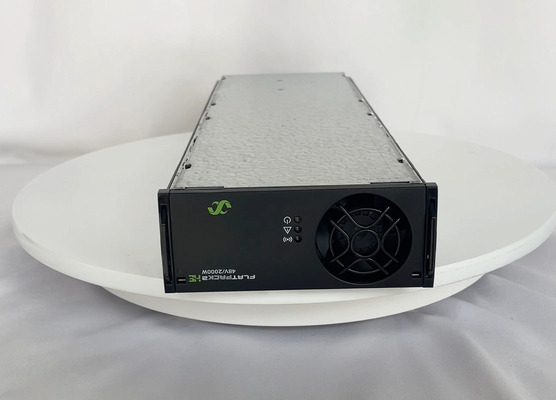

Eltek 241115.105 Flatpack2 2000W FP2 48/2000HE 48Vdc 2000W AC DC Module High Effciency
- Model number: Flatpack2 48V 2000W
- Output voltage: 48V nominal
- Continuous output power: 2000 watts
- Efficiency: Up to 96.5%
- Battery compatibility: Designed for use with 48V lithium-ion battery packs
- Cooling: Forced air cooling with onboard fan
- Connections: Screw terminal block connections for battery positive and negative, as well as load positive and negative
- Input voltage range: 40-58V
- Foldable design: Module can be folded for compact storage/transport when not in use
- Protection: Overload, over voltage, under voltage, over temperature protection built-in
- Environmental rating: IP65 rated for dust and water resistance
- Dimensions: 337 x 290 x 133 mm (unfolded)
- Weight: Approximately 6.6 lbs (3 kg)
The Flatpack2 48V 2000W is a high power, high efficiency AC-DC converter module designed for use in electric bicycles,
scooters, and other commercially used electric vehicles. It allows flexible mounting and installation due to its foldable design.
Parameters :

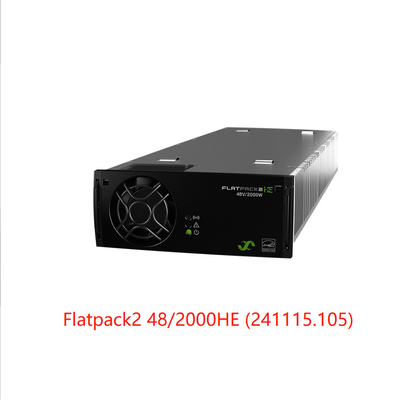

| Product Name | Flatpack2 48/2000 HE |
| Part No. | 241115.105 |
| AC input |
| Voltage | 85-300vAC (nominal 185-275Vac) |
| Frequency | 45 /66hz |
| Maximum Current | 11.6a max atnomial input and full load |
| Power Factor | ＞0.99 at 50% load or more |
| Input Proection | Varistors for transletn ; Mains fuse in both lines ; Disconnect |
| DC output |
| Voltage | 53.5Vdc (Range:43.5-57.6Vdc) |
| Output power | 2000W at nominal input |
| Maximum current | 41.7A at 48Vdc |
| Current Sharing | ±5% of max current from 10% to 100% |
| Output Protection | Overvoltage shundown ; Hot plug in ;Short circult ; High temperature protection |
1 What's your moq ?
we can order at least one piece, but our price depends largely on the quantity
2 Are your products all original package?
Yes, we can assure you that all the products are brand new and original
3 How do you guarantee your quality?
Strict quality control is performed in every procedure from material sourcing ,processing and testing to packing.
4 If there is any operation that cannot be done, can you provide technical guidance?
After you purchase the product, we provide technical guidance, such as video installation of the product, to ensure your smooth use
5 What kind of packing do you use to ensure the goods will be in good condition when they arrive?
We use cartons or wooden cases packed with shock-absorbent plastic foam inside each to ensure the goods are not damaged when they arrive.
6 How about your availability? Can I supply you if I place a large order?
You can rest assured that we have a strong supply capacity and can accept orders of all sizes. However, the delivery time of large orders may be longer
7 Does your company provide customized services?
S sorry, our company does not provide customized service for the time being.
8 Are video pictures taken on the spot? Are they different from real objects?
Our products are shot on the spot, and the pictures are no different from the real ones
9 In case of quality problem, can you provide maintenance,and Which side will pay the transportation expenses incurred?
If the product is unqualified,we will bear the freight cost within guarantee time ,but man-made sabotage exception.
10 What is your lead time for delivery?
The delivery time is calculated according to the quantity ladder, for example, the delivery time of one piece is seven days, and the delivery time of ten pieces is twenty days.
11 Do you have your own factory to process the products?
We do not have our own factory, we are huawei, Emerson, zte and other brands of agents,in the sales of products are very experienced.
12 Can you supply free sample?
Sorry, we don't provide samples for the time being
