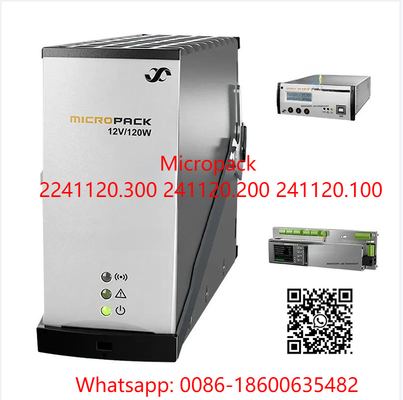

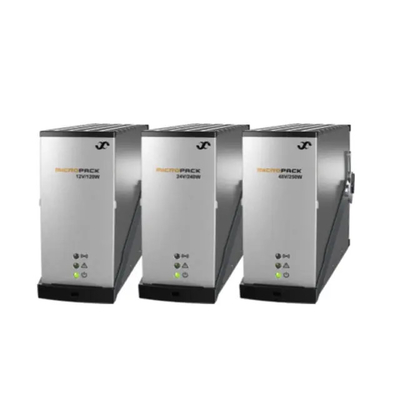

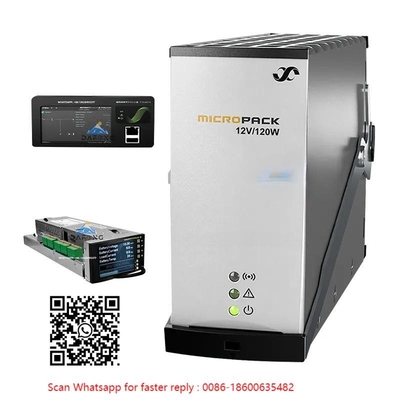

Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100

1
MOQ
99
Price
Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100
Features Gallery Product Description Request A Quote
Features
Specifications
Part No.: 241120.300
Part No. 2: 241120.200
Part No. 3: 241120.100
AC Input: 85-300Vac
DC Otuput: 53.5V
Capacity: 250W Or More
Effciency: 93.6% / >93%, 50-100% Load
Weight: 0.5 Kg
Highlight:

micropack eltek rectifier module

,

12v 120w eltek rectifier module

Basic Infomation
Place of Origin: china
Brand Name: eltek
Certification: CE
Model Number: 241120.300
Payment & Shipping Terms
Packaging Details: cartons
Supply Ability: 1000
Product Description



Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100 0



Top Future Technology Co.,ltd is a complete provider of telecom products and service s for IT, manufacturing facilities and telecommunications appliances, as a design ,supply in telecommute power supply, solar energy , data center and emergency service for enterprise . we have rich experience for both AC and DC applications ,we offer turn key solutions that simplify project execution and procurement with a single point of contract. Treat us as an extension of your Telecom and IT facilites departments.we are ready to help solve any type of power problem or complete a new power project together.
Our Mainly business scope:
24Vdc,48Vdc,60Vdc,110Vdc,220Vdc DC power system (integrated power system , indoor and outdoor cabinet)
48Vdc large system
AC UPS ;
Precision Air Conditioner ;
Spare parts for power system







AC INPUT RANGE
85 - 300 VAC/DC (Nominal 130 - 275 VAC/DC)
Output Voltage (adjustable range)
53.5 VDC (43.5 - 57.6 VDC)
Power (maximum) @ nominal input
250 W
Efficiency
93.6% / >93%, 50-100% load
Dimension
39.0 x 88.5 x 149mm (wxhxd) (1.54 x 3.48 x 5.87”)
Weigh
0.5 kg (1.1lbs)







Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100 1

Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100 2Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100 3Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100 4

Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100 5

Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100 6

Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100 7

Micropack Eltek Rectifier Module 12V/120W 24V/240W WOR 48V/250W CC 241120.300 241120.200 241120.100 8

 1 What's your moq ?

   we can order at least one piece, but our price depends largely on the quantity

2 Are your products all original package?

  Yes, we can assure you that all the products are brand new and original

3 How do you guarantee your quality?

Strict quality control is performed in every procedure from material sourcing ,processing and testing to packing.

4 If there is any operation that cannot be done, can you provide technical guidance?

After you purchase the product, we provide technical guidance, such as video installation of the product, to ensure your smooth use

5 What kind of packing do you use to ensure the goods will be in good condition when they arrive?

We use cartons or wooden cases packed with shock-absorbent plastic foam inside each to ensure the goods are not damaged when they arrive.

6 How about your availability? Can I supply you if I place a large order?

You can rest assured that we have a strong supply capacity and can accept orders of all sizes. However, the delivery time of large orders may be longer

7 Does your company provide customized services?

          Sorry, our company does not provide customized service for the time being.

8 Are video pictures taken on the spot? Are they different from real objects?

   Our products are shot on the spot, and the pictures are no different from the real ones

9 In case of quality problem, can you provide maintenance,and Which side will pay the transportation expenses incurred?

If the product is unqualified,we will bear the freight cost within guarantee time ,but man-made sabotage exception.

      10 What is your lead time for delivery?

The delivery time is calculated according to the quantity.
