Home /Products/Outdoor Telecom Cabinets/IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U

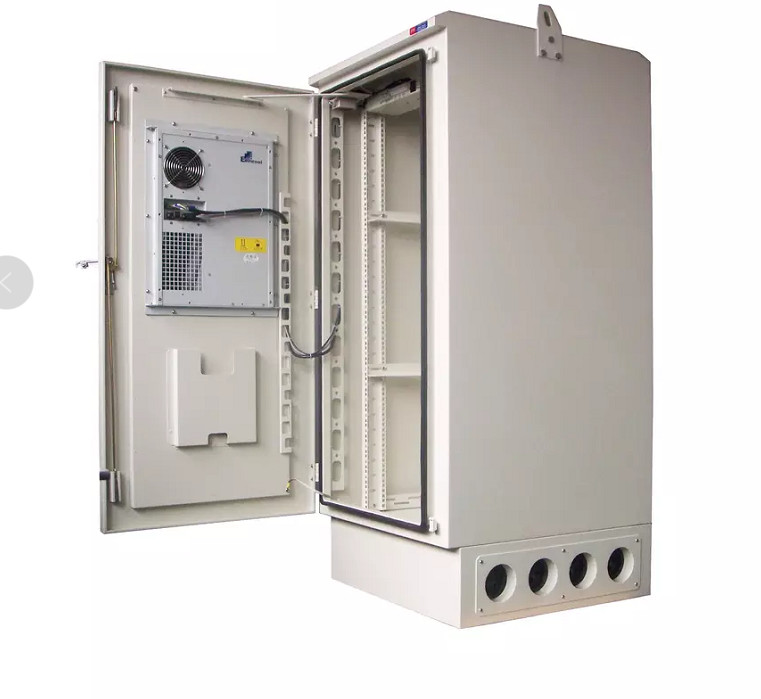

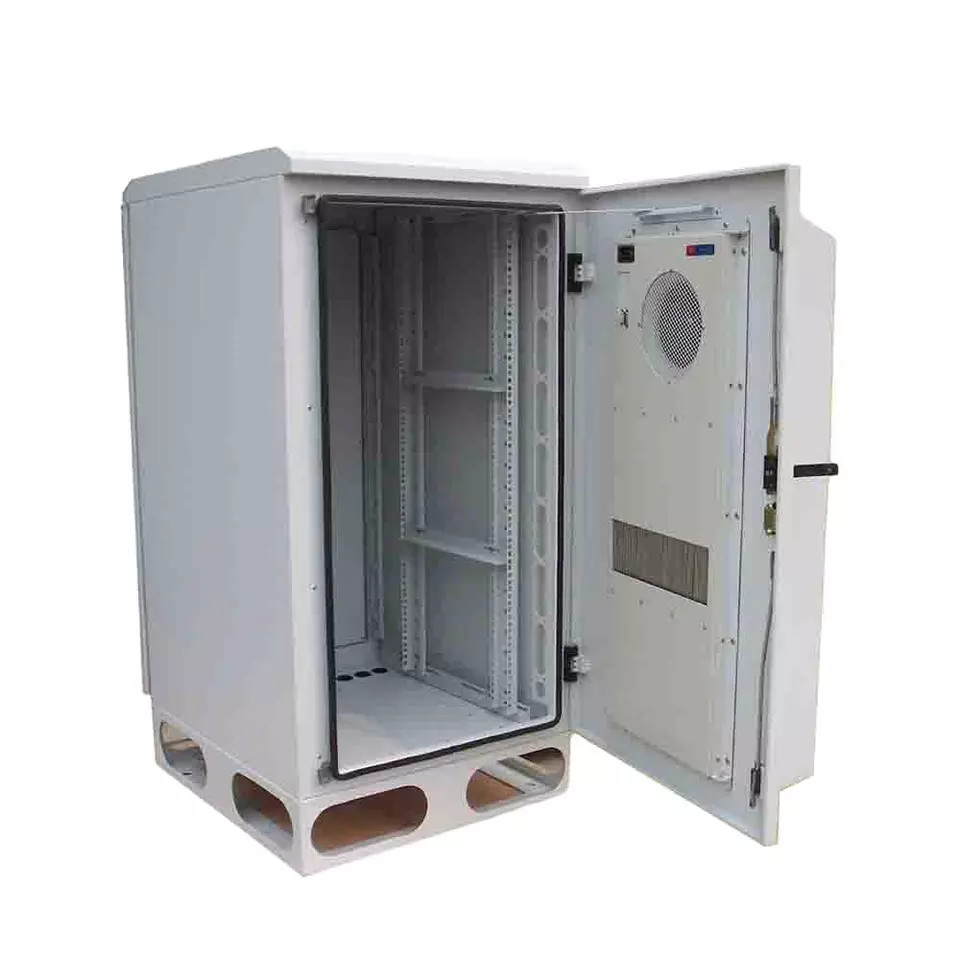

IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U

1
MOQ
1999 USD/SET
Price
IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U
Features Gallery Product Description Request A Quote
Features
Specifications
Brand: LANG JI
Product Name: Telecom Outdoor Cabinet
Type: Outdoor Telecom Enclosure
Height: 18U/22U/34U
IP Grade: IP55/ IP65
Applications: Radio Access Networks (2G/3G/4G/LTE/Wimax）
Materials: Galanvized Steel
Color: Light Grey Or Optional
Cable Glands: Bottom Cables Or Optional
Package: Wooden Pacakge
Highlight:

Outdoor Telecom Cabinets OEM 18U

,

weatherproof data cabinet OEM 22U 32U

,

IP55 IP65 weatherproof data cabinet
Basic Infomation
Place of Origin: CN
Brand Name: Langji
Certification: CE
Model Number: LJ-0130
Payment & Shipping Terms
Packaging Details: Wooden cartons
Delivery Time: 8-10 weeks
Supply Ability: 500 sets / month
Product Description

OEM 18U 22U 32U 42U Waterproof Metal Telecom Enclosure IP55 65 67 Telecom Equipment Cabinet OutdoorIP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 0



OEM 18U 22U 32U 42U Waterproof Metal Telecom Enclosure IP55 65 67 Telecom Equipment Cabinet Outdoor







Telecom Outdoor communication cabinet with AC or DC aircon or heat exchange for choice.



Outer size W750* D940 * H1358mm
Outer Size of wooden Box W840 * D1000 * H1500mm
Gross Weight 170KGS, Net Weight: 123KGS.
Inner Capacity 24U 23 inch(the inner depth space from front side to be 100mm free space,and the back side of the equipments also to have about 200mm free space)
Cooling System 100W/K heat exchanger
Protection Level IP55
Structure Side wall, door and top are belong to double wall structure, and with filter to insulate heat.
Material Main body is1.5mm galvanizing plate,Bottom Base is 2mm
galvanizing plate
Surface Treatment Painting outdoor epoxy powder(RAL7035)

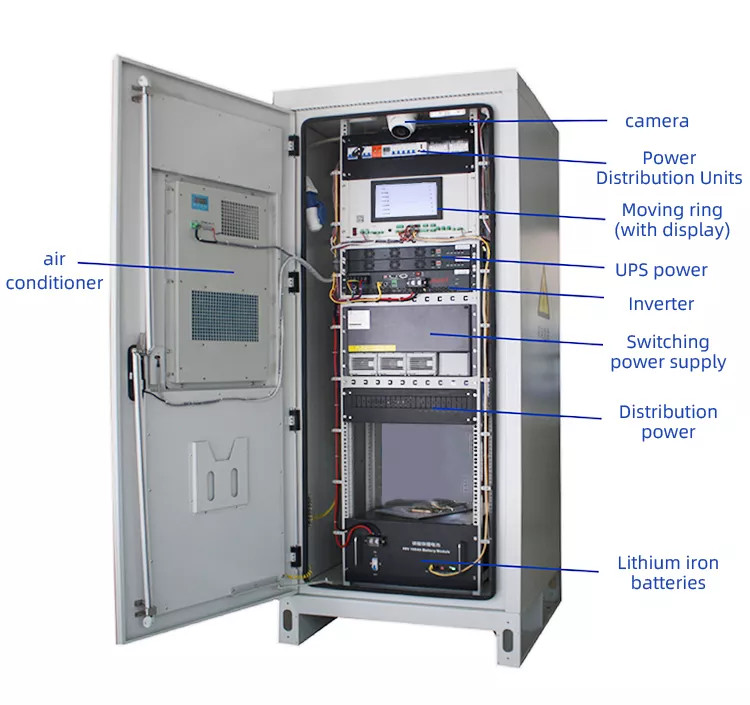

Choose Assembly (1). PDU
(2). Control System(It could control smog, water logging, temperature,
humidity and access.)

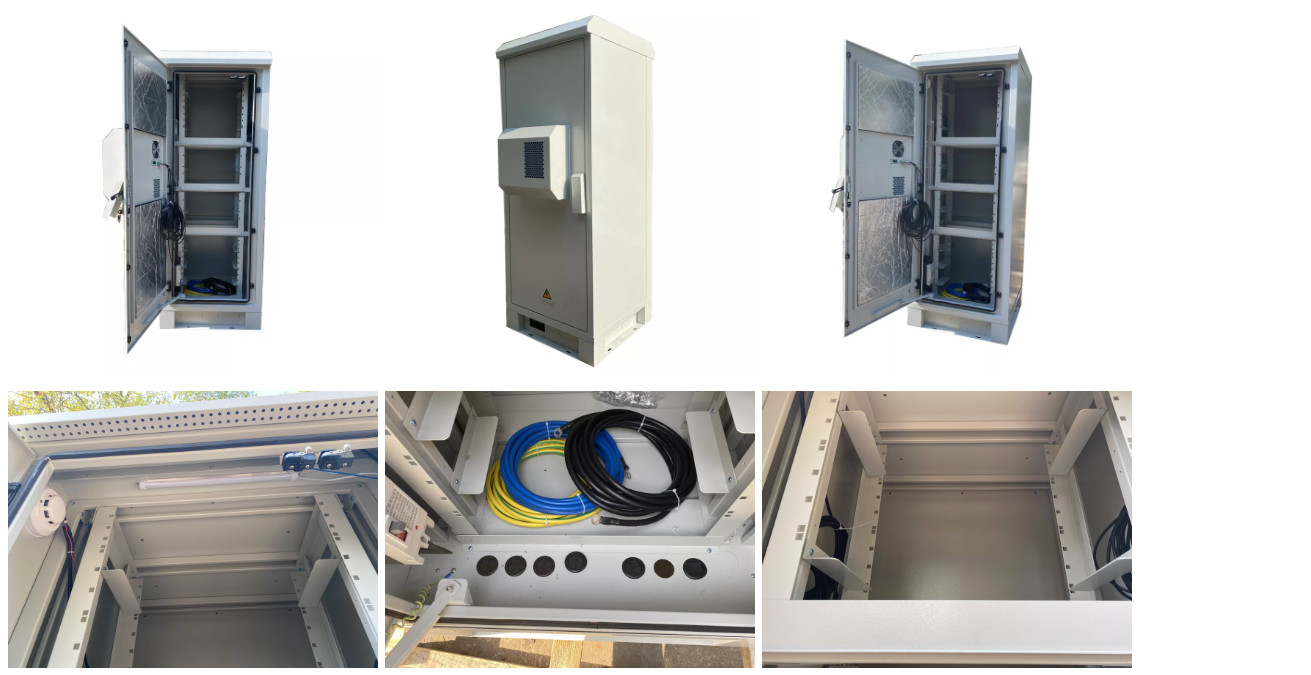

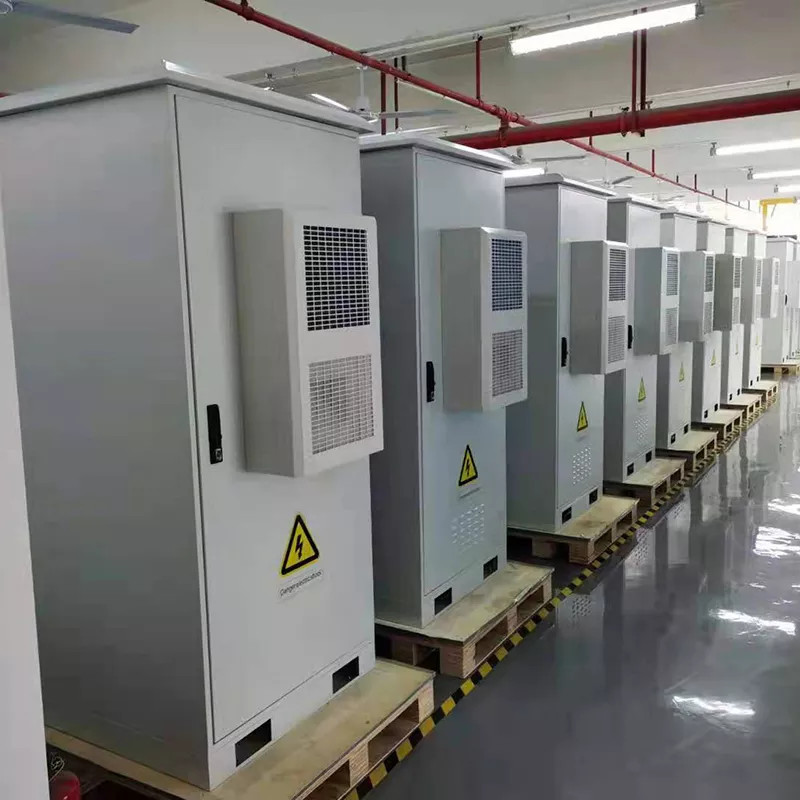

IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 1



IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 2IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 3IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 4



IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 5

IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 6IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 7













IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 8

IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 9IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 10



IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 11

IP55 IP65 Waterproof Outdoor Telecom Cabinets OEM 18U 22U 32U 12
