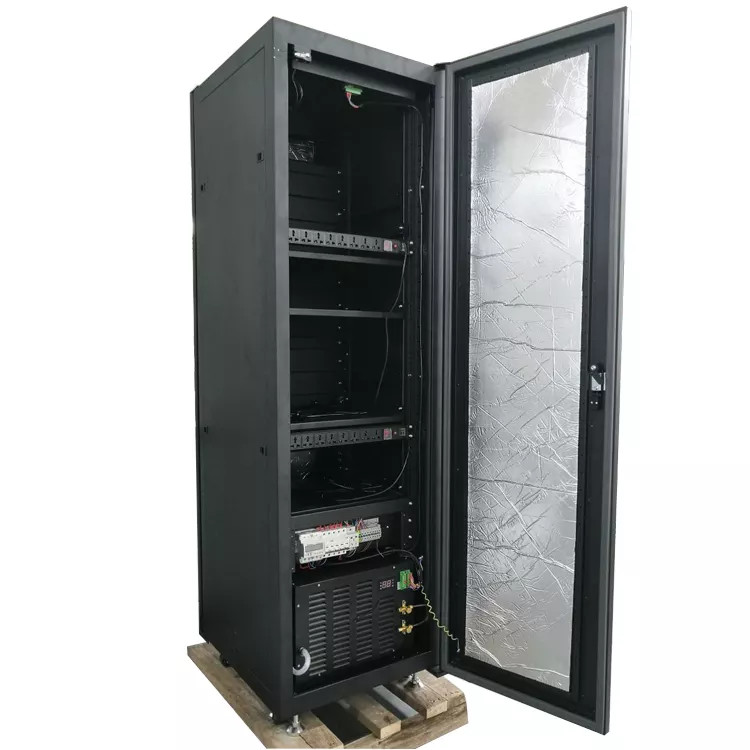

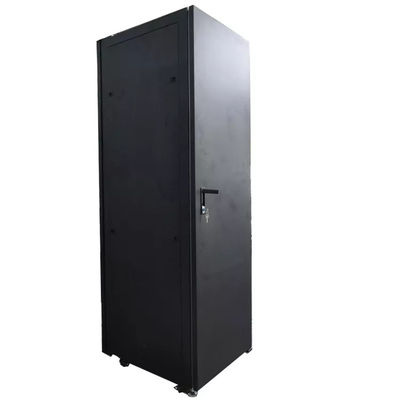

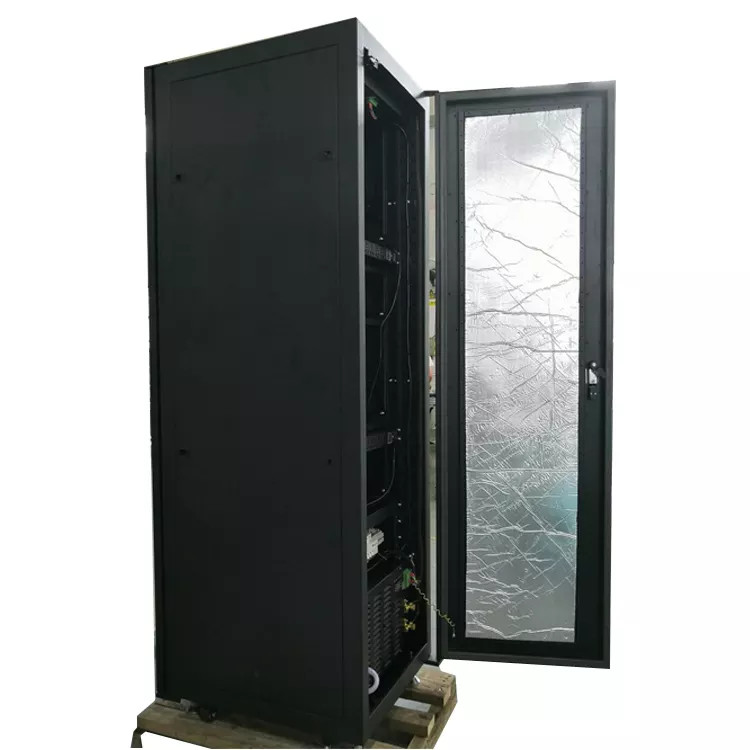

19 inch 42U 600 mm Depth Standing data center network Server Rack mount Cabinets with air conditioner

Product Description :

Attractive powder coat finish

Galvanised steel base

Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device

IP55 cabinet, walls and roof in double steel with high quality insulation

Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device

High performance Air-conditioning unit for heat removal

Door stopper to hold door open at service

Pass earthquake intensity 8 anti-seismic performance test

Technical Data Sheet:

Internal Dimension(H*W*D) :Standard 40U *800*800mm
External Dimension(H*W*D) : Standard 2100*900*900mm
Internal Capacity: 18U,22U,24U,27U 30U,32U,35U,37U,40U,42U etc (based on customers requirements)
Layout :battery compartment
Door : Anti-theft four-point outdoor cabinet lock. (support padlock)
Hinge :Embedded
Material: All materials are Galvanization plate ,insulation thickness 45mm
Material available: Aluminum,stainless steel,cold steel,galvanized steel etc (based on customers requirements)
Structure : Assembly
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Equipment Installation Method:19" rack
Ingress Protection: IP55
Noise Level :60-65dB

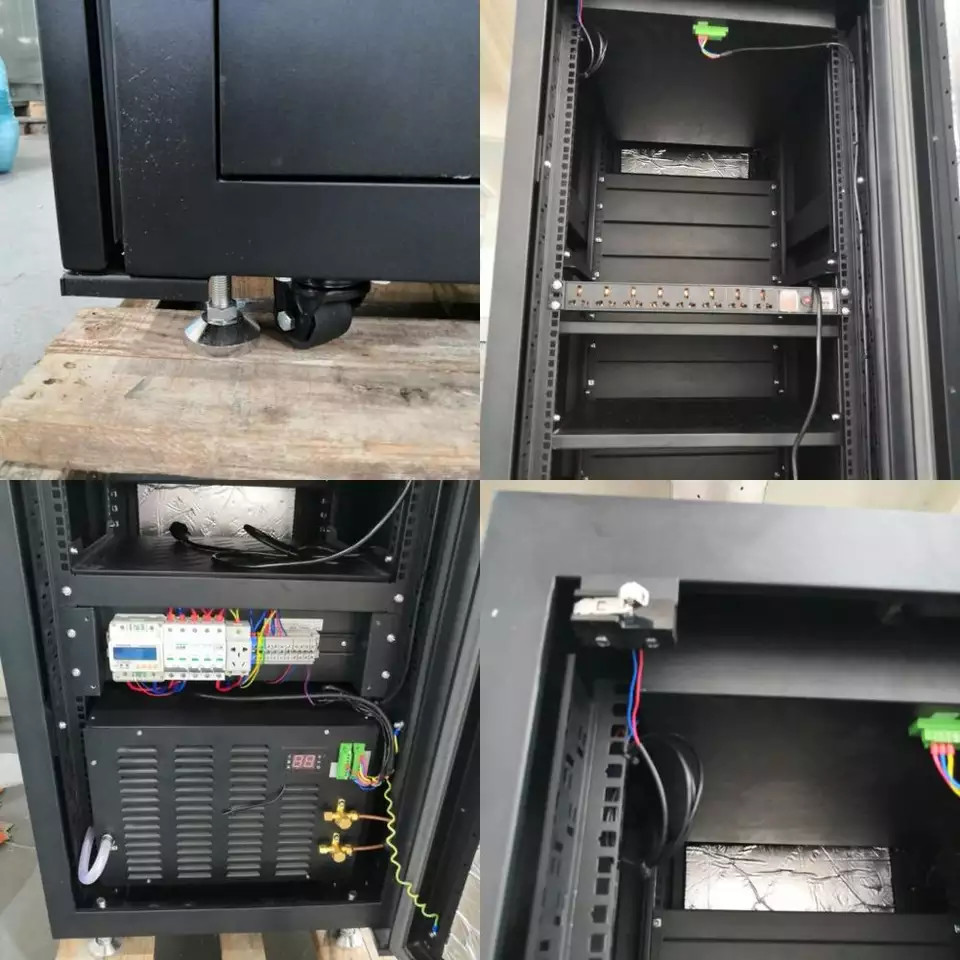

Temperature Control Cooling :600W, 48VDC air conditioner + DC48V fans
Lighting :LED lamp
48V LED lamps, it will turn on when the door is opened; it will turn off when the door is closed.
Accessory List(options)
