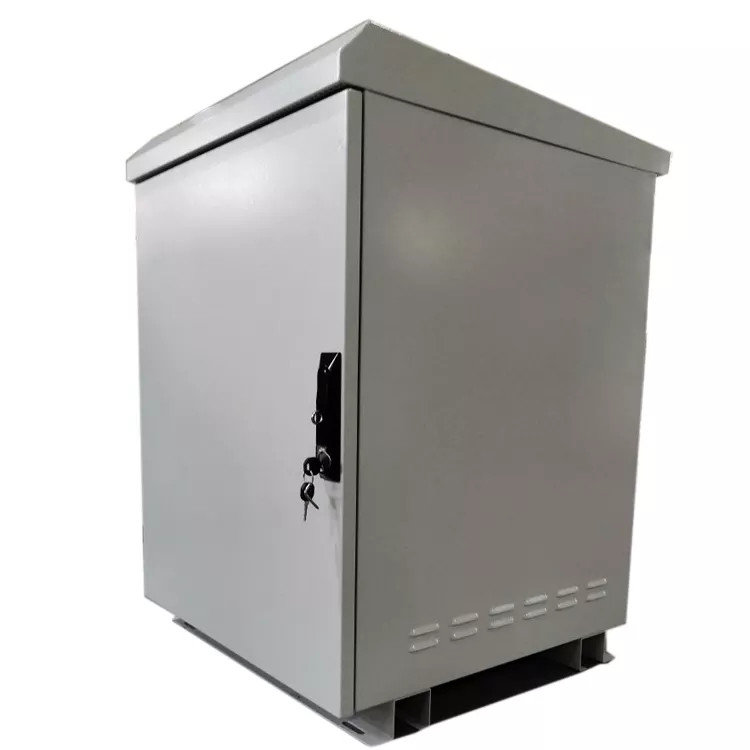

Small ip55 IP65 Waterproof Outdoor/indoor 19 rack telecom Electrical Enclosure lithium wall mount Cabinet 6u 9U 12U 14U 16U 18U
Product Features
· Attractive powder coat finish
· Galvanised steel base
· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
· IP65 cabinet, walls and roof in double steel with high quality insulation
· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
· High performance Air-conditioning unit for heat removal
· Door stopper to hold door open at service
· Pass earthquake intensity 8 anti-seismic performance test
Technical Data Sheet
| Place of Origin: Suzhou, China (Mainland) |
External Size H×W×D 800×650×650mm |
| internal capacity is based on customers requirements, Can do 10U,12,15U ,17U,22U ,etc |
Structure: single wall welded |
| Brand Name: Langji |

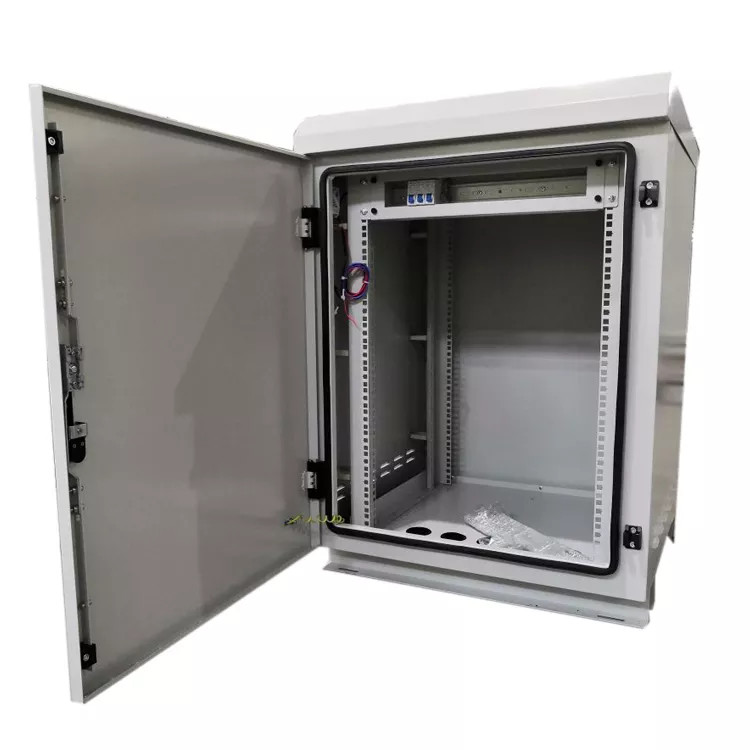

Cabinet Layout: one compartment, for installing 19” equipment |
| Product Name: Outdoor Telecom Equipment Cabinet |
Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, ISO14001 |
Protection Level: IP65 |

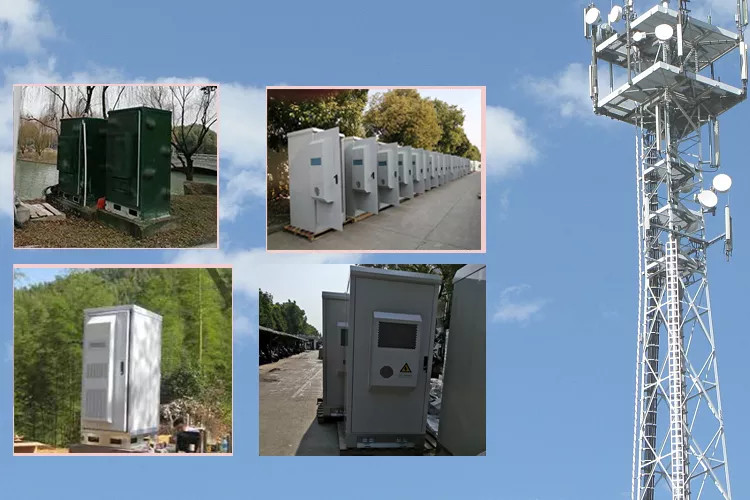

| Application: outdoor telecom base station, telecom tower |
Cable Entry: at cabinet bottom |
| Material: galvanized steel |
|
| Door: With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
Illumination: DC48V LED lamp |
| Color: grey (support custom made) |
Cooling: DC48V Fans |
| Coating: anti-corrosion outdoor powder coating |
Accessories Options: PDU |

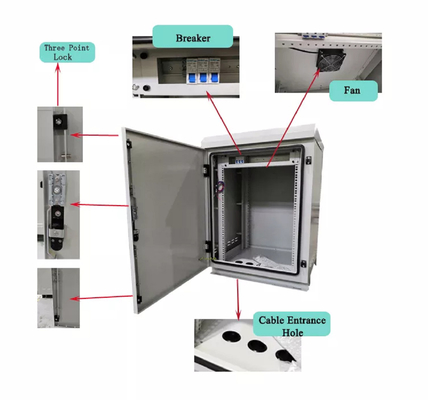

Structure
Internal Dimension(H*W*D) :Standard 40U *800*800mm or any customized size
External Dimension(H*W*D) : Standard 2100*900*900mm or any customized size
Width awailable:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth awailable:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any customized size
Internal capacity: 18U,22U ,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)
Layout :1 compartment for and equipment cabinet
Door :With one front door, with special lock for outdoor cabinet (support padlock)
Hinge :Embedded
Material: Material left ,right and back part are color steel plate,other parts are Galvanization plate ,insulation thickness 45mm,insulation material is EPS.
Thermal insulation performance:Thermal Conductivity<0.472W/(m2.k)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
Structure : Assembly
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Equipment Installation Method:19" rack
Ingress Protection: IP55
Noise Level :60-65dB
Temperature Control Cooling :1500w 220VAC air conditioner
way of communication:RS485
| Accessory List(options) |
| No. |
Item |
Specifications |
| 1 |
Fan |
DC48V, START WORK AT 35°C |
| 2 |
Power Distribution (PDU) |
GRADE B LIGHTNING PROOF
AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4;
DC OUTPUT: 16A/1P*4 or customer requirement |
| 3 |
Environment Monitoring Unit |
48VDCCommunication port: RS485, TCP/IP, SNMP optional |
| 4 |
Door Sensor |
Monitor door open status inside cabinet and provide real time alarm. |
| 5 |
Water Sensor |
Monitor water status inside cabinet and provide real time alarm. |
| 6 |
Tilt & Shock Sensor |
Monitor shock status inside cabinet and provide real time alarm. |
| 7 |
Temperature & Humidity Sensor |
Monitor temperature and humidity inside cabinet and provide real time alarm. |
| 8 |
Smoke Sensor |
Monitor smoke status inside cabinet and provide real time alarm. |
| 9 |
Ground Bar |
Resistance value: 0.021Ω |
| 10 |
Built-in power supply |
150A/200A/300A |
| 11 |
Packaging |
Wooden case/Export pallet |
| Cooling System(Optional) |
| No. |
Item |
Specifications |
| 1 |
Air Conditioner |
AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w, 1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w |
| 2 |
Heat Exchanger |
AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k |
| 3 |
Thermoelectric Cooler (TEC) |
DC48V, Cooling capacity 100W, 200w, 300w |
| 4 |
Fan |
DC48V/220V/110V |
