2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V

1
MOQ
1999 USD/SET
Price
2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V
Features Gallery Product Description Request A Quote
Features
Specifications
Brand: LANG JI
Product Name: Telecom Enclosures /Telecom Cabinet
Type: Double Door Telecom Enclosures
Height: 40U Or Optional
IP Grade: IP55/ IP65
Applications: Telecom Station Or Others
Materials: Galanvized Steel
Color: Light Grey Or Optional
Cable Glands: Bottom Cables Or Optional
Package: Wooden Pacakge
Highlight:

2.1M double wall Outdoor Telecom Cabinets

,

42U network cabinet DC48V

,

2.1M double wall 42U network cabinet

Basic Infomation
Place of Origin: CN
Brand Name: Langji
Certification: CE
Model Number: LJ-D1403
Payment & Shipping Terms
Packaging Details: Wooden cartons
Delivery Time: 8-10 weeks
Supply Ability: 500 sets / month
Product Description

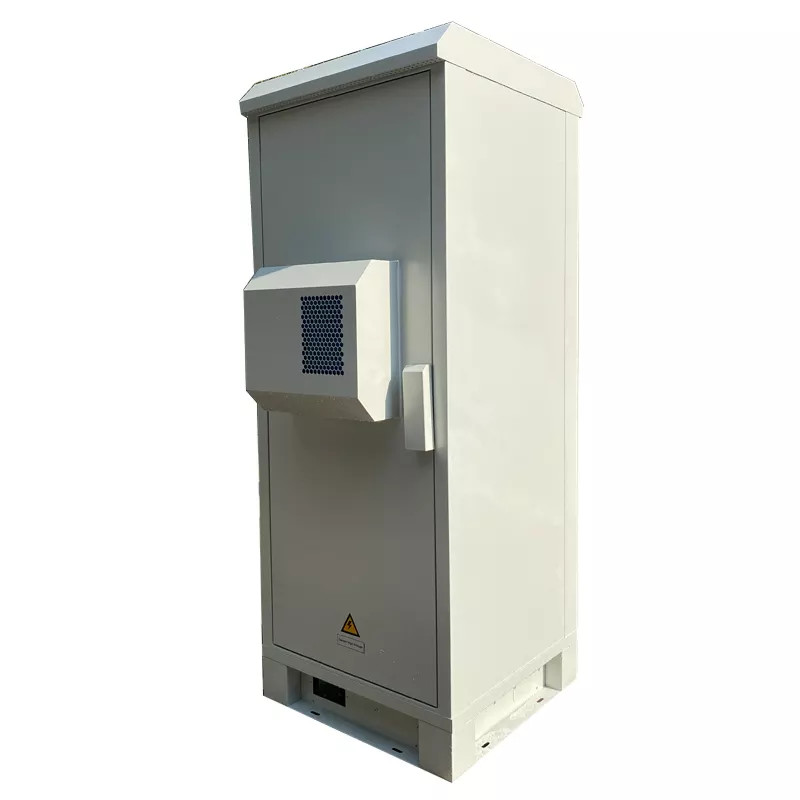

Customized 2.1M double wall telecom outdoor 42U network cabinet electric floor standing cabinet



2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 0



Product Features:



Attractive powder coat finish

Galvanised steel base

Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device

IP55 cabinet, walls and roof in double steel with high quality insulation

Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device

High performance Air-conditioning unit for heat removal

Door stopper to hold door open at service

Pass earthquake intensity 8 anti-seismic performance test



Technical Data Sheet:

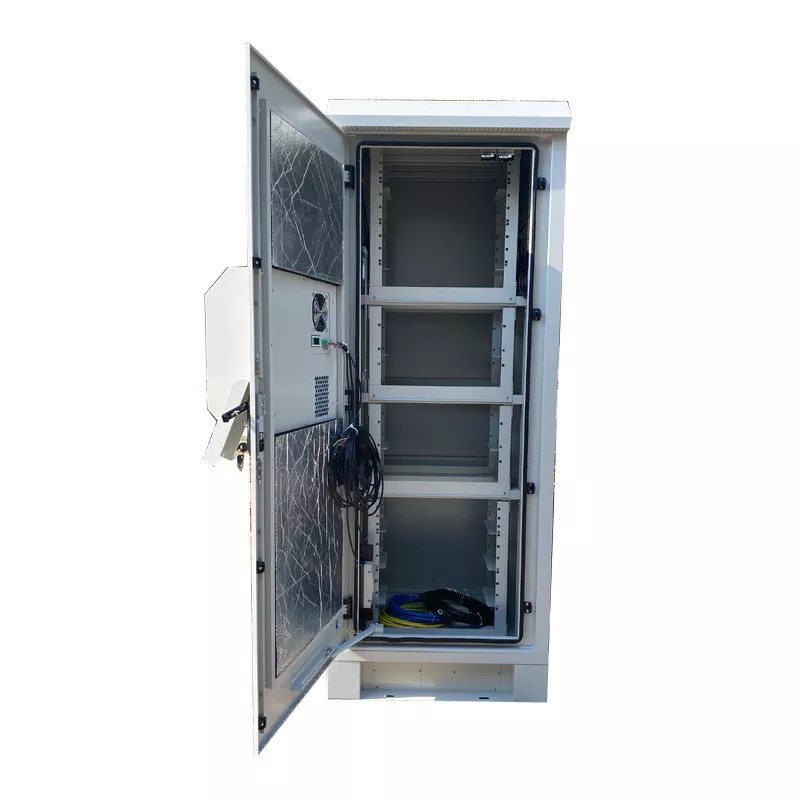

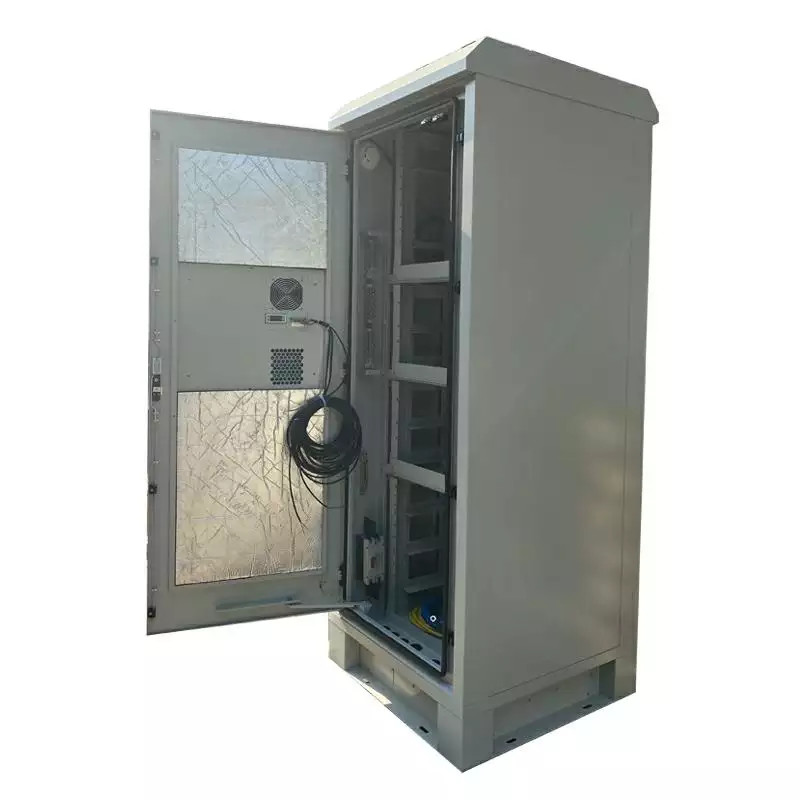

Internal Dimension(H*W*D) :Standard 40U *800*800mm
External Dimension(H*W*D) : Standard 2100*900*900mm
Internal Capacity: 18U,22U,24U,27U 30U,32U,35U,37U,40U,42U etc (based on customers requirements)
Layout :battery compartment
Door : Anti-theft four-point outdoor cabinet lock. (support padlock)
Hinge :Embedded
Material: All materials are Galvanization plate ,insulation thickness 45mm
Material available: Aluminum,stainless steel,cold steel,galvanized steel etc (based on customers requirements)
Structure : Assembly
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Equipment Installation Method:19" rack
Ingress Protection: IP55
Noise Level :60-65dB
Temperature Control Cooling :600W, 48VDC air conditioner + DC48V fans

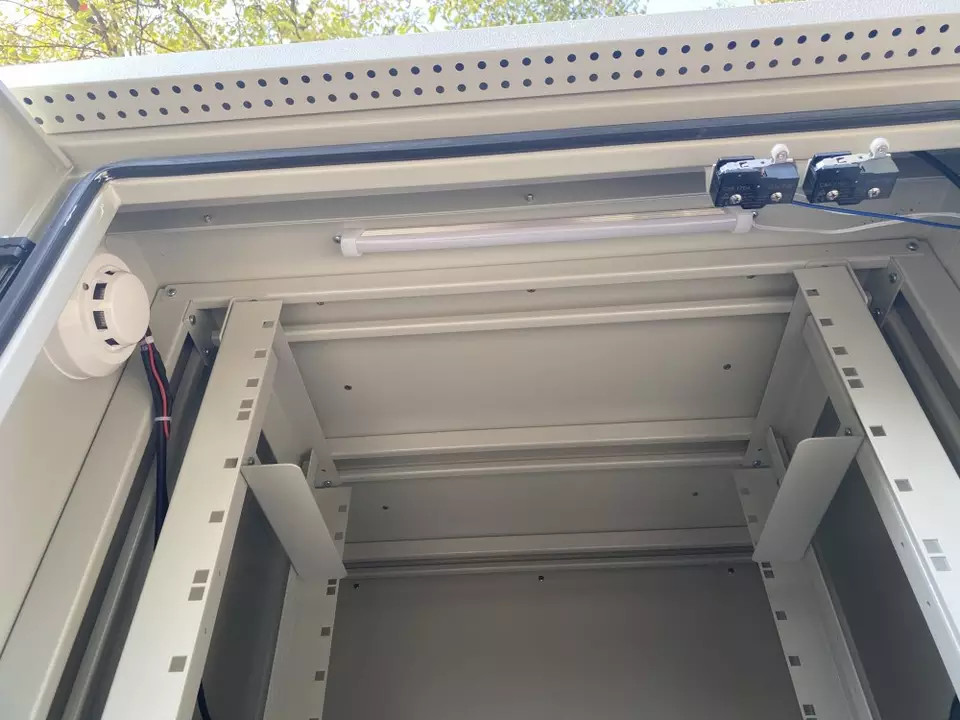

Lighting :LED lamp
48V LED lamps, it will turn on when the door is opened; it will turn off when the door is closed.
Accessory List(options)



No. Item Specifications
1 Fan DC48V, START WORK AT 35°C
2 Power Distribution (PDU) GRADE B LIGHTNING PROOF
AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4;
DC OUTPUT: 16A/1P*4 or customer requirement
3 Environment Monitoring Unit 48VDCCommunication port: RS485, TCP/IP, SNMP optional
4 Door Sensor Monitor door open status inside cabinet and provide real time alarm.
5 Water Sensor Monitor water status inside cabinet and provide real time alarm.
6 Tilt & Shock Sensor Monitor shock status inside cabinet and provide real time alarm.
7 Temperature & Humidity Sensor Monitor temperature and humidity inside cabinet and provide real time alarm.
8 Smoke Sensor Monitor smoke status inside cabinet and provide real time alarm.

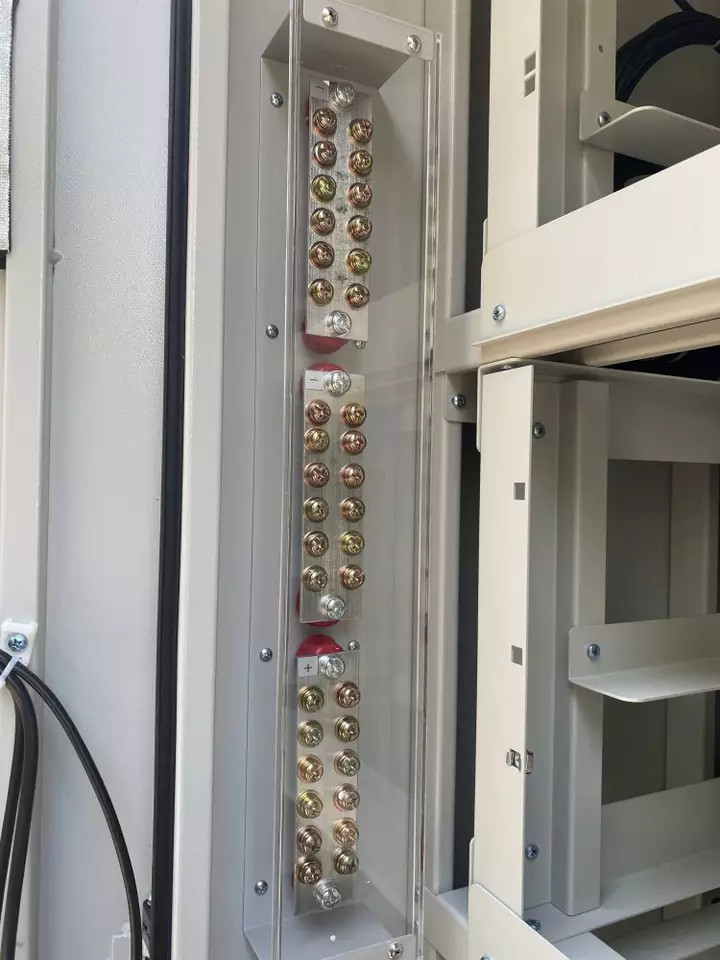

9 Ground Bar Resistance value: 0.021Ω
10 Built-in power supply 150A/200A/300A
11 Packaging Wooden case/Export pallet



Cooling System(Optional)
No. Item Specifications
1 Air Conditioner AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w, 1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w
2 Heat Exchanger AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k
3 Thermoelectric Cooler (TEC) DC48V, Cooling capacity 200w, 300w
4 Fan DC48V







2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 1

2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 22.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 32.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 4







2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 5



2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 62.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 7



2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 8









2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 9

2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 102.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 11



2.1M Double Wall Outdoor Telecom Cabinets 42U Network Cabinet DC48V 12
