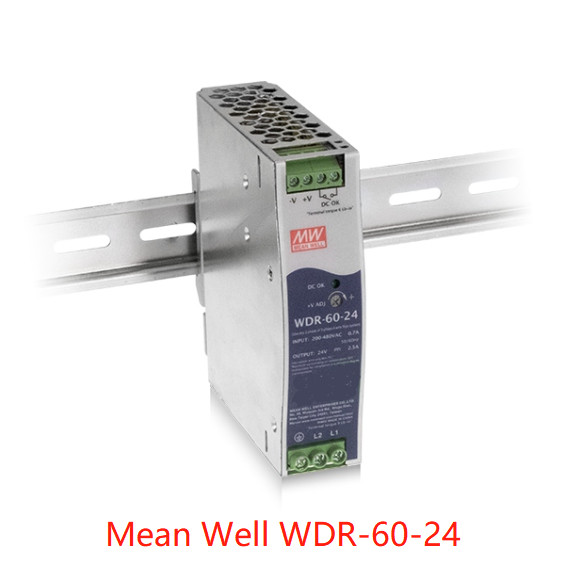

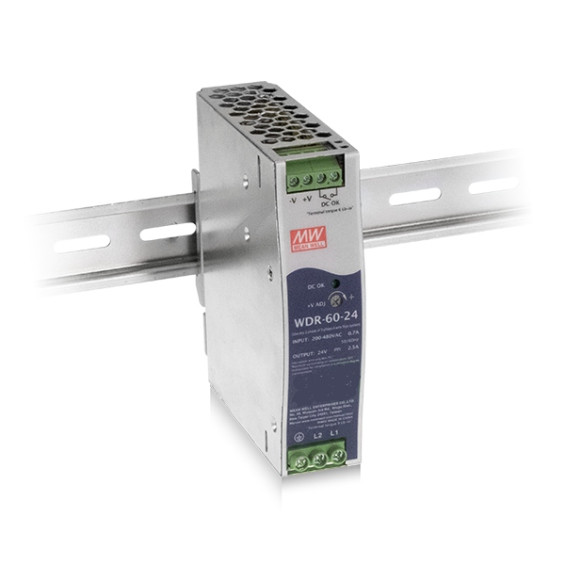

Mean Well 60W Ultra Wide Input Industrial DIN Rail Power Supply WDR-60 series WDR-60-5
Features :
1∅ and 2∅ , 180~550VAC wide input
High efficiency up to 93%
Built-in active PFC function (240W & 480W)
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in DC OK relay contact
Technical
| MODEL |
WDR-60-5 |
WDR-60-12 |
WDR-60-24 |
WDR-60-48 |
|
OUTPUT
|
DC VOLTAGE |
5V |
12V |
24V |
48V |
| RATED CURRENT |
10A |
5A |
2.5A |
1.25A |
| CURRENT RANGE |
0 ~ 10A |
0 ~ 5A |
0 ~ 2.5A |
0 ~ 1.25A |
| RATED POWER |
50W |
60W |
60W |
60W |
| RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
| VOLTAGE ADJ. RANGE |
5 ~ 6V |
12 ~ 15V |
24 ~ 29V |
48 ~ 57V |
| VOLTAGE TOLERANCE Note.3 |
±2% |
±1.5% |
±1.0% |
±1.0% |
| LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| LOAD REGULATION |
±1.5% |
±0.5% |
±0.5% |
±0.5% |
| SETUP, RISE, HOLD UP TIME |
1000ms, 70ms, 20ms/400Vac 2000ms, 70ms, 10ms/230Vac at full load |
|
INPUT
|
VOLTAGE RANGE Note.4 |
180 ~ 550Vac or 254 ~ 780Vdc |
| FREQUENCY RANGE |
47 ~ 63Hz |
| EFFICIENCY (Typ.) |
83.5% / 400Vac |
86.5% / 400Vac |
89% / 400Vac |
90.5% / 400Vac |
| AC CURRENT |
0.4A/400Vac 0.7A/230Vac |
| INRUSH CURRENT (max.) |
COLD START 50A /400Vac 30A/230Vac |
| LEAKAGE CURRENT |
<2mA / 530Vac |
|
PROTECTION
|
OVERLOAD |
105 ~ 135% rated output power |
|
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
|
| OVER VOLTAGE |
6.2 ~ 7.2V |
16 ~ 18V |
31 ~ 37V |
58 ~ 60.5V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| OVER TEMPERATURE |
Protection type : Shut down o/p voltage, re-power on to recover |
| FUNCTION |
DC OK SIGNAL |
Relay contact rating(max.) : 30V / 1A resistive |
|
ENVIRONMENT
|
WORKING TEMP. |
-30 ~ +85℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
| STORAGE TEMP. |
-40 ~ +85℃ |
| TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 60℃) |
| VIBRATION |
Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 |
| OPERATING ALTITUDE Note.5 |
2000 meters |
| OVER VOLTAGE CATEGORY |
Ⅲ; According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters |
|
SAFETY & EMC
(Note 7)
|
SAFETY STANDARDS |
UL61010, BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004 approved; design refer to GL and BS EN/EN60204-1(By request) |
| WITHSTAND VOLTAGE |
I/P-O/P:4.7KVAC I/P-FG:2.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC |
| ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
|
EMC EMISSION
|
Parameter |
Standard |
Test Level / Note |
| Conducted |
BS EN/EN55032(CISPR32) |
Class B |
| Radiated |
BS EN/EN55032(CISPR32) |
Class B |
| Harmonic Current |
BS EN/EN61000-3-2 |
Class A |
| Voltage Flicker |
BS EN/EN61000-3-3 |
------- |
|
EMC IMMUNITY
|
BS EN/EN55024, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3 |
| Parameter |
Standard |
Test Level /Note |
| ESD |
BS EN/EN61000-4-2 |
Level 3, 8KV air; Level 2, 4KV contact, criteria A |
| Radiated Susceptibility |
BS EN/EN61000-4-3 |
Level 3, 10V/m, criteria A |
| EFT Bursts |
BS EN/EN61000-4-4 |
Level 3, 2KV/5KHz, criteria A |
| Surge |
BS EN/EN61000-4-5 |
Level 4, 2KV/Line-Line, 4KV/Line-Earth, criteria A |
| Conducted |
BS EN/EN61000-4-6 |
Level 3, 10V, criteria A |
| Magnetic Field |
BS EN/EN61000-4-8 |
Level 4, 30A/m, criteria A |
| Voltage Dips and interruptions |
BS EN/EN61000-4-11 |
＞95% dip 0.5 periods, 30% dip 25 periods,
＞95% interruptions 250 periods
|
|
OTHERS
|
MTBF |
1900.1K hrs min. Telcordia SR-332 (Bellcore) ; 313.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION |
32*125.2*102mm (W*H*D) |
| PACKING |
0.45Kg; 28pcs/13.6Kg/1.24CUFT |
