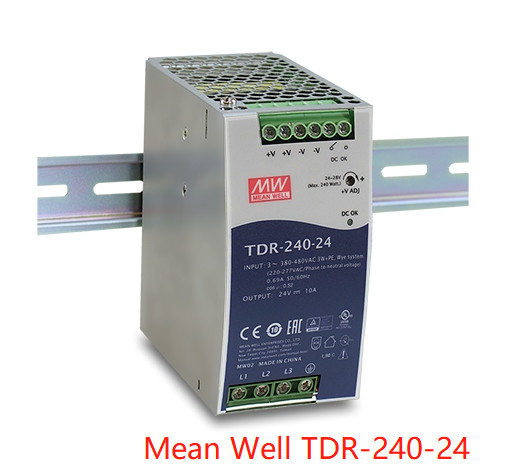

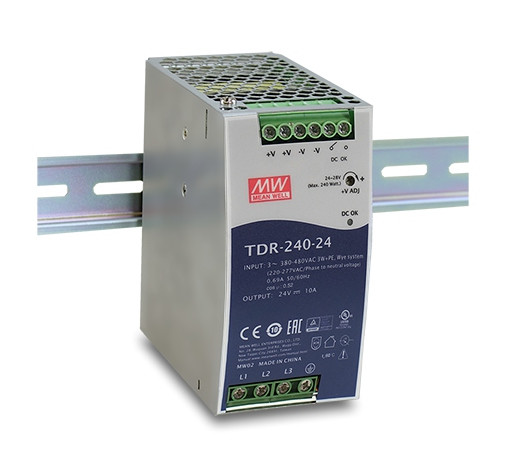

Mean Well 240W Slim Three Phase Industrial DIN Rail with PFC function TDR-240 series TDR-240-24
Mean Well 240W Slim Three Phase Industrial DIN Rail with PFC function TDR-240 series
TDR-240-24 TDR-240-48
Features:
Metal case, slim size
3∅, 340~550VAC input
High efficiency up to 94.5%
Built-in active PFC function
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in DC OK relay contact
Technical
| MODEL |
TDR-240-24 |
TDR-240-48 |
|
OUTPUT
|
DC VOLTAGE |
24V |
48V |
| RATED CURRENT |
10A |
5A |
| CURRENT RANGE |
0 ~ 10A |
0 ~ 5A |
| RATED POWER |
240W |
240W |
| RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
120mVp-p |
| VOLTAGE ADJ. RANGE |
24 ~ 28V |
48 ~ 55V |
| VOLTAGE TOLERANCE Note.3 |
±1.0% |
±1.0% |
| LINE REGULATION |
±0.5% |
±0.5% |
| LOAD REGULATION |
±1.0% |
±1.0% |
| SETUP, RISE TIME |
2000ms, 60ms/400VAC 1500ms, 60ms/500VAC at full load |
| HOLD UP TIME (Typ.) |
20ms / 400VAC 40ms / 500VAC at full load |
|
INPUT
|
VOLTAGE RANGE Note.4 |
Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDC |
| FREQUENCY RANGE |
47 ~ 63Hz |
| POWER FACTOR (Typ.) |
PF≧0.53/400VAC PF≧0.52/500VAC at full load |
| EFFICIENCY (Typ.) |
92% |
92% |
| AC CURRENT (Typ.) |
0.69A/400VAC 0.6A/500VAC |
| INRUSH CURRENT (Typ.) |
COLD START 50A |
| LEAKAGE CURRENT |
<2mA / 530VAC |
|
PROTECTION
|
OVERLOAD |
105 ~ 130% rated output power |
| Protection type : Constant current limiting, unit will hiccup after 3 sec. |
| OVER VOLTAGE |
30 ~ 36V |
56 ~ 65V |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. |
| OVER TEMPERATURE |
Shut down o/p voltage, recovers automatically after temperature goes down |
| FUNCTION |
DC OK REALY CONTACT RATINGS (max.) |
60VDC/0.3A, 30VDC/1A, 30VAC/0.5A resistive load |
|
ENVIRONMENT
|
WORKING TEMP. Note.5 |
-30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY |
20 ~ 95% RH non-condensing |
| STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT |
±0.05%/℃ (0 ~ 60℃) |
| VIBRATION |
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
| OPERATING ALTITUDE Note.6 |
5000 meters |
| OVER VOLTAGE CATEGORY |
Ⅲ; According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters |
|
SAFETY & EMC
(Note 7)
|
SAFETY STANDARDS |
UL61010-1, UL61010-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE |
I/P-O/P:4.87KVAC I/P-FG:2.4KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC |
| ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH |
|
EMC EMISSION
|
Parameter |
Standard |
Test Level / Note |
| Conducted |
BS EN/EN55032(CISPR32)/BS EN/EN61204-3 |
Class B |
| Radiated |
BS EN/EN55032(CISPR32)/BS EN/EN61204-3 |
Class B |
| Harmonic Current |
BS EN/EN61000-3-2 |
Class A |
| Voltage Flicker |
BS EN/EN61000-3-3 |
----- |
|
EMC IMMUNITY
|
BS EN/EN55024 , BS EN/EN61204-3 |
| Parameter |
Standard |
Test Level / Note |
| ESD |
BS EN/EN61000-4-2 |
Level 4, 15KV air ; Level 4, 8KV contact |
| Radiated Field |
BS EN/EN61000-4-3 |
Level 3 |
| EFT / Burst |
BS EN/EN61000-4-4 |
Level 3 |
| Surge |
BS EN/EN61000-4-5 |
Level 4, 2KV / Line-Line, Level 4, 4KV/ Line-Earth |
| Conducted |
BS EN/EN61000-4-6 |
Level 3 |
| Magnetic Field |
BS EN/EN61000-4-8 |
Level 4 |
| Voltage Dips and Interruptions |
BS EN/EN61000-4-11 |
＞95% dip 0.5 periods, 30% dip 25
periods＞ 95% interruptions 250 periods
|
|
OTHERS
|
MTBF |
1534.9K hrs min. Telcordia SR-332(Bellcore); 215.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION |
63*125.2*113.5mm (W*H*D) |
| PACKING |
1Kg ; 12pcs/13Kg/1.22CUFT |
