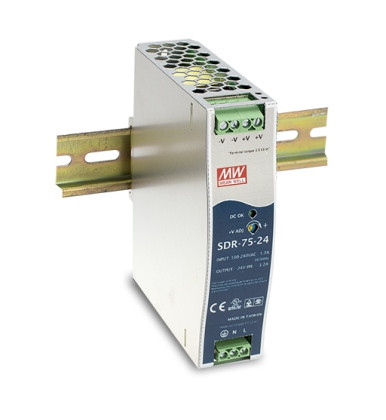

Mean Well Brand 75W Single Output Industrial DIN Rail with Power Supply SDR-75 series

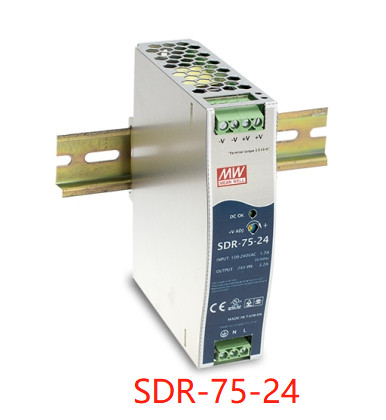

Mean Well Brand 75W Single Output Industrial DIN Rail with Power Supply SDR-75 series
Features:
Metal case, slim size
1∅, full range input (230VAC only for SDR-960)
94% high efficiency and complete functions
Built-in active PFC function (except SDR-75)
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in DC OK relay contact (except SDR-75)
130%~150% peak load capability by models
Current sharing function (SDR-480P/960)
Technical
| MODEL |
SDR-75-12 |
SDR-75-24 |
SDR-75-48 |
|
OUTPUT
|
DC VOLTAGE |
12V |
24V |
48V |
| RATED CURRENT |
6.3A |
3.2A |
1.6A |
| CURRENT RANGE |
0 ~ 6.3A |
0 ~ 3.2A |
0 ~ 1.6A |
| RATED POWER |
75.6W |
76.8W |
76.8W |
| PEAK CURRENT |
9.375A |
4.69A |
2.34A |
| PEAK POWER Note.6 |
112.5W (3 sec.) |
| RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
100mVp-p |
120mVp-p |
| VOLTAGE ADJ. RANGE |
12 ~ 14V |
24 ~ 28V |
48 ~ 55V |
| VOLTAGE TOLERANCE Note.3 |
±1.0% |
±1.0% |
±1.0% |
| LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
| LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
| SETUP, RISE TIME |
1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load |
| HOLD UP TIME (Typ.) |
80ms/230VAC 20ms/115VAC at full load |
|
INPUT
|
VOLTAGE RANGE Note.7 |
88 ~ 264VAC 124 ~ 370VDC [DC input operation possible by connecting AC/L(+),AC/N(-)] |
| FREQUENCY RANGE |
47 ~ 63Hz |
| EFFICIENCY (Typ.) |
88.5% |
89% |
90% |
| AC CURRENT (Typ.) |
1.4A/115VAC 0.85A/230VAC |
| INRUSH CURRENT (Typ.) |
30A/115VAC 50A/230VAC |
| LEAKAGE CURRENT |
<1mA / 240VAC |
|
PROTECTION
|
OVERLOAD |
Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage, re-powr on to recover |
| 150 ~ 170% rated power, constant current limiting with auto-recovery within 3 seconds, and then shut down o/p voltage after 3 seconds, re-powr on to recover |
| OVER VOLTAGE |
14 ~ 17V |
29 ~ 33V |
56 ~ 65V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| OVER TEMPERATURE |
100℃±10℃ (RTH2) detect on main of power transistor |
| Protection type : Shut down o/p voltage, re-powr on to recover after temperature goes down |
|
ENVIRONMENT
|
WORKING TEMP. |
-30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY |
20 ~ 95% RH non-condensing |
| STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH |
| TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 60℃) |
| VIBRATION |
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
|
SAFETY & EMC
(Note 4)
|
SAFETY STANDARDS |
UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved, design refer to GL ;(meet BS EN/EN60204-1) |
| WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC EMISSION |
Compliance to BS EN/EN55032 (CISPR32). BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 |
| EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2),
BS EN/EN61204-3, heavy industry level, EAC TP TC 020, SEMI F47 approved
|
|
OTHERS
|
MTBF |
2670.8K hrs min. Telcordia SR-332 (Bellcore) ; 479.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION |
32*125.2*102mm (W*H*D) |
| PACKING |
0.51Kg; 28pcs/15.3Kg/1.22CUFT |
