Name: Meanwell Rectifier Module NMP650 NMP1K2 NMS-240-24 650W 1200W Power Supply
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: NMP series
Price: 299 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: MEAN WELL

Product Name: NMP Series

Model Number: MS-150 A/ MS-150B/ MS-150C Etc

Output Currency: 0-25A

Rated Power: 50W-153W

Input Frequency: 47 ~ 63Hz

DC Voltgae: 2V -48V

Dimension: 250*89*41mm (L*W*H)

Weight: 1.55 Kg

Highlight:

NMP650 NMP1K2 NMS-240-24 650W

Rectifier Module NMP1K2 NMS-240-24 650W

NMP650 NMP1K2 NMS-240-24 650W 1200w

Basic Infomation

Place of Origin: CN

Brand Name: MEAN WELL

Certification: CE

Model Number: NMP series

Payment & Shipping Terms

Packaging Details: cartons

Delivery Time: 8-10 weeks

Payment Terms: L/C, T/T

Supply Ability: 3000 pieces per month

Gallery

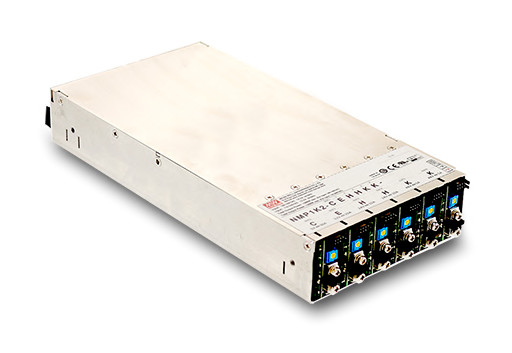

Meanwell Rectifier Module NMP650 NMP1K2 NMS-240-24 650W 1200W Power Supply

Product Description

Meanwell Rectifier Module NMP650 NMP1K2 NMS-240-5/12/24/48 NMS-240-24 650W 1200W Power Supply

Mean Well Rectifier Module NMP650 NMP1K2 650W Rectifier Module

Wattage :

650W/1200W

Features　:

Medical (2x MOPP) ITE safety approvals

Suitable for BF application with appropriate system consideration (Touch current < 100uA/264VAC)

1U low profile

Built-in parallel function / output programmable / global enable / remote local ON-OFF / auxiliary DC output / over temperature alarm / DC OK

Cooling by thermostatically controlled fan with fan alarm function

5 years warranty

Model

NMP650 NMP1K2

Technical

MODEL		NMP650 (4 Slots)		NMP1K2 (6 Slots)
INPUT	VOLTAGE RANGE Note.6	90 ~ 264VAC 120 ~370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR	PF>0.95/230VAC PF>0.98/115VAC at full load
	EFFICIENCY(Typ.) Note.4	91%, full case load with H / K module at nominal 24V / 48V only		90.5%, full case load with H / K module at nominal 24V / 48V only
		88.5%, full case load with each type of module at nominal voltage
	AC CURRENT	3.5A/230VAC 7.5A/115VAC		6.7A/230VAC 13.5A/115VAC
	INRUSH CURRENT	40A/230VAC 25A/115VAC		40A/230VAC 25A/115VAC
	LEAKAGE CURRENT	Earth leakage current <400uA / 264VAC, Touch current <100uA/264VAC
OUTPUT	TOTAL OUTPUT POWER	650W max.		1200W max.
PROTECTION	OVER TEMPERATURE	Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION	REMOTE CONTROL	RC+/RC-: Short, Power ON RC+/RC-: Open, Power OFF
	ALARM SIGNAL	TTL signal output for over temperature alarm. Please refer to the Function Manual.
	AUXILIARY POWER(AUX)	5V @ 1.5A ; tolerance ±10%; ripple: 50mVp-p (max.)		5V @ 2A; tolerance ±10%; ripple: 50mVp-p(max.)
ENVIRONMENT	WORKING TEMP.	-30 ~ +70℃ (Derate at 50℃, refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH non-condensing
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 50℃)
	VIBRATION	10~500Hz, 2G 10min./1 cycle, 60 min. each along X, Y, Z axes.
SAFETY & EMC (Note 5)	SAFETY STANDARDS	ANSI/AAMI ES60601-1, Ed. 3.1,UL62368-1; TUV BS EN/EN60601-1, Ed. 3.1, TUV BS EN/EN62368-1; IEC 60601-1, Ed. 3.1, IEC 62368-1, IEC60950-1; EAC TP TC 004 approved
	ISOLATION LEVEL	Primary-Secondary: 2x MOPP, Primary-Earth: 1x MOPP
	WITHSTAND VOLTAGE	I/P-O/P: 4KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Parameter	Standard		Test Level / Note
		Conducted	BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11)		Class B
		Radiated	BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11)		Class B
		Harmonic Current	BS EN/EN61000-3-2		Class A
		Voltage Flicker	BS EN/EN61000-3-3		-----
	EMC IMMUNITY	BS EN/EN60601-1-2, BS EN/EN55024, SEMI F47
		Parameter	Standard		Test Level / Note
		ESD	BS EN/EN61000-4-2		Level 4, 15KV air; Level 4, 8KV contact
		RF field	BS EN/EN61000-4-3		Level 3, 10V/m
		EFT/ Burst	BS EN/EN61000-4-4		Level 3, 2KV
		Surge	BS EN/EN61000-4-5		Level 4, 4KV/Line-FG; 2KV/Line-Line
		Conducted	BS EN/EN61000-4-6		Level 2, 3V
		Magnetic Field	BS EN/EN61000-4-8		Level 4, 30A/m
		Voltage Dips and Interruptions	BS EN/EN61000-4-11		100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods
OTHERS	MTBF	1314.6K hrs min. Telcordia SR-332 (Bellcore) ; 128.2K hrs min. MIL-HDBK-217F (25℃) (NMP650) 1275.4K hrs min. Telcordia SR-332 (Bellcore) ; 124.5K hrs min. MIL-HDBK-217F (25℃) (NMP1K2)
	DIMENSION	2508941mm (LWH)		25012741mm (LWH)
	PACKING	1.45Kg (typ.); 9pcs / 14Kg / 0.98CUFT		2Kg (typ.); 6pcs / 13Kg / 0.88CUFT

Meanwell Rectifier Module NMP650 NMP1K2 NMS-240-24 650W 1200W Power Supply 2

Meanwell Rectifier Module NMP650 NMP1K2 NMS-240-24 650W 1200W Power Supply 4

Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
