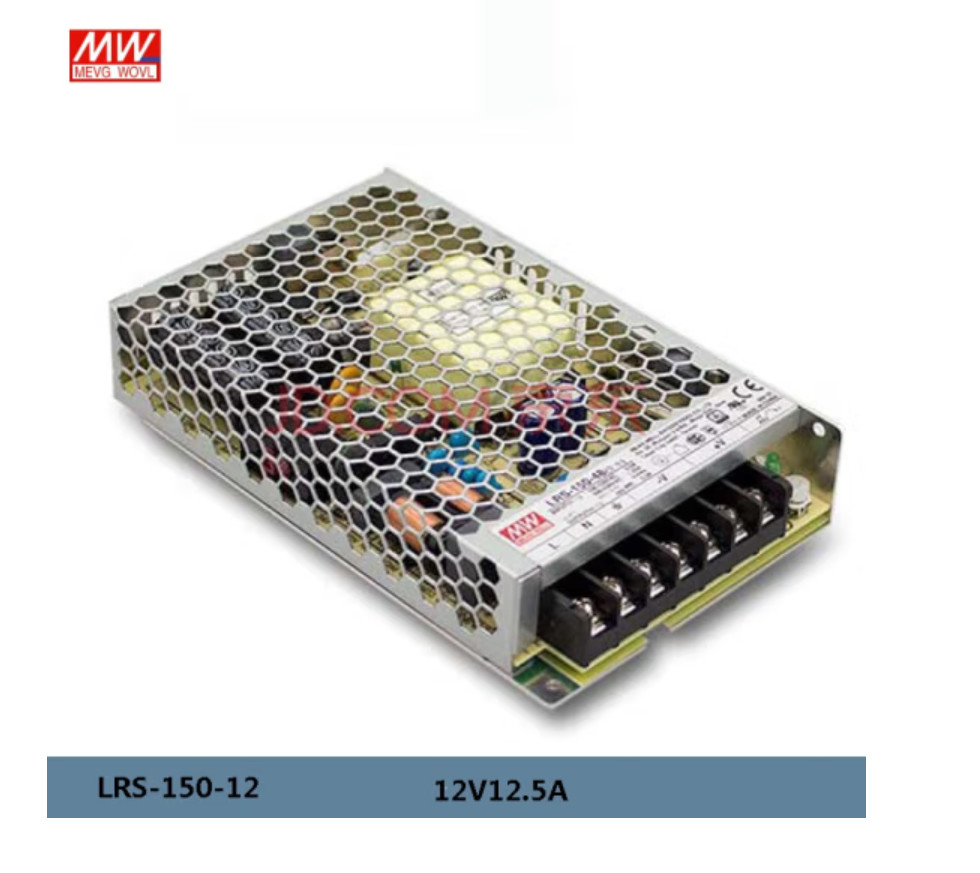

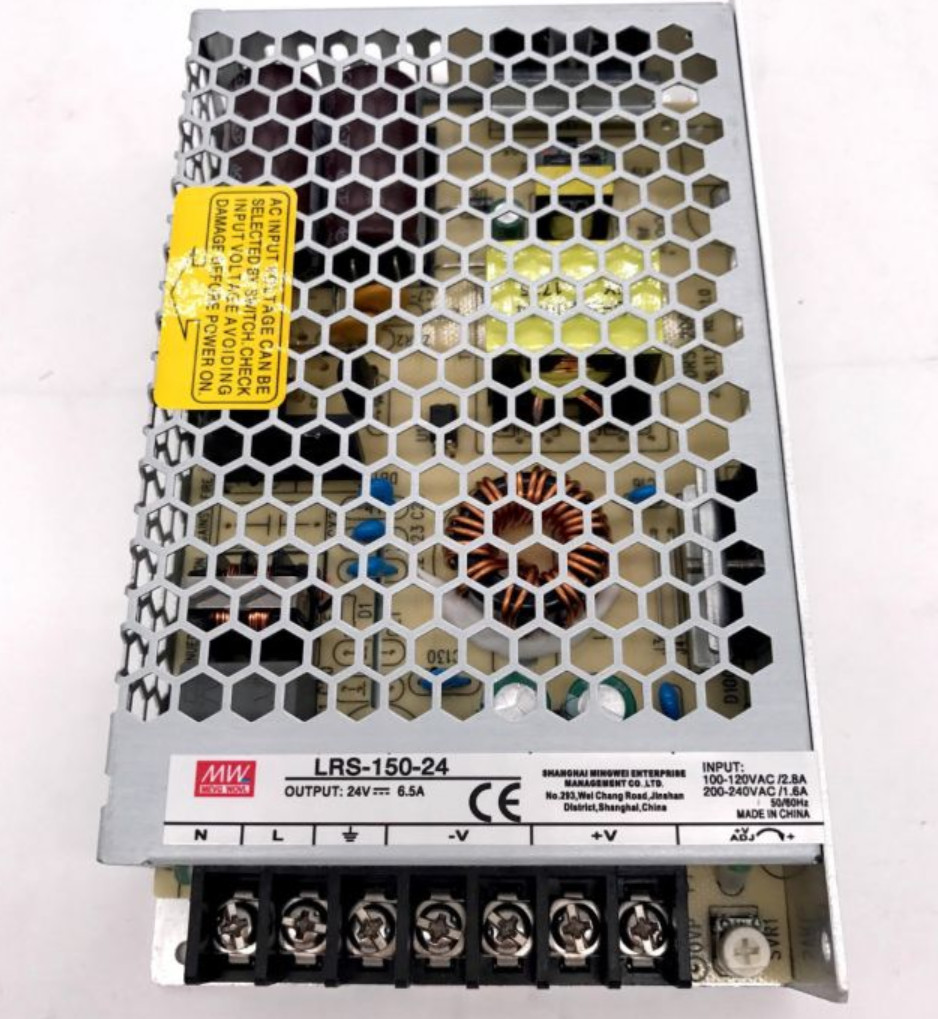

Mean Well LRS Series 150W Single Switching Power Supply LRS-150 LRS-150-24 LRS-150-12 24V 6.5A 12V6.2A LRS-150-12
Mean Well LRS Series 150W Single Switching Power Supply LRS-150 LRS-150-24 LRS-150-12 24V 6.5A 12V6.2A LRS-150-12
Applications :
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
Description:
LRS-150 series is a 150W single output enclosed type power supply with 30mm of low profile deign,Adopting the full range 85-264Vac input, the entire series provides an output voltage line of 12V.15V,24V,36V and 48V
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150 that the whole series operates from -30°through 70 °under air convection without a fan.
Delivering an extremely low no load power consumption ( less than 0.3W), it allows the end system to easily meet the worldwide energy requirement .
Technical
| MODEL |
LRS-150-12 |
LRS-150-15 |
LRS-150-24 |
LRS-150-36 |
LRS-150-48 |
|
OUTPUT
|
DC VOLTAGE |
12V |
15V |
24V |
36V |
48V |
| RATED CURRENT |
12.5A |
10A |
6.5A |
4.3A |
3.3A |
| CURRENT RANGE |
0 ~ 12.5A |
0 ~ 10A |
0 ~ 6.5A |
0 ~ 4.3A |
0 ~ 3.3A |
| RATED POWER |
150W |
150W |
156W |
154.8W |
158.4W |
| RIPPLE & NOISE (max.) Note.2 |
150mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
200mVp-p |
| VOLTAGE ADJ. RANGE |
10.2 ~ 13.8V |
13.5 ~ 18V |
21.6 ~ 28.8V |
32.4 ~ 39.6V |
43.2 ~ 52.8V |
| VOLTAGE TOLERANCE Note.3 |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
| LINE REGULATION Note.4 |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| LOAD REGULATION Note.5 |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| SETUP, RISE TIME |
500ms, 30ms/230VAC 500ms,30ms/115VAC at full load |
| HOLD UP TIME (Typ.) |
40ms/230VAC 35ms/115VAC at full load |
|
INPUT
|
VOLTAGE RANGE |
85 ~ 132VAC / 170 ~ 264VAC by switch 240 ~ 370VDC(switch on 230VAC) |
| FREQUENCY RANGE |
47 ~ 63Hz |
| EFFICIENCY (Typ.) |
87.5% |
88.5% |
89% |
89% |
90% |
| AC CURRENT (Typ.) |
3A/115VAC 1.7A/230VAC |
| INRUSH CURRENT (Typ.) |
COLD STAR 60A/230VAC |
| LEAKAGE CURRENT |
<0.75mA / 240VAC |
|
PROTECTION
|
OVER LOAD |
110 ~ 140% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE |
13.8 ~ 16.2V |
18.75 ~ 21.75V |
28.8 ~ 33.6V |
41.4 ~ 48.6V |
55.2 ~ 64.8V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| OVER TEMPERATURE |
Shut down o/p voltage, re-power on to recover |
|
ENVIRONMENT
|
WORKING TEMP. |
-30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
| VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
| OVER VOLTAGE CATEGORY |
Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters |
|
SAFETY & EMC
(Note 7)
|
SAFETY STANDARDS
|
UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004,KC K60950-1(for LRS-150-12 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005,
AS/NZS 62368.1(by CB) approved
|
| WITHSTAND VOLTAGE |
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
| ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC EMISSION |
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2 Class A(≤75% Load), BS EN/EN61000-3-3,GB/T 9254, BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-150-12 only) |
| EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020,KC KN32,KN35(for LRS-150-12 only) |
|
OTHERS
|
MTBF |
2707.7K hrs min. Telcordia SR-332 (Bellcore) ; 558.2Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION |
159*97*30mm (L*W*H) |
| PACKING |
0.48Kg ; 30pcs/15.4Kg/0.75CUFT |
