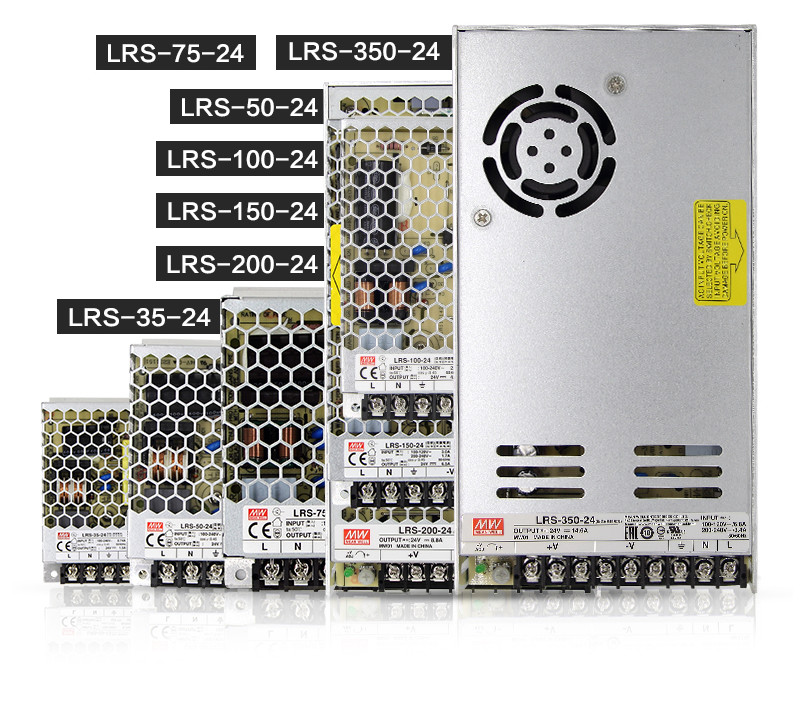

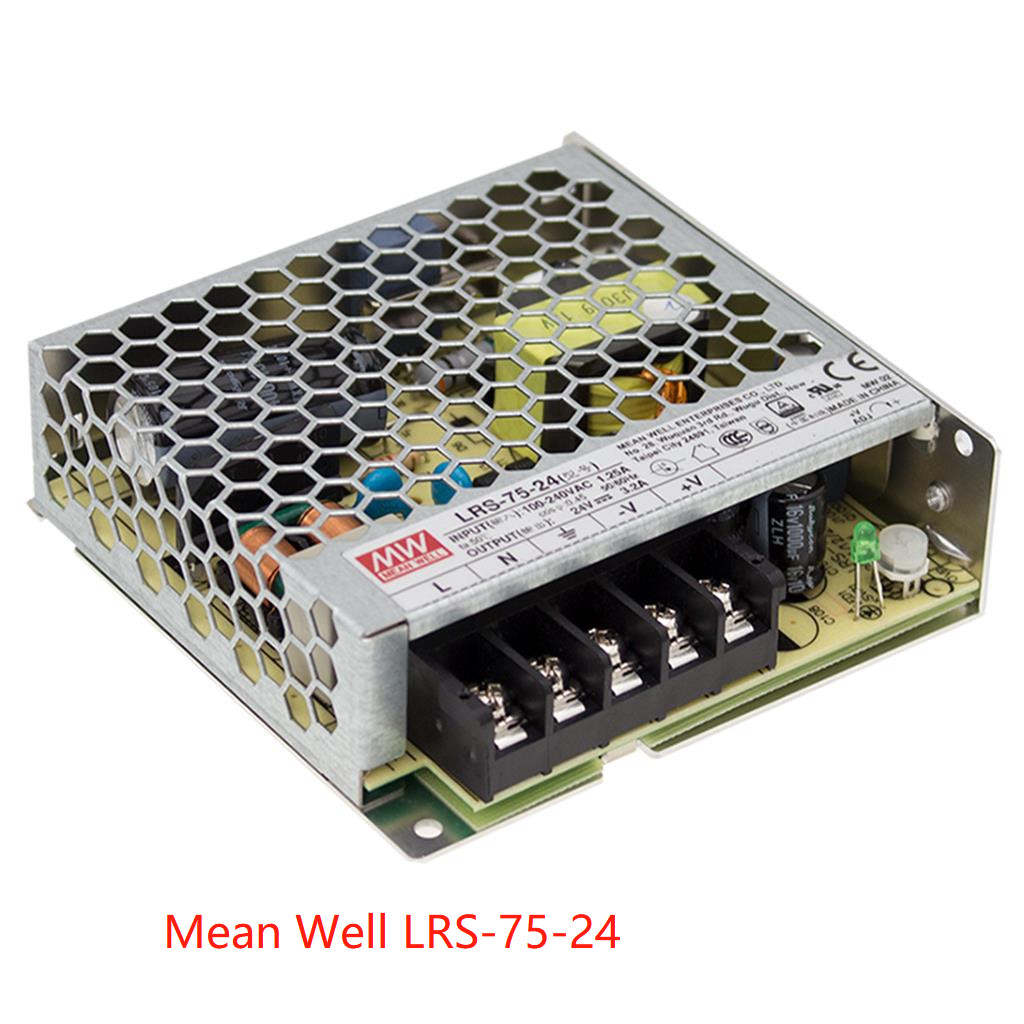

| MODEL |
LRS-75-5 |
LRS-75-12 |
LRS-75-15 |
LRS-75-24 |
LRS-75-36 |
LRS-75-48 |
|
OUTPUT
|
DC VOLTAGE |
5V |
12V |
15V |
24V |
36V |
48V |
| RATED CURRENT |
14A |
6A |
5A |
3.2A |
2.1A |
1.6A |
| CURRENT RANGE |
0 ~ 14A |
0 ~ 6A |
0 ~ 5A |
0 ~ 3.2A |
0 ~ 2.1A |
0 ~ 1.6A |
| RATED POWER |
70W |
72W |
75W |
76.8W |
75.6W |
76.8W |
| RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
| VOLTAGE ADJ. RANGE |
4.5 ~ 5.5V |
10.2 ~ 13.8V |
13.5 ~ 18V |
21.6 ~ 28.8V |
32.4 ~ 39.6V |
43.2 ~ 52.8V |
| VOLTAGE TOLERANCE Note.3 |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
| LINE REGULATION Note.4 |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| LOAD REGULATION Note.5 |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| SETUP, RISE TIME |
500ms, 30ms/230VAC 500ms,30ms/115VAC at full load |
| HOLD UP TIME (Typ.) |
60ms/230VAC 12ms/115VAC at full load |
|
INPUT
|
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 373VDC |
| FREQUENCY RANGE |
47 ~ 63Hz |
| EFFICIENCY (Typ.) |
86.5% |
89% |
89% |
90% |
91.5% |
91.5% |
| AC CURRENT (Typ.) |
1.4A/115VAC 0.85A/230VAC |
| INRUSH CURRENT (Typ.) |
COLD START 65A/230VAC |
| LEAKAGE CURRENT |
<0.75mA / 240VAC |
|
PROTECTION
|
OVER LOAD |
110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE |
5.75 ~ 6.75V |
13.8 ~ 16.2V |
18.75 ~ 21.75V |
28.8 ~ 33.6V |
41.4 ~ 48.6V |
55.2 ~ 64.8V |
| Protection type : Shut down o/p voltage, re-power on to recover |
|
ENVIRONMENT
|
WORKING TEMP. |
-30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
| VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
| OVER VOLTAGE CATEGORY |
Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178,BS EN/EN60664-1, BS EN/EN62477-1;
altitude up to 2000 meters
|
|
SAFETY & EMC
(Note 8)
|
SAFETY STANDARDS
|
UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004,AS/NZS 62368.1(by CB),KC K60950-1(for LRS-75-12/24 only), BIS IS13252(Part1):
2010/IEC 60950-1: 2005 approved
|
| WITHSTAND VOLTAGE |
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
| ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH |
| EMC EMISSION |
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-75-12/24 only) |
| EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000EAC TP TC 020,KC Kn32,
KN35(for LRS-75-12/24 only)
|
|
OTHERS
|
MTBF |
3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 667.2Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION |
99*97*30mm (L*W*H) |
| PACKING |
0.25Kg ; 45pcs/ 12.25Kg/ 0.77CUFT |
| NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
|
| |
3. Tolerance : includes set up tolerance, line regulation and load regulation. |
| |
4. Line regulation is measured from low line to high line at rated load. |
| |
5. Load regulation is measured from 0% to 100% rated load. |
| |
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up |
| |
time. |
| |
7. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft). |
| |
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by |
| |
mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets |
| |
EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” |
| |
(as available on http://www.meanwell.com) |
| |
※ Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx |
