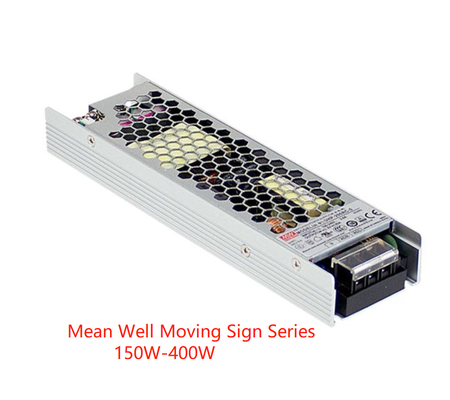

MEAN WELL MOVING SIGN SERIES 150W- 400W Single Output with PFC LSP-150 HSP-200 UHP-200A HSP-300
MEAN WELL MOVING SIGN SERIES 150W- 400W Single Output with PFC LSP-150 HSP-200 UHP-200A HSP-300
Features:
Light weight and low profile
Suitable for high efficiency moving sign applications
Conformal coating (HSP, HDP, NEL, HSN series)
Semi-potted and design against rain splash (ERP Series)
Parametets :
| MODEL |
LSP-160 -3.3 |
LSP-160 -4.2 |
LSP-160 -5 |
LSP-160-12 |
LSP-160-24 |
LSP-160-36 |
LSP-160-48 |
|
OUTPUT
|
DC VOLTAGE |
3.3V |
4.2V |
5V |
12V |
24V |
36V |
48V |
| RATED CURRENT |
32A |
32A |
32A |
13.5A |
6.75A |
4.5A |
3.4A |
| RATED POWER(convection) |
105.6W |
134.4W |
160W |
162W |
162W |
162W |
163.2W |
| RIPPLE & NOISE (max.) Note.2 |
200mVp-p |
200mVp-p |
200mVp-p |
240mVp-p |
240mVp-p |
240mVp-p |
300mVp-p |
| VOLTAGE ADJ. RANGE |
3.2~3.5V |
4~4.5V |
4.7~5.3V |
11.4~12.6V |
22.8~25.2V |
34.2~37.8V |
45.6~50.4V |
| VOLTAGE TOLERANCE Note.3 |
±2.0% |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
| LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.3% |
±0.3% |
±0.3% |
±0.3% |
| LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| SETUP, RISE TIME |
2000ms, 80ms/230VAC 3000ms, 80ms/115VAC at full load |
| HOLD UP TIME (Typ.) |
10ms/230VAC 10ms/115VAC |
|
INPUT
|
VOLTAGE RANGE Note.4 |
100 ~ 264VAC 141 ~ 370VDC |
| FREQUENCY RANGE |
47 ~ 63Hz |
| POWER FACTOR (Typ.) |
PF≥0.94/230VAC PF≥0.98/115VAC at full load |
| EFFICIENCY (Typ.) |
87.5% |
88.5% |
89.5% |
92.5% |
93.5% |
93.5% |
93.5% |
| AC CURRENT (Typ.) |
2.2A/115VAC 1.1A/230VAC |
| INRUSH CURRENT (Typ.) |
Cold start 45A/115VAC 85A/230VAC |
| LEAKAGE CURRENT |
<0.75mA / 240VAC |
|
PROTECTION
|
SHORT CIRCUIT |
Hiccup protection,recovers automatically after fault condition is removed |
| OVERLOAD |
110~140% rated output power |
| Protection type : Constant current limiting,continous increase of load will be hiccup protection, recovers automatically after fault condition is removed |
|
OVER VOLTAGE
|
3.8~ 4.6V |
4.62 ~ 5.46V |
5.75 ~ 6.75V |
13.2 ~ 15.6V |
26.4 ~ 31.2V |
39.6 ~46.8V |
52.8 ~ 62.4V |
| Protection type :Shut down O/P voltage,re-power on to recover |
| OVER TEMPERATURE |
Shut down O/P voltage, re-power on to recover after temperature goes down |
|
FUNCTION
|
CURRENT SHARING |
Please refer to the Function Manual |
| DC OK SIGNAL |
Contact rating(max.):15Vdc/10mA resistive load |
|
ENVIRONMENT
|
WORKING TEMP. |
-30 ~ +70℃(Refer to “Derating Curve") |
| WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
| VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
|
SAFETY & EMC
(Note.6)
|
SAFETY STANDARDS |
UL62368,TUV BS EN/EN62368, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1 approved, Design refer to BS EN/EN60335-1 |
| WITHSTAND VOLTAGE |
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
| ISOLATION RESISTANCE |
I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH |
| EMC EMISSION |
Compliance to BS EN/EN55032,GB9254,Class B, BS EN/EN55014,BS EN/EN61000-3-2,-3,EAC TP TC 020,BSMI CNS13438 |
| EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level ,EAC TP TC 020 |
|
OTHERS
|
MTBF |
2092.7K hrs min. Telcordia TR/SR-332(Bellcore) ;282.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION |
194*55*20mm (L*W*H) |
| PACKING |
0.356kg;30pcs/11.68kg/0.6CUFT |
|
NOTE
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft)
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it
still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”
(as available on http://www.meanwell.com)
※ Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
|
