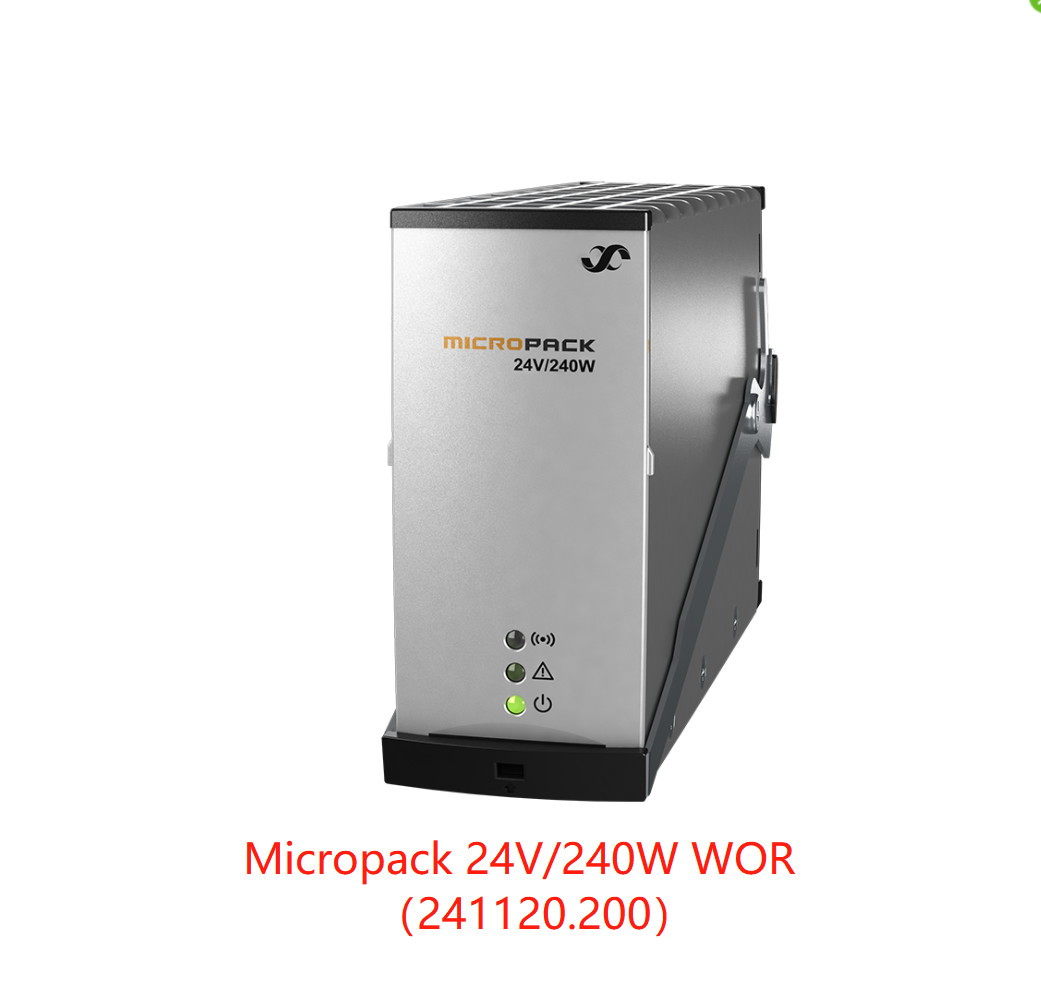

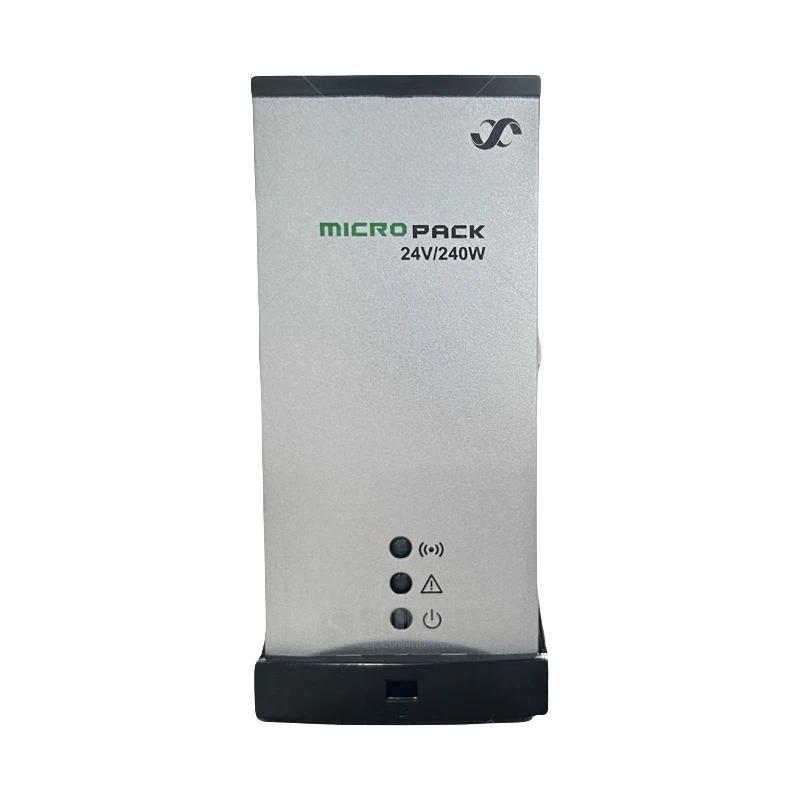

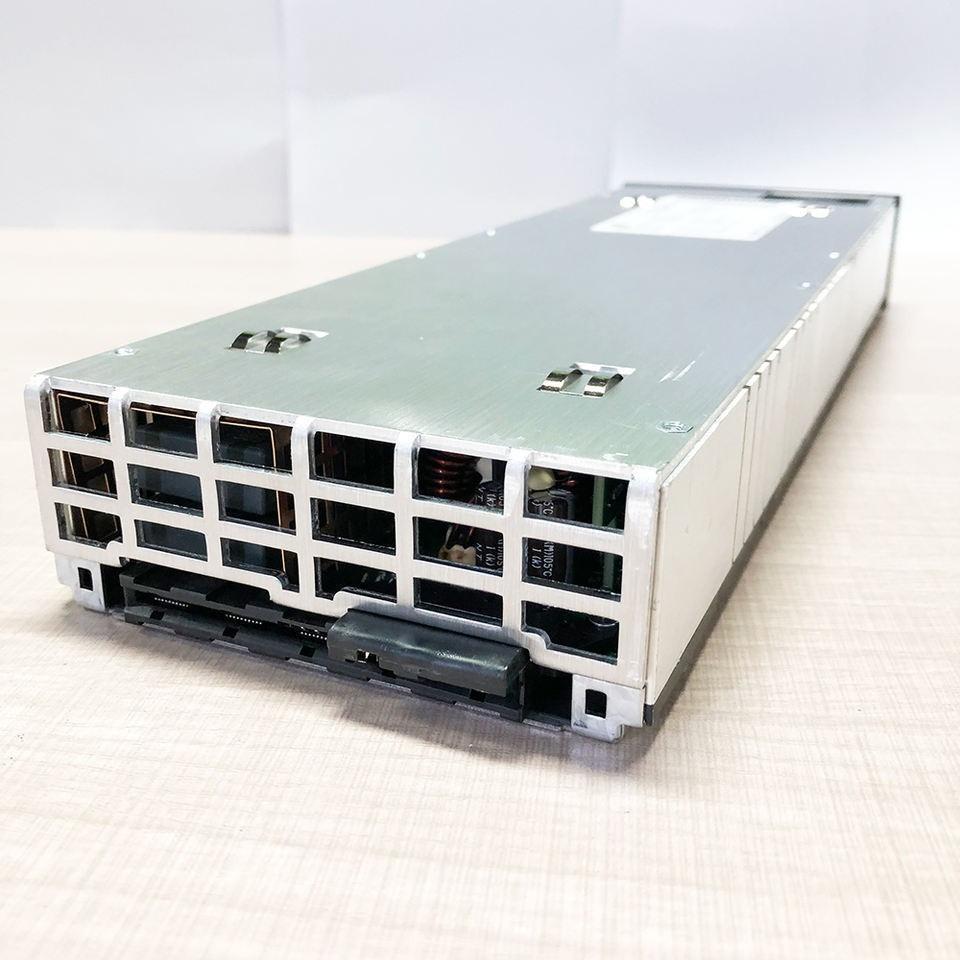

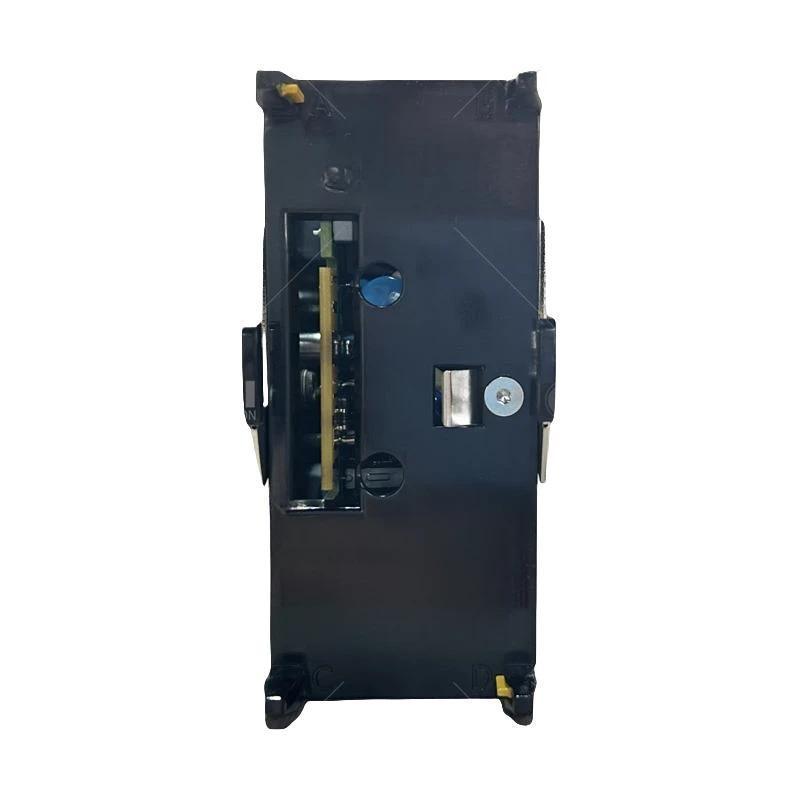

| Model |
12V / 120W |
24V / 240W |
48V / 250W |

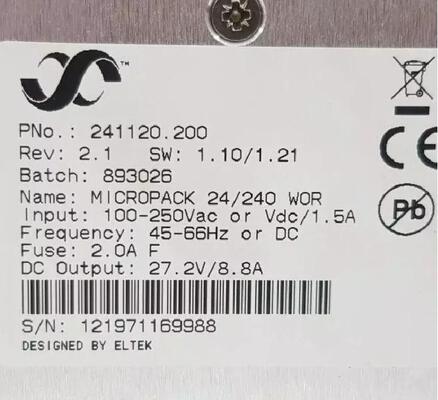

| Part number |
241120.300 |
241120.200 |
241120.100 |
| INPUT DATA |
|
|
|
| Voltage range |
85 - 300 V AC/ DC 1) |
| Voltage range (nominal) |
130 - 275 V AC/ DC |
185 - 275 V AC/ DC 1) |
| Frequency |
0 - 66 Hz 1) |
| Maximum current, 230V input / overall (boost) |
0.6 A / 2.0 A |
1.2 A / 2.0 A |
1.2 A / 1.9 A |
| Maximum earth leakage current |
2.0 mA (@ 250V AC/ 50Hz) |
| Power Factor |
0.97 (@ 70 - 100 % load) |
0.98 (@ 55 - 100 % load) |
0.98 (@ 50 - 100 % load) |
| THD (@ 230 VAC) |
< 5 % (@ 80 - 100 % load) |
< 5 % (@ 50 - 100 % load) |
< 5 % (@ 50 - 100 % load) |
| Protection |
Varistor for transient protection, fuse in both lines (2x 2.0 A), shutdown above 300 V AC/ DC |
| OUTPUT DATA |
|
|
|
| Default voltage |
13.6 V DC |
27.2 VDC |
53.5 VDC |
| Voltage range |
10.7 - 18.0 V DC |
21.5 - 36 VDC |
43.5 - 57.6 V DC |
| Voltage range without controller |
10.7 - 15.0 V DC |
21.5 - 30 VDC |
43.5 - 57.6 V DC |
| # Pb cell supported (1.8 - 2.4 V DC/ cell) |
6 - 7 |
12 - 15 |
24 |
| # NiCad cell supported (1.05 - 1.65 V DC/ cell) |
10 - 11 2) |
20 - 222) |
- |
| Max power, nominal / 60s boost |
120 W / 160 W |
240 W / 315 W |
250 W / - |
| Max current, @12/ 24/ 48V DC / boost / QT 3) |
10 A / 15 A / 55 A |
10 A / 15 A / 55 A |
5 A / - / - |
| Current sharing |
±5% of maximum current from 10 to 100% load |
| Static voltage regulation ± |
0.5% from 10% to 100% load and nominal input |
| Dynamic voltage regulation |
± 5 % < 10ms, load step 10% to 90% or opposite at nominal output voltage |
| Hold-up time, default voltage and full power |
20 ms, V OUT > 10.7 VDC |
20 ms, VOUT > 21.5 VDC |
20 ms, VOUT > 43 VDC |
| Rippel and noise, 30 MHz b.w. / psophometric |
< 200 mV PP / 5 mV RMS |
< 200 mV PP / 5 mV RMS |
< 150 mV PP / 2 mV RMS |
| Protection |
Overvoltage shutdown, short circuit proof, high temperature, hot plug -in inrush current limiting, fuse |
| OTHER SPECIFICATIONS |
|
|
|
| Efficiency @ nominal input/ output, peak/ range |
89.5% / >88%, 50-100% load |
93.0% / >92%, 50-100% load |
93.6% / >93%, 50-100% load |
| Isolation |
3.0 kVAC – input and output, 1.5 kV AC – input earth, 0.5 kV DC – output earth |
| Alarms: Red LED 'on |
Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure |
| Warnings: Yellow LED 'on' |
Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage |
| Normal (module running): Green LED 'on' |
|
| Alarm output (isolated) |
NO (+positive terminal), COM (-negative terminal). 60 V / 100 mA max |
| MTBF (Telcordia SR-332 Issue I method III (a)) |
>480 000h (@T AMBIENT= 25°C) |
>480 000h (@T AMBIENT= 25°C) |
>500 000h (@T AMBIENT= 25°C) |
| Operating temperature (5 - 95% RH non-cond.) Output power de-rates above temp / to |
-40 to +70°C [ -40 — +158°F]
+55°C / 50W @ +70°C
|
-40 to +60°C [-40 to +142°F]
+45°C / 80W @ +60°C
|
-40 to +75°C [ -40 to +167°F]
+55°C / 140W @ +75°C
|
| Storage temperature |
-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions[WxHxD] / Weight |
39.0 x 88.5 x 149mm [1.54 x 3.48 x 5.87"] / 0.5 kg [1.1 lbs] |
| DESIGN STANDARDS |
|
| Electrical safety |
UL 60950 -1, EN 60950 -1, CSA 22.2 |
| EMC |
ETSI EN 300 386 V.1.3.2
EN 61000-6-1 / -2 / -3 / -4 / -5 4)
|
| Mains Harmonics |
EN 61000 -3-2 |
| Environment |
ETSI EN 300 019: 2 -1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)
ETSI EN 300 132-2
2002/ 95/ EC (RoHS) & 2002/ 96/ EC (WEEE)
|
|
Marine compliance
(EMC class B with AC filter)
|
DnV Rules for Classification of Ships, High Speed & Light Craft and DnV Offshore Standards |
|
1) DC support for 241120.200 with primary FW 404088.009 (from HW revision 1.2) and 241120.100 from HW revision 2
2) 11/ 22 cells with max boost voltage 1.636 V DC/ cell
3) Quick-Trip function, if V OUT = 5 VDC a 35 ms current pulse is generated to help trip fuse/ MCB on short circuited branch
4) Only 12V and 24V
|
