Eltek Rectifier Module Flatpack2 48V-60V/ 2000W HE(part no.: 241115.705)

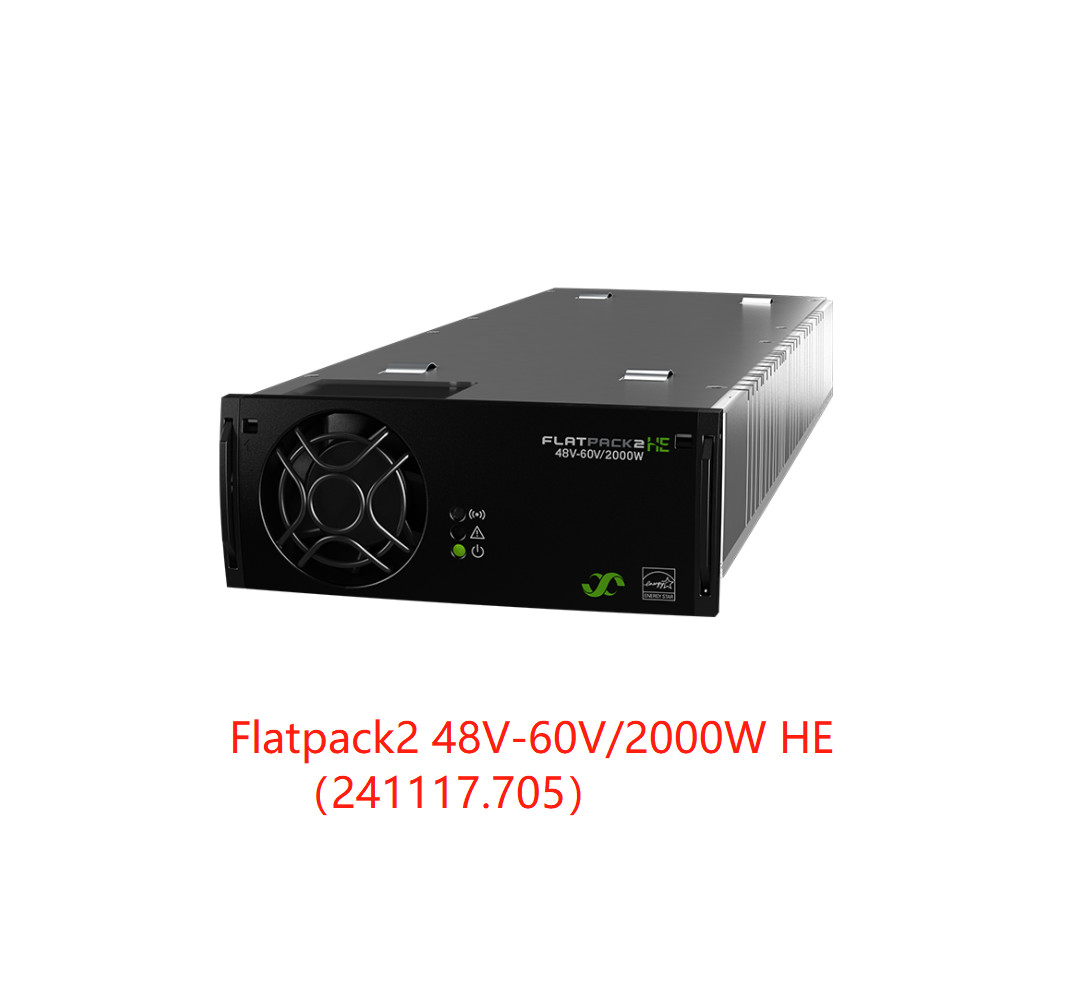

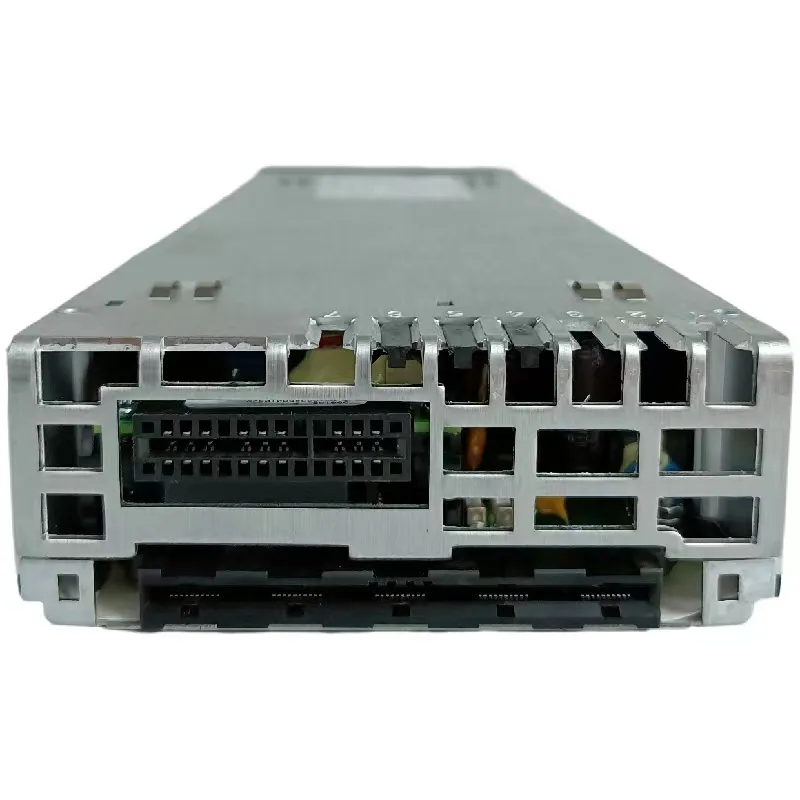

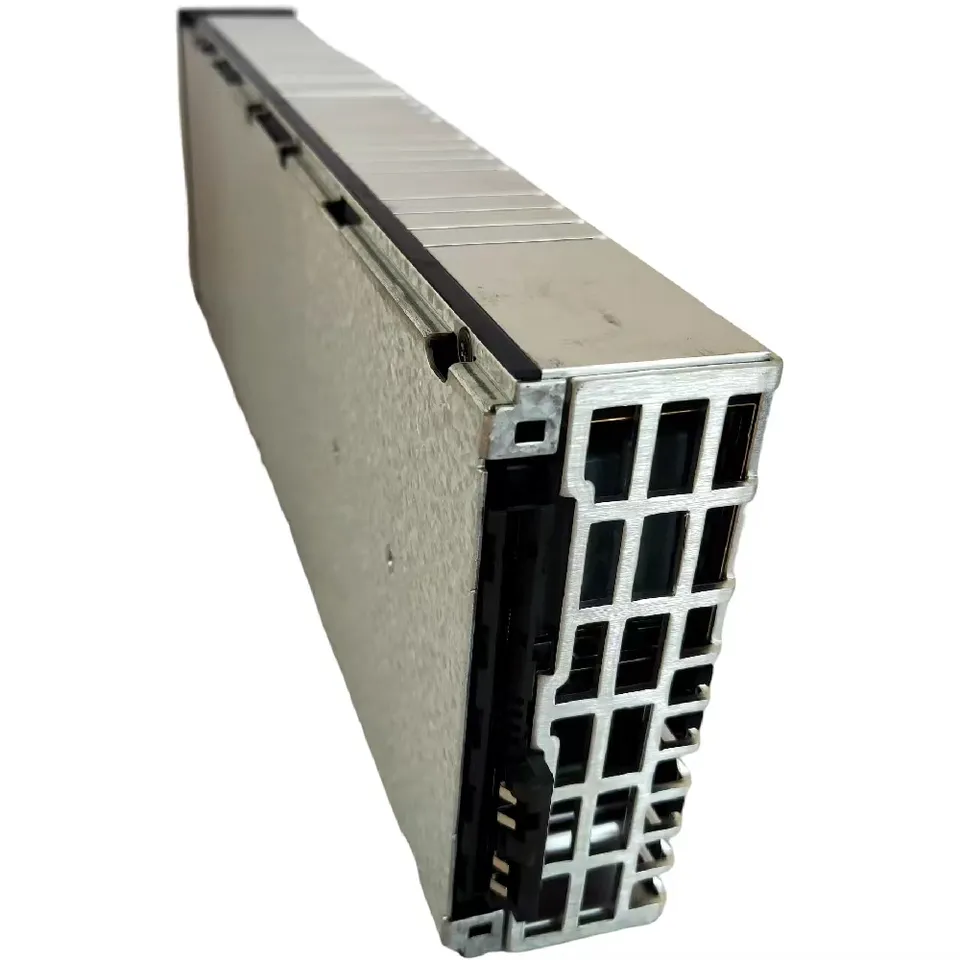

Flatpack2 48V-60V/2000W HE
Reliable high efficiency rectifier for industrial applications.

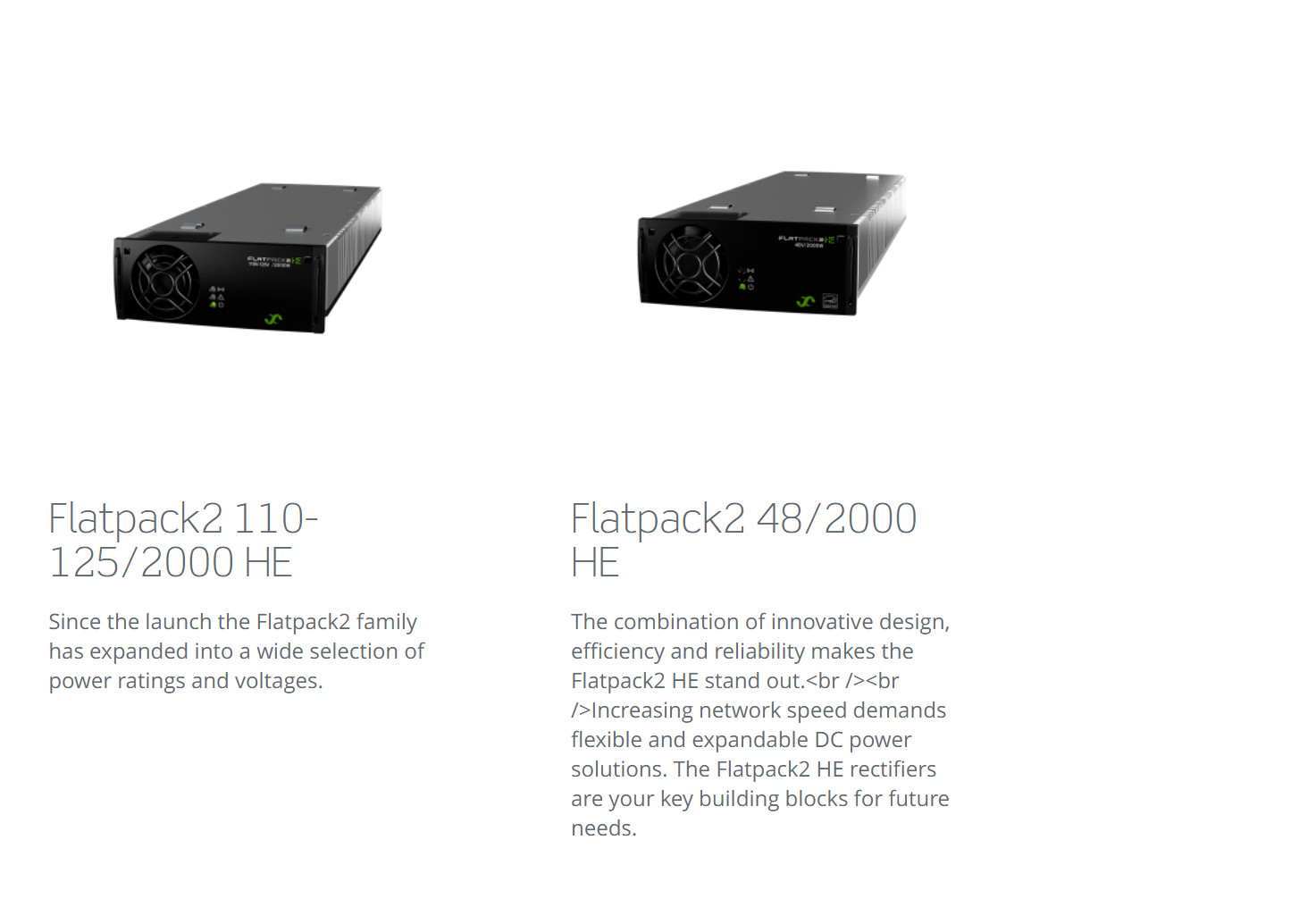

Flatpack2 48V-60V/2000W HE
Since the launch the Flatpack2 family has expanded into a wide selection of power ratings and voltages. The Flatpack2 48V-60V/2000W HE is a cost efficient rectifier for 48V and 60V lead acid battery systems as well as 48V NiCad.
Key features
l High efficiency – 96.2 %
l Proven reliability
l High power density
l Application flexibility - 2kw to multicabinet installations
l Modular design - MTTR and LT5mins
l AcceptsDC input (DC/DC converter)
l Global compliance (CE, UL, NEBS)
l Marineand offshore certifications
l Patented technology

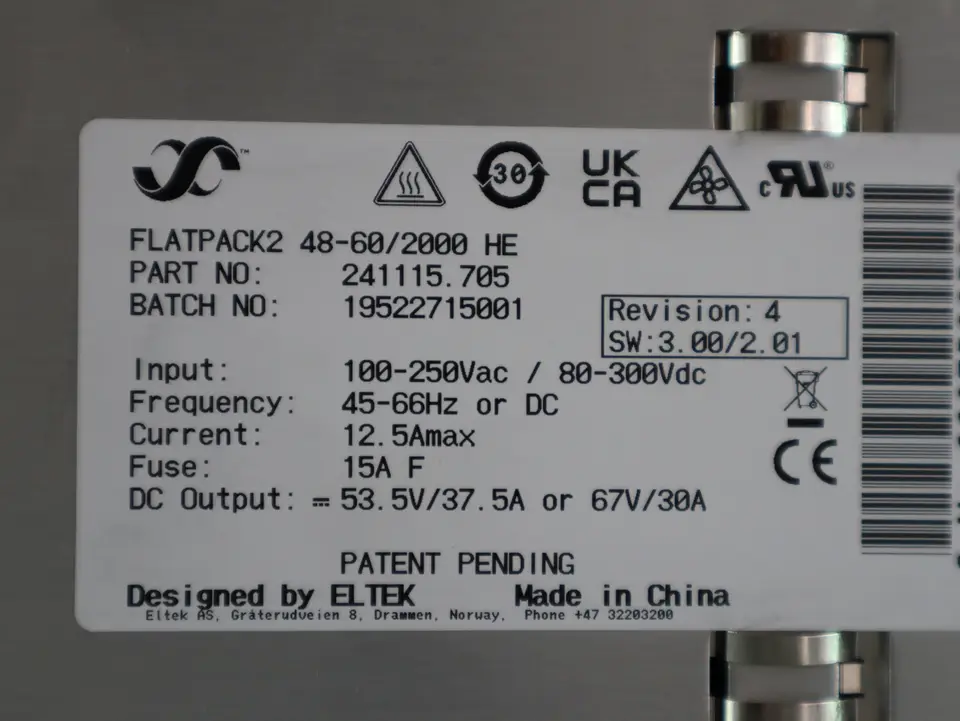

Parameters :
|
| Model 48-60/2000 HE |
| Part number 241115.705 |
| INPUT DATA |
| Voltage (nominal) 185 - 275 VAC / 185 - 275 VDC |
| Voltage (operating range) 85 - 300 VAC / 80 - 300 VDC |
| Current (maximum) @ nominal input, full load 11.6 ARMS |
| Frequency 45 - 66 Hz / 0 Hz |
| Power Factor > 0.99 at 50% load or more |
| THD < 5% at 100% load |
| Protection Fuse in L & N, Varistor, Shutdown when input voltage is out of operating range |
| OUTPUT DATA |
| Voltage (default) 1) 53.5 VDC (67 VDC in 60V mode) |
| Voltage (adjustable range) 1) 39.9 - 72 VDC |
| Power (maximum) @ nominal input 2000 W (@VOUT ≥ 48VDC) |
| Power @ 85 VAC 750 W |
| Current (maximum) @ nominal input 41.6 A (@VOUT < 48VDC) |
| Hold up time, 1500W output power >20ms; output voltage > 53.5 VDC (60V mode) |
| Current sharing (10 - 100% load) ±5% of maximum current from 10 to 100% load |
| Static Voltage regulation (10 - 100% load) ±0.5% |
| Dynamic Voltage regulation ±5.0% for 10-80% or 80-10% load variation, regulation time < 50ms |
| Ripple & noise < 150 mVPP , 30 MHz bandwidth / < 2 mVRMS psophometric |
| Protection Fuse , Short circuit proof, High temperature protection, Over voltage Shutdown |
| OTHER SPECIFICATIONS |
| Efficiency 96.2 % |
| Isolation 3.0 kVAC - input to output, 1.5 kVAC - input to earth, 500 VDC - output to earth |
|
Low / high input voltage shutdown, High / low temperature shutdown, Rectifier
Alarms: Red LED Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm, CAN bus failure
|
|
Rectifier in power de-rate mode, Remote output current limit activated, Input
Warnings: Yellow LED voltage out of range, flashing at overvoltage, Loss of CAN communication with
controller
|
| Normal operation: Green LED |
| MTBF (Telcordia SR-332 Iss.I method III (a)) >350 000 (@ Tambient : 25 °C) |
| Operating temp. (5-95% RH n.cond. hum.) -40 to + 75°C [-40 to +167°F] |
| Max output power de-rates above temp / to 45°C [113°F] / 1200W @ 75°C[167°F] |
| Storage temperature -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions[WxHxD] / Weight 109 x 41.5 x 327mm (4.25 x 1.69 x 13”) / 1.950 kg (4.3lbs) |
| DESIGN STANDARDS |
| Electrical safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 60950-1:2013 UL 60950-1:2011 |
|
EMC EN 61000-6-1:2007, -6-2:2005, -6-3:2007 + A1:2011, -6-4:2007 + A1:2011,
IEC 61000-6-5: 2015, ETSI EN 300 386:2.1.1
|
| Marine DNVGL-CG-03392) |
|
ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3)
Environment 2011/65/EU (RoHS) & 2012/19/EU (WEEE)
Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other
operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised
|
|
1) OVS setting from controller select mode: OVS≤59.5V = 48V mode (42-58V), 59.5V<OVS<70.85 = 48V NiCad mode (39.9-66V) and OVS≥70.85V = 60V mode (52.5-72V). When de-energized module will return to 48V mode.
2) Only valid for part number 241115.705M
|
