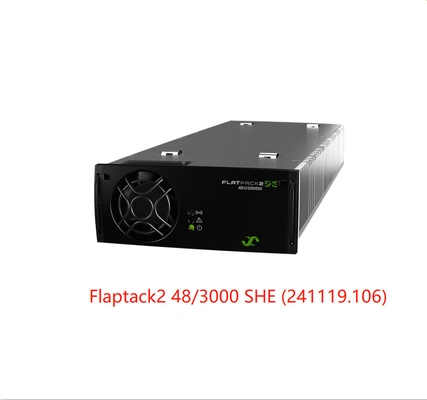

Eltek DC rectifeirs Flatpack2 48/3000 SHE 48Vdc 3000W module (Part No.:241119.106)
Flatpack2 48/3000 SHE
The Flatpack2 48/3000 Super HE is contributing to setting the new industry standard for efficiency in the DC power market. With an efficiency of 97.8% the Super HE is a premium rectifier particularly suitable for markets and applications where the energy is costly. In grid connected applications the payback time is down to 2 years compared to standard HE rectifiers, and in hybrid applications even faster.
Super High Efficiency (SHE) rectifier for Telecom Applications
The Flatpack2 3000/48 Super HE is fully compatible with Flatpack2 and Flatpack2 HE systems and can replace any 3kW Flatpack2 module.
Key features
- Super high efficiency - 97.8%
- High power density - 33 W/inch3
- Compatible with existing systems
- Global compliance
- Patented technology
- Hot pluggable
Parameters :
|
| Model |
48/2000 SHE |
48/3000 SHE |
| Part number |
241115.106 |
241119.106 |
| INPUT DATA |
| Voltage (nominal range) |
185 - 264 VAC |
206 - 264 VAC |
| Voltage (operating range) |
85 - 264 VAC |
| Frequency |
45 - 66 Hz |
| Maximum current |
11.6 ARMS |
16 ARMS |
| Protection |
Fuse in Live, varistor for transient protection, shutdown when VIN is out of range |
| OUTPUT DATA |
| Voltage (default) |
53.5 VDC |
| Voltage (adjustable range) |
43.21) - 57.6 VDC |
| Max power, nominal input |
2000 W |
3000 W |
| Max power, de-rated @VIN = 85 VAC |
850 W |
1000 W |
| Max current, @VOUT = 48 VDC |
41.7 A |
62.5 A |
| Current sharing |
±5.0% of max current |
| Static voltage regulation (10-100% load) |
±0.5% |
| Dynamic voltage regulation |
±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms |
| Hold up time, @100% load |
>10ms; output voltage > 42 VDC |
| Ripple |
<150 mVPP , 30 MHz bandwidth |
|
Protection
|
Overvoltage shutdown, short circuit proof, high temperature, hot plug-in inrush current limiting, fuse |
| OTHER SPECIFICATIONS |
| Peak Efficiency |
97.8 % |
|
Isolation
|
3.0 kVAC – input to output
1.5 kVAC – input to protective earth
0.5 kVDC – output to protective earth
|
|
Alarms (Red LED)
|
Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure |
|
Warnings (Yellow LED)
|
Rectifier in power derate mode, Remote current limit activated, Input voltage out of range, flashing at overvoltage |
| Normal (Green LED) |
Input and output ok |
| MTBF (Telcordia SR-332 Iss.3 method II Case L1) |
1 900 000 hours |
| Altitude |
Up to 4000m |
| Operating temperature (5 - 95% RH non-cond.) |
-40 - 75°C [-40 - 167°F ] |
| Max output power de-rates above temp / to |
45°C [+113°F] / 1350 W |
45°C [+113°F] / 1800 W 2) |
| Storage temperature |
-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions[WxHxD] / Weight |
109 x 41.0 x 327mm [4.25 x 1.61 x 13”] / 2.050 kg [4.5lbs] |
| DESIGN STANDARDS |
| Electrical safety |
EN 62368-1:2020+A11:2020, IEC 62368-1:2018, UL 62368-1:2019 |
|
EMC
|
EN 61000-6-1:2019, -6-2:2019, -6-3:2007+A1:2011+A2:2012+AC:2012, -6-4:2019
ETSI EN 300 386 V.2.2.0:2020, FCC CFR 47 Part 15:2020
|
|
Environment
|
ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Parts of Class 3.23)) EU 2015/863 (RoHS) & 2012/19/EU (WEEE)
Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised
|
|
1) Stand-by / test operation (VOUT < 48VDC) limited for VIN > 230 VAC
2) When input mains voltage is below 210 VRMS temperature derating will start at 40 °C and 1500 W will be available at 75 °C
3) Tested according to Temperature, RH and Vibration
|
