Home /Products/Outdoor Telecom Cabinets/Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A

Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A

1
MOQ
Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A
Features Gallery Product Description Request A Quote
Features
Specifications
Brand: Eltek
Part No.: CTO31240.nnnn
Protection Level: IP65
Type: 36KW Outdoor Cabinet
Rectifeirs: FP2 Rectifeirs 2000W /3000W
Product Name: Telecom Outdoor Cabinet
Application: Telecom, Railway Station, Base Station; Outdoor Cabinet For BTS
Size: Type Enclousre
Service: OEM Or ODM
Cooling System: Aircon Or Heat Exchanger
Warranty: 3 Years
Input Voltage Max: 264Vac
DC Intput Voltgae: 57,6 VDC
Dimension: 705 X 2068 X 831 Mm
Weight: 168 Kg
Highlight:

Outdoor Telecom Cabinets 48Vdc 700A

,

Eltek 36KW street cabinets telecoms

,

street cabinets telecoms 48Vdc 700A
Basic Infomation
Place of Origin: CN
Brand Name: Eltek
Certification: CE.UL
Model Number: CTO31240.nnnn
Payment & Shipping Terms
Delivery Time: 8-10 weeks
Payment Terms: L/C,T/T
Supply Ability: 400 sets /month
Product Description
Eltek Flatpack2 36KW Outdoor Cabinet with Type 4 Enclosure -48Vdc 700A Cabinet for Telecom (CTO31240.nnnn)
Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A 0
Product Overview

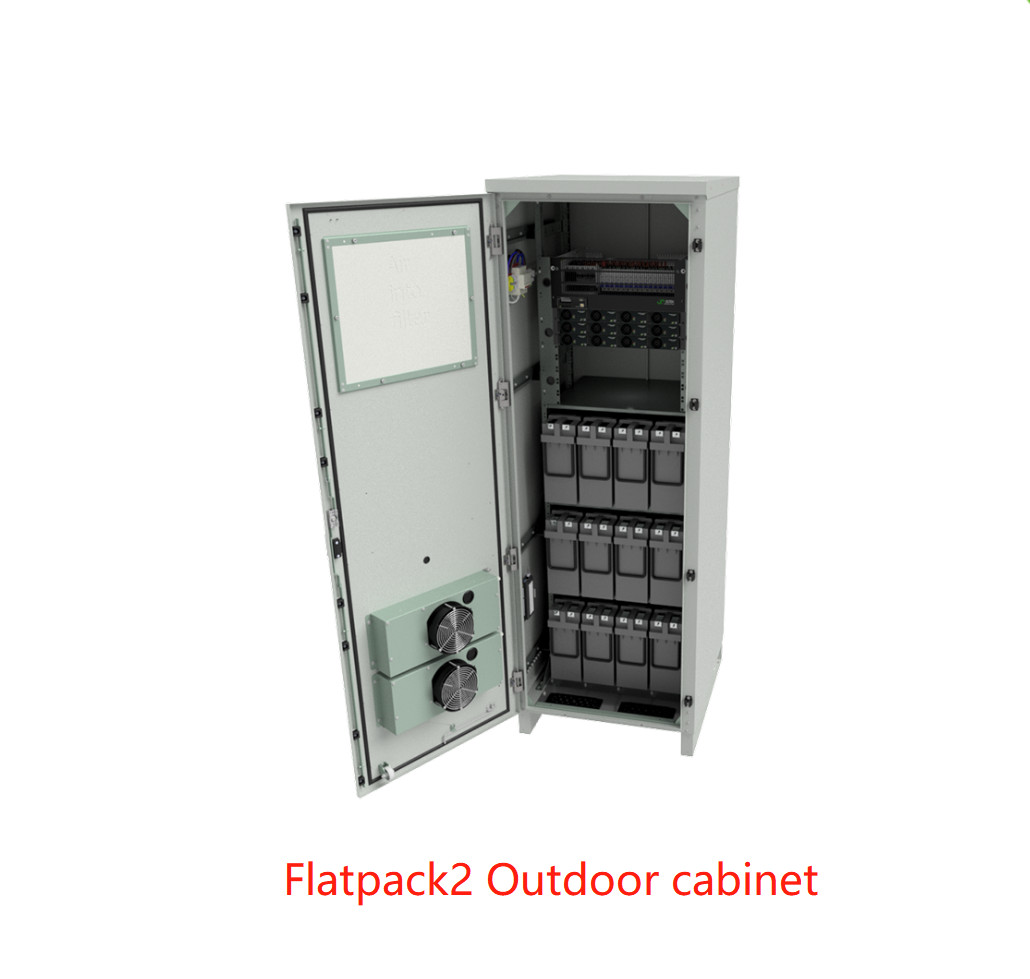

The Eltek Flatpack2 36KW outdoor cabinet combines cost-effective design, power density, and reliability for unparalleled network availability. Designed for telecom applications with IP55 protection, this system features our Type 4 enclosure platform that can be tailored to specific requirements.

Key Features
  • Complete outdoor power system solution
  • Smartpack R controller for advanced management
  • Ethernet port for remote monitoring and control
  • Super High Efficiency rectifiers
  • Hot pluggable modules for easy maintenance
  • 8x battery breaker positions
  • 16x load MCB positions
  • IP55 protection rating
Technical Specifications
Attribute Value
Brand Eltek
Part No. CTO31240.nnnn
Protection Level IP65
Type 36KW Outdoor cabinet
Rectifiers FP2 rectifiers 2000W/3000W
Applications Telecom, Railway Station, base station
Cooling System Aircon or heat exchanger
Warranty 3 years
Input Voltage Max 264Vac
DC Input Voltage 57.6 VDC
Dimensions (W×D×H) 705 × 2068 × 831 mm
Weight 168 kg
Detailed Parameters
Parameter Specification
Model 36KW
Power Module Flatpack2 48/3000 SHE
Input Voltage Range/Frequency 85-264 VAC / 45-66 Hz
Output Voltage -48 VDC
Maximum Load Current 700 A
Operating Temperature -40 to +45°C
Dimensions 705 × 831 × 2068 mm
Additional Images
Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A 1 Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A 2 Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A 3 Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A 4
Frequently Asked Questions
What measures do you take to maintain product quality?

Our quality assurance process includes comprehensive testing before shipping. We conduct load tests, full-load tests, and current sharing tests to verify each product meets our stringent standards.

Is there a minimum order quantity?

We don't impose minimum order quantities. Pricing and delivery schedules may vary based on order size.

What makes your company stand out?

We maintain robust inventory levels and offer customized solutions tailored to specific customer requirements.

Can I request product samples?

Yes, samples are available at standard bulk rates with freight charges to be covered by the customer.
