Eltek Telecom Enclosure Indoor Open Frame Cabinet for Communication filed with battery or Powercore
Eltek Telecom Enclosure Indoor Open Frame Cabinet for Communication filed with battery or Powercore

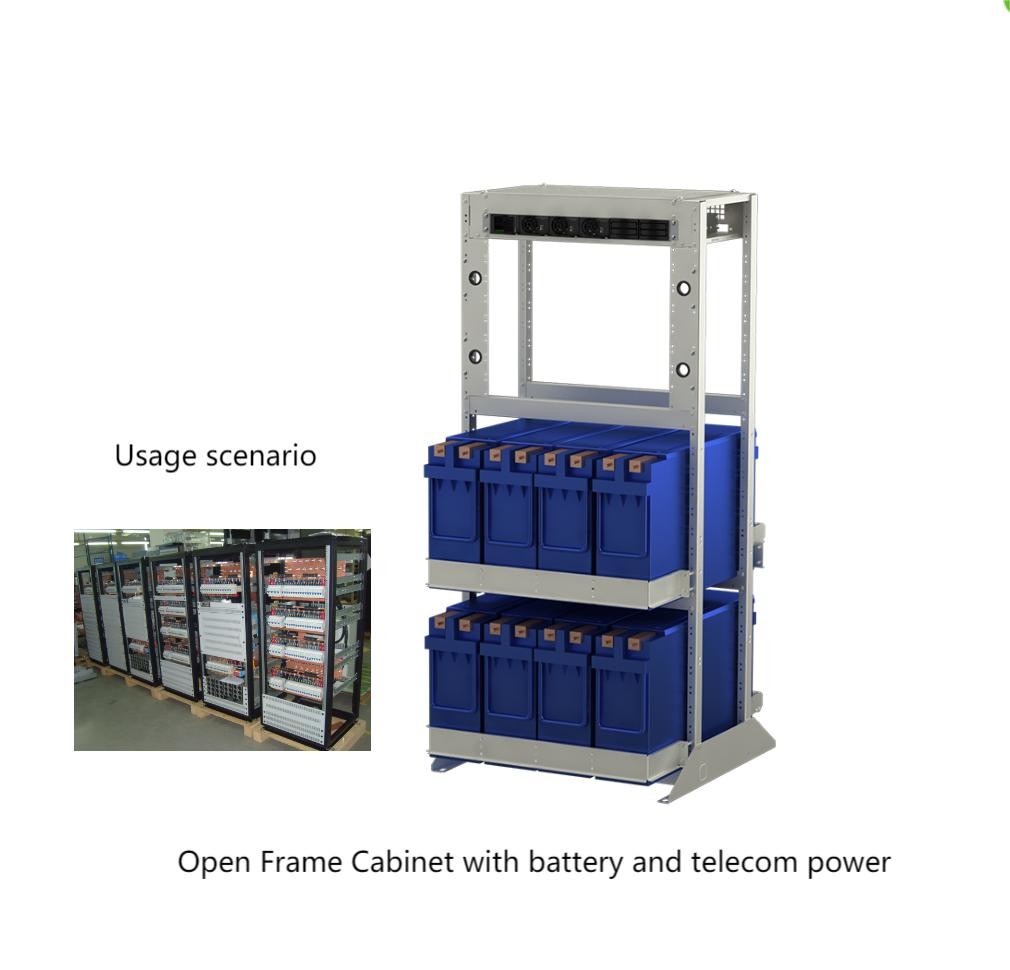

Open Frame-based Power Cabinets are suitable for telecom applications. With focus
on simple handling and easy installation, the cabinets are delivered as flatpacked, with or
without power core.
APPLICATIONS
The Open Frame Cabinets (OFC) are designed to meet requirements for indoor telecom
applications, with special focus on quick and simple installation.
The Open Frame Cabinets (OFC) are complete, flatpacked cabinets (or systems if
delivered with power core) that can be hand-carried to the site. The principle is
simplicity, right from the start. Even before installation, you will have reduced your
logistics costs.
The open frame design enables unrestricted air-flow which optimizes battery cooling
and ensures optimal operating conditions.
When delivered with an integrated power core you get a complete system, based on
cutting edge HE power conversion technology with top class specifications and
outstanding performance. Not one compromise when it comes to quality, yet
assembled and installed within 15 minutes!
AVAILABLE VERSIONS:
·

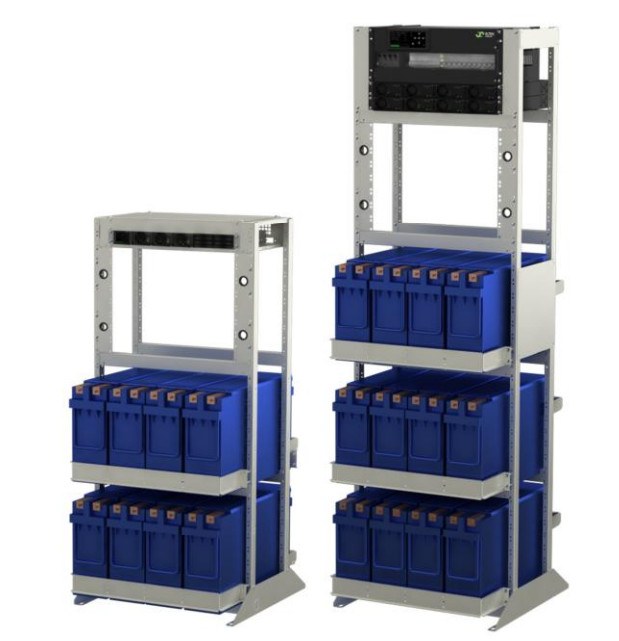

1300x600x600mm (53x24x24inch)
·
1913x600x600mm (75.3x24x24inch)
KEY FEATURES
- · OPEN-FRAME DESIGN
- - Easier battery installation
- · UNRESTRICTED AIR-FLOW
- · FLATPACKED SHIPPING
- · HAND CARRY INTO THE SITE
- · LIGHT WEIGHT
- - 18 kg (1.3m model)
- - 26 kg (1.9m model)
- · QUICK AND SIMPLE INSTALLATION
- - Assembly time is less than 15 minutes
| |
| Model |
|
1,3m |
|
1,9m |
|
| CABINET CONFIGURATION |
| Number of battery shelves (including battery support bracket) |
2x 8U |
3x 8U |
|
Customer equipment space 23 inch
(including 8U 23 to 19 inch adapter kit for fixing 3 rd party equipment)
|
1x 8U
|
| PHYSICAL SPECIFICATION |
| Height |
1300 mm (54 inch) |
1913 mm (75.3 inch) |
| Width |
600 mm (24 inch) |
| Depth |
600 mm (24 inch) |
|
Weight
- including battery support bracket and 23 to 19 inch adapters
- not including power core and shipping pallet
|
18 kg (39,7 lbs)
|
26 kg (57,34 lbs)
|
| CONSTRUCTION |
| Material |
Galvanized steel |
| Static load |
268 kg per battery shelf |
| MISCELLANEOUS |
| Designed to use with power supply system |
Flatpack S |
Flatpack 2 |
| Shipping pallet |
Shipments are made in an upright position with units fixed on a
pallet
|
| OPTIONS |
| Part No. |
Description |
|
Weight |
| 300561 |
Kit: Battery support bracket OFC |
|
0,6 kg (1.3 lbs) |
| 324954 Kit: Adapter 8U 23to19in OFC caged 0.7 kg (1.5 lbs) |
| various |
FPS or FP2 power core |
|
various |
| ORDERING INFORMATION |
| Part No. |
Description |
|
MOQ |
| 300563 |
Kit: 9xOFC 1.3m packed on pallet |
|
1 |
| 325007 |
Kit: 9xOFC 1.9m packed on pallet |
|
1 |
| CTOxxxx.xxxx |
Cabinet with power core
(to be ordered through Creator)
|
|
1 |
