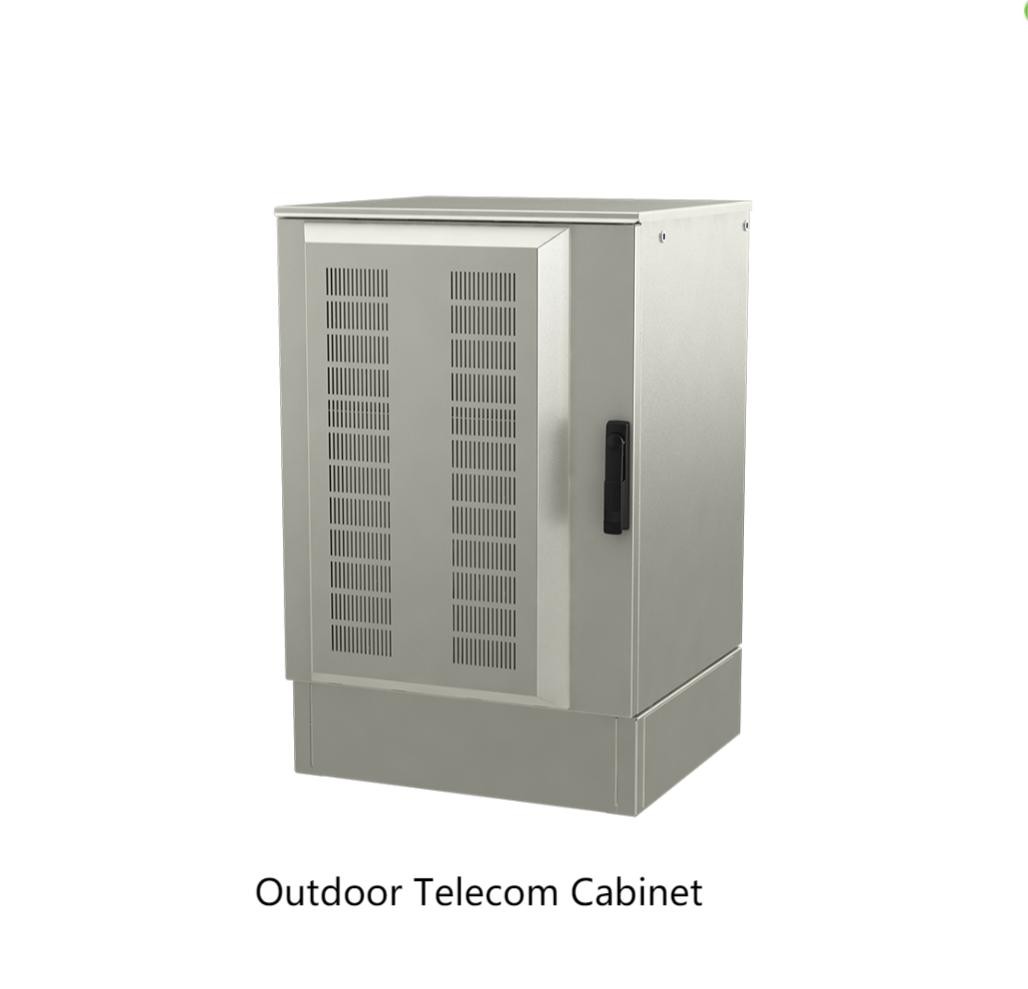

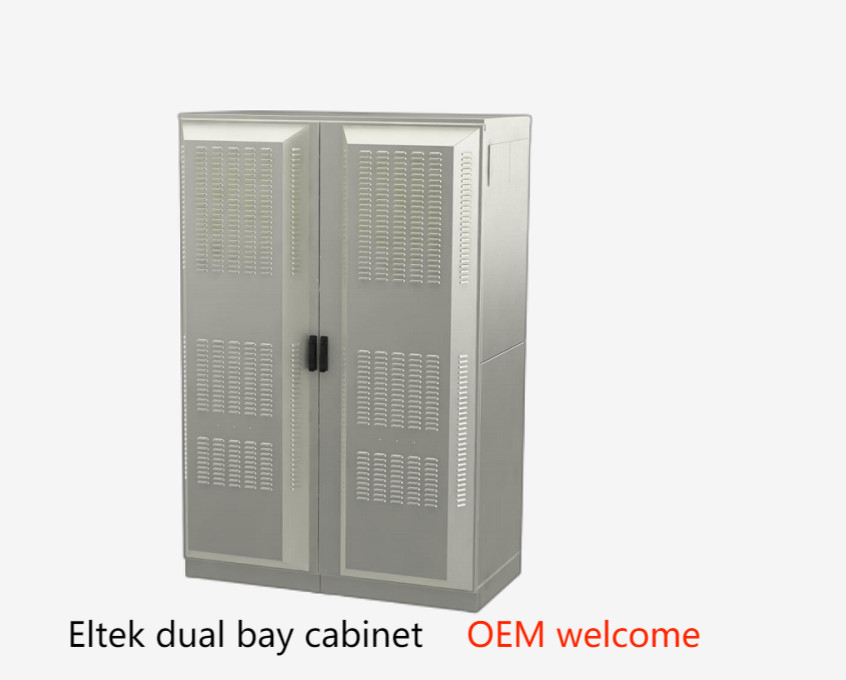

Model |
15U |
22U |
|
| PHYSICAL SPECIFICATIONS |
|
|
|
Exterior Height |
743mm (29,3”) 1047,5mm (41,2”) |
|
|
Exterior Width |
586mm (23,1”) 586mm (23,1”) |
|
|
Exterior Depth * |
543mm (21,4”) 543mm (21,4”) |
|
|
Net weight* |
20kg (44,libs) 24kg (52,9lbs) |
|
|
Usable Mounting Height |
12U (533mm / 21,0”) 19U (844mm / 33”) |
|
|
* info does not contain thermal management option |
|
| THERMAL MANAGEMENT OPTION! |
|
|
|
Fan and Filter Solution
- Cooling capacity (at AT=10°C)
- Fan specification
- Fan speed control
- Filter specification
- Physical information
|
700W
48Vdc / 76W / IP44
Temperature regulated
Progressive dump filter; 0,1m2. Filter class F5 (EN 779)
Adds 53mm (2,1”)to cabinet depth, adds 8,4kg (18.5lbs) to cabinet weight.
|
|
|
Air Conditioning unit (AC powered)
- Cooling capacity (at 35C/35C)
- Heating capacity
- Power input
- Physical information
|
570W at 50Hz / 645W at 60Hz
500W built-in
230Vac +/-10%, 50/60HZ
Adds 263mm (10,4”) to cabinet depth, adds 28,4kg (62,6lbs) to cabinet weight.
|
|
|
Air Conditioning unit (DC powered)
- Cooling capacity (at 35C/35C)
- Heating capacity
- Power input
- Physical information
|
520W
500W built-in
48Vdc nominal (46Vdc - 56Vdc)
Adds 212mm (8,3”)to cabinet depth, adds 23kg (50,7lbs) to cabinet weight.
|
|
|
All Models |
|
| CONSTRUCTION SPECIFICATIONS |
|
|
|
Skin material
Frame Material
Powder-Coat Paint
Insulation
|
1,5mm (0,06") thick aluminum (lightweight, corrosion-resistant) Galvanized Steel
Outdoor Polyester light gray RAL 7035 coating
Closed Cell Insulation (optional)
|
|
|
Rail mounting Pattern |
EIA Standard with holes for Cage nuts |
|
|
|
Orientation |
19” mount |
|
|
| DOOR SPECIFICATIONS |
|
|
|
Latches |
Two point latch, with optional euro lock cylinder |
|
|
|
Gasket |
UL rated for outdoor use |
|
|
|
Door Stop / Door Stay |
Wind latch to hold door during maintenance (120°) |
|
|
| MISCELLANEOUS SPECIFICATIONS AND OPTIONS |
|
|
Cable Glands |
Bottom Cable Access through lx FL21 cut out |
Different options available |
|
|
Battery trays |
19” tray(s)
Space (W x D): 448,5mm x 398mm (17,6” x 15,6”) Max. 150kg (330 lbs) weight load
|
Each Tray weighs 2,1kg (4,6lbs) |
|
|
Ground Bar |
4xM6 inserts on 19n rails, left/right |
|
|
|
Heater |
Optional 500W |
Kit weighs 1,3kg (2,9lbs) |
|
|
Plinth |
Optional 152mm (6”)high plinth.
Foot Print (W x D): 579mm x 517mm (22,8” x 20,4”)
|
Weighs 7,6kg (16,7lbs) |
|
|
Mounting Brackets |
Stainless Steel wall or pole
Pole diameter 0 60-115mm
Max 200Kg (441 lbs) weight load
|
Weighs 11kg (24,2lbs) |
|
|
Lifting Ears |
4 detachable sheet metal ears connected with 4x M8 bolts |
|
|
|
Packaging Information |
Shipments made in an upright position on a wooden pallet |
Weighs 7kg(15,4lbs) |
|
| DESIGN STANDARDS |
|
|
|
Electrical |
IEC 60950, UL 60950*, CAN CSA-C22.2 No. 60950-1-03 (Depending on Equipment Installed) |
|
|
|
EMC |
ETSI EN 300 386 V.l.3.1, EN 61000-6-3, EN 61000-6-2 |
|
|
|
Environment |
ETS 300 019, Ingress Protection: EN 60529 IP55 |
|
|
|
|
|
| Doc234747.DS3-revl0 |
Specifications are subject to change without notice |
