UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13

1pcs
MOQ
Inquiry
Price
UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: Vertiv
Model Number: STS-10/32A
Rated Current: 10A
Max. Current: 32A
IP Level: IP11
Product Name: STS AC220V Sts Single-phase STS Static Transfer Switch
Type: High Voltage
Rated Current: 10A 16A 32A
Rated Voltage: AC 220V
Highlight:

10A 208V static transfer switch

,

dual power auto changeover switch

,

IEC C13 static transfer switch
Basic Infomation
Place of Origin: China
Brand Name: Vertiv
Model Number: UF-LTS10-1P
Payment & Shipping Terms
Packaging Details: Cartons
Delivery Time: 5-6 weeks
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description
UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch
Automatic changeover switch with IEC C13 connector for reliable power source switching
UF-LTS10-1P Static Transfer Switch product overview
Product Overview
The Static Transfer Switch (STS) provides dual power sources for critical single-power source loads with automatic transfer functionality. When the main power source operates normally, the load is powered by the main source. In the event of main power source failure, the load automatically transfers to the backup power source quickly. Once the main power source returns to normal operation, the load automatically transfers back to the main power source.
Technical Specifications
Electrical Parameters
Items (10A, 16A) Specifications (32A) Specifications
Input Input source: Two AC inputs
Input mode: 1Ф+N+PE
Rated voltage: 220/230Vac
Rated frequency: 50/60Hz
Voltage range: 150~300Vac
Frequency range: Rated frequency±5Hz
Voltage distortion <10%
Output Power factor: 0.75~1.0 leading or lagging Power factor: 0.8~1.0 leading or lagging
Overload capability: 125%, 30min
Efficiency (100% linear load): 0.99 Efficiency (100% linear load): 0.98
Transfer Number of poles: 2 poles
Interrupt time for automatic transfer: <6ms(typical value), <11ms(Max value)
Environmental Parameters
Items Normal range
Operating temperature 0~40°C
Storage temperature -40~70°C
Relative humidity 5~95%, no condensation
Elevation 3000m
Mechanical Parameters
Dimensions (H × W × D) Weight
44mm×430mm×250mm (10A, 16A) Pure weight: 4.5kg | Including parts: 5kg
84mm×430mm×340mm (32A) Pure weight: 5kg | Including parts: 6kg
Product Images

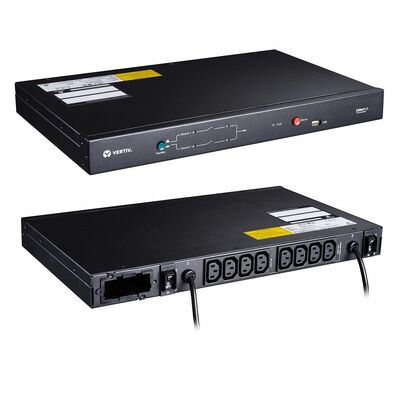

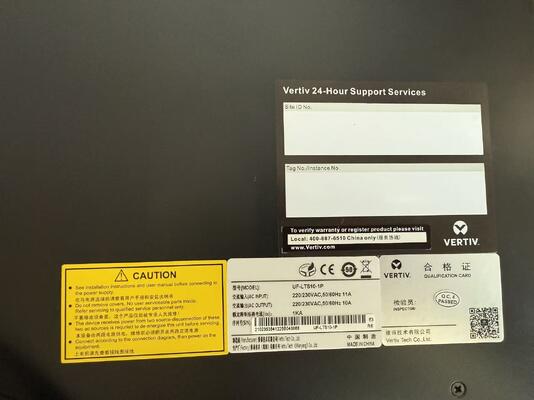

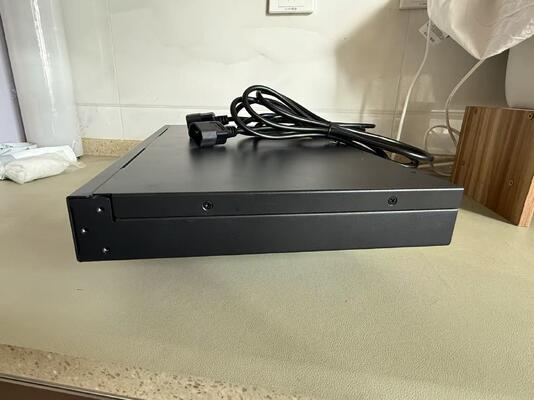

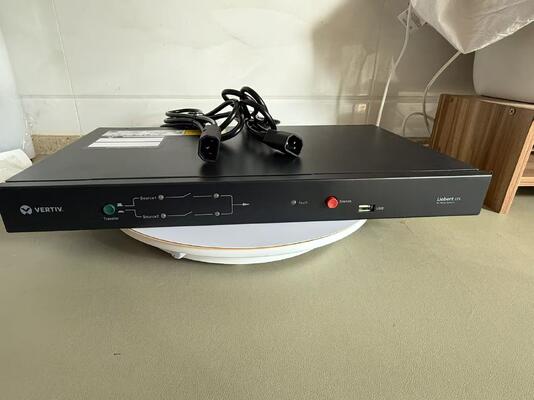

Static Transfer Switch front panel view Static Transfer Switch side view Static Transfer Switch rear connections Static Transfer Switch internal components Static Transfer Switch wiring diagram Static Transfer Switch installation example Static Transfer Switch operational display Static Transfer Switch technical specifications label
