Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W

1 piece
MOQ
1 USD
Price
Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W
Features Gallery Product Description Request A Quote
Features
Specifications
Brand: Mean Well
Product Name: DC /DC Converter
Model Name: SD-100-12
DC Input: 9.2V-132V
DC Output Power: 5V/12V/24V
Protection: Over Load/ Over Voltgae
Working Temp.: -10 ~ +60℃ (Refer To "Derating Curve")
Working Humidity: 20 ~ 90% RH Non-condensing
Storage: -20 ~ +85℃, 10 ~ 95% RH

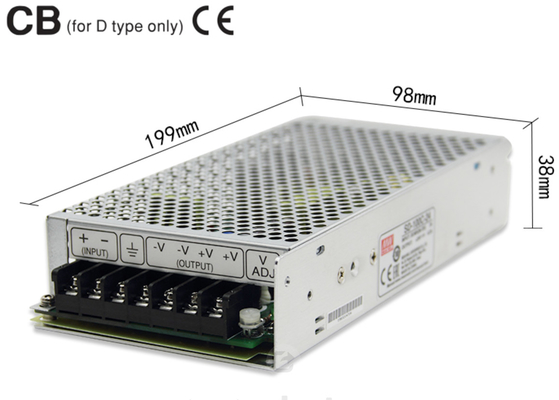

Size: 199*98*38mm (L*W*H)
Weight: 0.85kg
Highlight:

switching Power Supply 12V100W DC Conversion Module

,

SD-100C-12 switching power supply 12V100W

,

switching Power Supply 12V100W DC Conversion Module SD-100C-12 DC conversion module 12V100W
Basic Infomation
Place of Origin: CN
Brand Name: Mean Well
Certification: CE/UL
Model Number: SD-100-12
Payment & Shipping Terms
Packaging Details: wooden cartons
Delivery Time: 12-16 weeks
Payment Terms: L/C, T/T
Supply Ability: 3000 pieces per month
Product Description

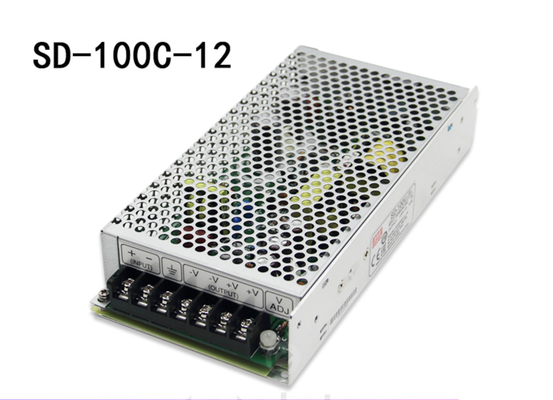

Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100WMean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W 0



Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W



Features :

  • 1.5~2KVAC isolation by models
  • 12V/0.25A auxiliary output for SD-500/1000



MODEL SD-100A-5 SD-100B-5 SD-100C-5 SD-100D-5 SD-100A-12 SD-100B-12 SD-100C-12 SD-100D-12 SD-100A-24 SD-100B-24 SD-100C-24 SD-100D-24











OUTPUT

 DC VOLTAGE 5V 12V 24V
RATED CURRENT 18A 20A 8.5A 4.2A
CURRENT RANGE 0 ~ 18A 0 ~ 20A 0 ~ 8.5A 0 ~ 4.2A
RATED POWER 90W 100W 102W 100.8W
RIPPLE & NOISE (max.) Note.2 100mVp-p 120mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 4.5 ~ 5.5VDC 11 ~ 16VDC 23 ~ 30VDC
VOLTAGE TOLERANCE Note.3 ±2.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.3% ±0.2%
LOAD REGULATION ±0.5% ±0.3% ±0.2%
SETUP, RISE TIME 2s, 50ms(only D mode) at full load
HOLD UP TIME (Typ.) 20ms(only D mode) at full load





INPUT

 VOLTAGE RANGE A:9.5 ~ 18VDC B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~ 144VDC or 85 ~ 132VAC
EFFICIENCY (Typ.) 78% 74% 75% 76% 82% 75% 77% 80% 84% 78% 81% 83%
DC CURRENT (Typ.) 9.7A/12V 4.8A/24V 2.4A/48V 1.8A/96V 10.4A/12V 4.8A/24V 2.4A/48V 1.8A/96V 10A/12V 4.8A/24V 2.4A/48V 1.8A/96V
INRUSH CURRENT (Typ.) D:18A/96VDC
LEAKAGE CURRENT <0.75mA/120VAC(SD-100D)



PROTECTION

 OVERLOAD 105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.75V/10% load 16.8 ~ 20V/10% load

31.5 ~ 37.5V

5% load

 31.5 ~ 37.5V/10% load
Protection type : Hiccup mode, recovers automatically after fault condition is removed





ENVIRONMENT

 WORKING TEMP. -15 ~ +60℃(SD-100A), -10 ~ +60℃(SD-100B/C/D) (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 50℃)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes



SAFETY & EMC

(Note 4)

 SAFETY STANDARDS IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020



OTHERS

 MTBF 2600.2K hrs min. Telcordia SR-332 (Bellcore) ; 399.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION 199*98*38mm (L*W*H)
PACKING 0.65Kg; 20pcs/13.8Kg/0.85CUFT
NOTE

1. All parameters NOT specially mentioned are measured at 12,24,48,96VDC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment.


Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W 1

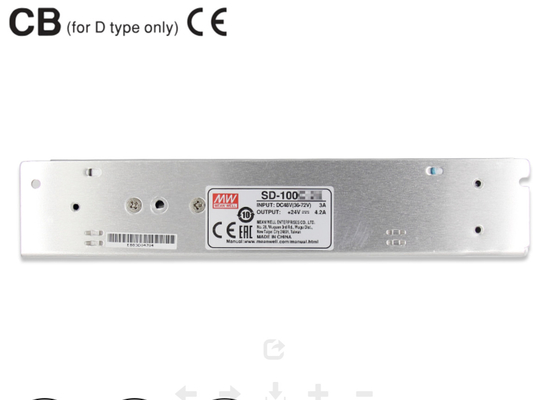

 Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W 2Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W 3Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W 4Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W 5Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W 6


Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W 7Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W 8

Mean Well Original Switch Power Supply SD-100C-12 DC conversion module 36-72VAC 12dc module 100W 9
