Name: Meanwell 1.15CUFT Power Supply Module SD-1000H-48 48Vdc 1000W
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: SD-1000H-48
Price: 1 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: Mean Well

Product Name: DC /DC Converter

Model Name: SD-1000H-48

DC Input: 19 ~ 72VDC

DC Output Power: 12V/24V/48V

Protection: Over Load/ Over Voltgae

Working Temp.: -10 ~ +60℃ (Refer To "Derating Curve")

Working Humidity: 20 ~ 90% RH Non-condensing

Storage: -20 ~ +85℃, 10 ~ 95% RH

Size: 295*127*41mm (L*W*H)

Weight: 1.94Kg; 6pcs/12.6Kg/1.15CUFT

Highlight:

1.15CUFT Power Supply Module 48Vdc 1000W

1.15CUFT Power Supply Module

1.15CUFT SD-1000H-48 48Vdc 1000W

Basic Infomation

Place of Origin: CN

Brand Name: Meanwell

Certification: CE/UL

Model Number: SD-1000H-48

Payment & Shipping Terms

Packaging Details: wooden cartons

Delivery Time: 12-16 weeks

Payment Terms: L/C,T/T

Supply Ability: 3000 pieces per month

Gallery

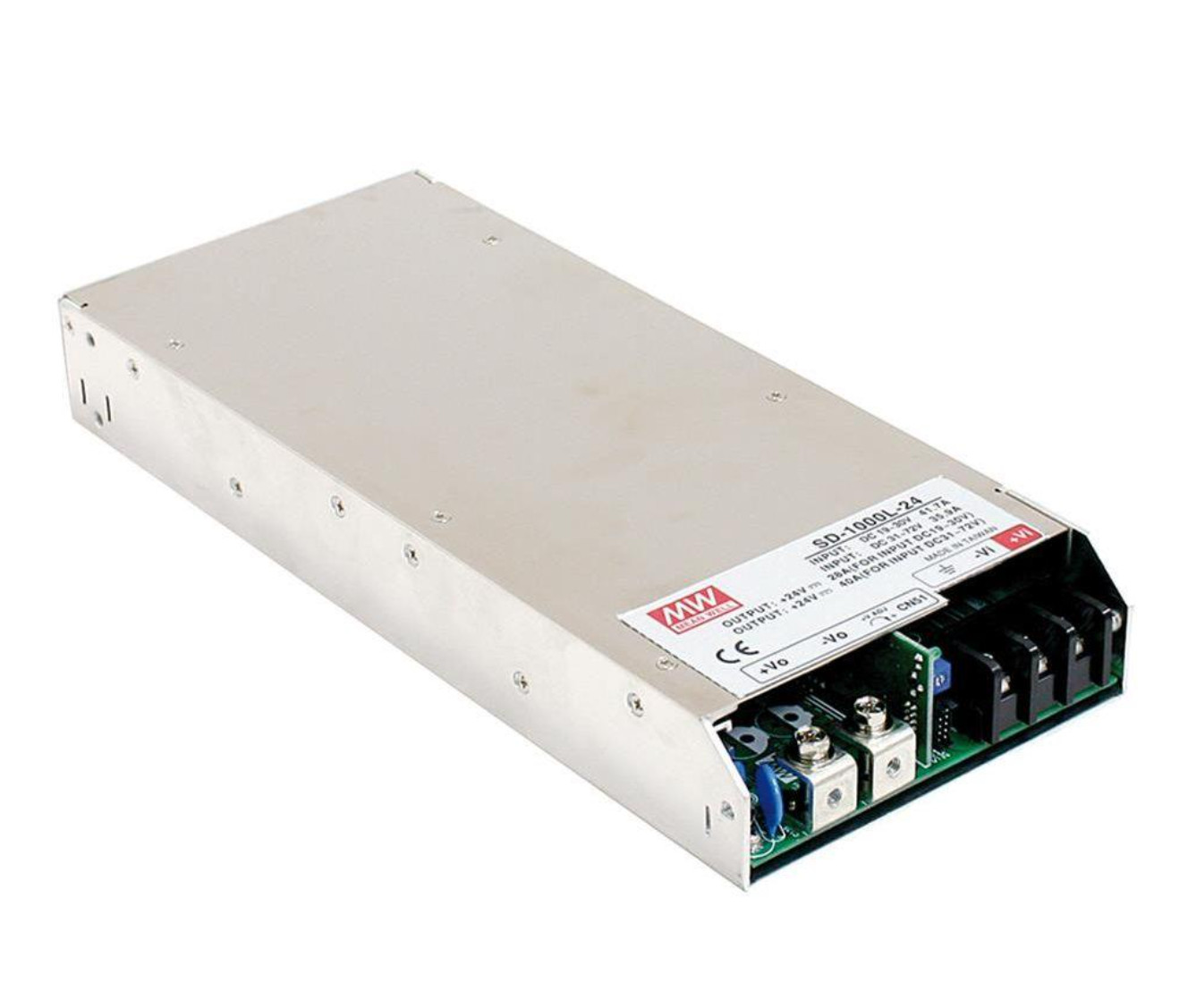

Meanwell 1.15CUFT Power Supply Module SD-1000H-48 48Vdc 1000W

Product Description

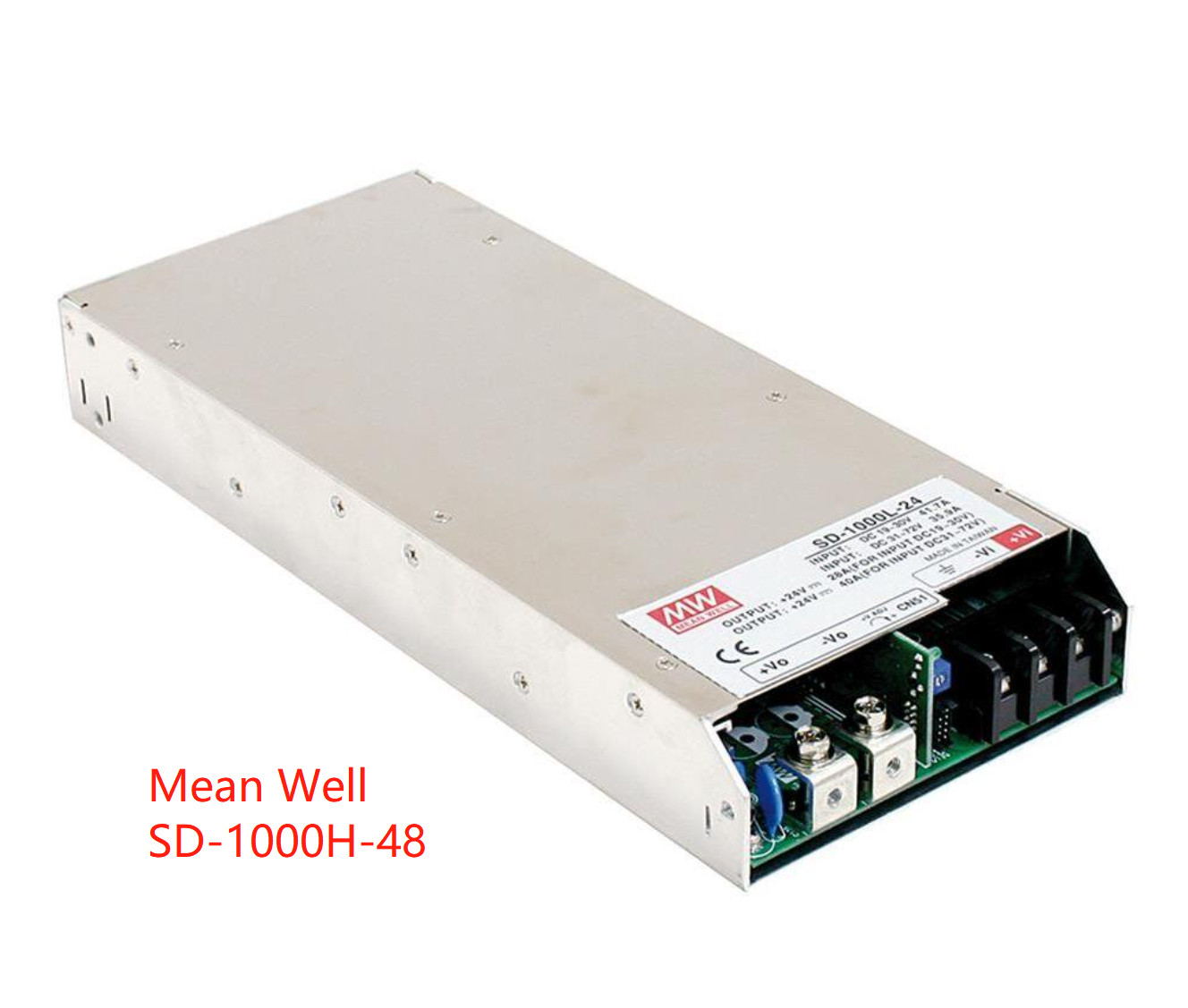

Meanwell 1.15CUFT Power Supply Module SD-1000H-48 48Vdc 1000W 0

Original Mean Well Power Supply Module SD-1000H-48V 48Vdc 1000W module

Features:

1U low profile 41mm
High power density 10.7 W/inch
2000Vac I/O isolation
Protections
Output Ok signal
Built in remot ON-OFF control
Built in remote sense function
Forced air cooling
12V 0.25A auxiliary output
3 years warranty

MODEL		SD-1000L-12	SD-1000L-24	SD-1000L-48	SD-1000H-12	SD-1000H-24	SD-1000H-48
OUTPUT	DC VOLTAGE	12V	24V	48V	12V	24V	48V
	RATED CURRENT	60A	40A	21A	60A	40A	21A
	CURRENT RANGE	0 ~ 60A	0 ~ 40A	0 ~ 21A	0 ~ 60A	0 ~ 40A	0 ~ 21A
	RATED POWER	720W	960W	1008W	720W	960W	1008W
	RIPPLE & NOISE (max.) Note.2	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p
	VOLTAGE ADJ. RANGE	11 ~ 15V	23 ~ 30V	46 ~ 60V	11 ~ 15V	23 ~ 30V	46 ~ 60V
	VOLTAGE TOLERANCE Note.3	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP, RISE TIME	500ms, 50ms at full load
INPUT	VOLTAGE RANGE Note.5	19 ~ 72VDC			72 ~ 144VDC
	EFFICIENCY (Typ.)	84%	88%	90%	85%	89%	92%
	DC CURRENT (Typ.)	23.5A/48VDC			11.6A/96VDC
	INRUSH CURRENT (Typ.)	-----			100A/96VDC
PROTECTION	OVERLOAD	105 ~ 125% rated output power
	OVERLOAD	Protection type : Constant current limiting, unit will shut down o/p voltage after about 5sec. Re-power on to recover
	OVER VOLTAGE	16 ~ 19V	30.8 ~ 35.2V	62 ~ 68V	16 ~ 19V	30.8 ~ 35.2V	62 ~ 68V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION	REMOTE ON/OFF CONTROL	Please refer to function manual
FUNCTION	OUTPUT OK SIGNAL	Open collector signal low when PSU turns on, maximum, sink current :10mA
ENVIRONMENT	WORKING TEMP.	-20 ~ +60℃ (Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH non-condensing
	TEMP. COEFFICIENT	±0.02%/℃ (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	IEC62368-1 CB approved by TUV, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
	WITHSTAND VOLTAGE	I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Compliance to BS EN/EN55032 (CISPR32), EAC TP TC 020
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020
OTHERS	MTBF	898.2K hrs min. Telcordia SR-332 (Bellcore) ; 106.7K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	29512741mm (LWH)
	PACKING	1.94Kg; 6pcs/12.6Kg/1.15CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 48, 96VDC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on

Meanwell 1.15CUFT Power Supply Module SD-1000H-48 48Vdc 1000W 2
