maintaining output stability even amidst fluctuating input conditions. Electrical noise, often a bane in power systems, is vanquished to near undetectable levels, creating a serene electrical environment. The high-efficiency conversion process operates like a well-oiled machine, maximizing power utilization while minimizing wastage, a boon for both energy conservation and cost savings.

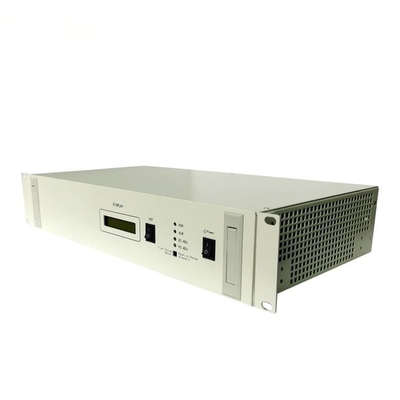

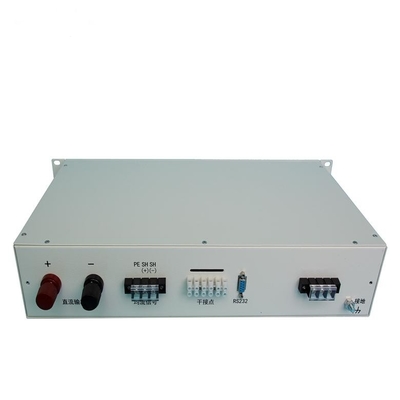

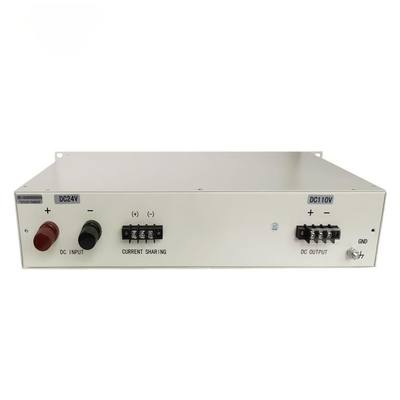

In the crucible of continuous operation and sweltering ambient temperatures, where many power solutions falter, the RCT2000D Series rackmount DC converters stand resolute. Built with rugged resilience in mind, they endure the rigors of demanding environments, providing unwavering reliability that mission-critical systems depend on.
Versatility is another of its hallmarks. With an expansive input voltage range accommodating 24, 48, 110, or 220 VDC (nominal) and seamless support for both positive and negative grounding setups, these converters are true chameleons in the power realm. They unfailingly produce pristine 24, 48, 110, or 220 VDC outputs, making them the go-to choice for power-hungry applications that brook no compromise on performance and precision.
Technical Parameter
|
Technical Data
|
|
|
D40-12-14
|
D50-12-14
|
|
INPUT
|
|
Voltage Range
|
90~135Vdc
|
|
Rated Voltage (Vdc)
|
110Vdc
|
|
DC Input Current
|
8.72A
|
10.9A
|
|
OUTPUT
|
|
Rated Voltage
|
24VDC
|
|
Voltage ADJ. Range
|
21~29VDC
|
|
Output Capacity
|
960W
|
1200W
|
|
Rated Output Current
|
0~40A
|
0~50A
|
|
Float Chg Voltage ADJ.Range
|
21V~29VDC
|
|
Equ. Chg Voltage ADJ.Range
|
21V~29VDC
|
|
Output Voltage Protection point
|
30Vdc±1V
|
|
Output Over Current Protection Point
|
±5%
|
|
Ripple & Noise(Max)
|
200mVp-p
|
|
Peak—peak noise
|
≤150mV
|
|
Voltage Tolerange
|
±1%
|
|
Line/Load Regulation
|
±0.5%
|
|
COMMUNICATION
|
|
|
Modbus RTU
|
Rs485
|
|
Dry Contact
|
Out Fail,Output Voltage Fail, TEMP Fail, Battery Fail.
|
|
PROTECTIVE FEATURE
|
|
Over Load Protection
|
Iout_Max±0.5A
|
|
Protection Type: Constant Current Limiting
|
|
Over Voltage Protection
|
60VDC
|
|
Protection Type:Shut Down O/P V.
Recovery Automatically after 60s
|
|
Over Temperaure Protection
|
85±5℃ Detect on Heatsink of Poer Transistor
|
|
Protection type:shut Down O/P V, Recovery after Temp. Normal Temp.
|
|
Short Circuit Protection
|
Aviailable
|
|
ENVIRONMENT
|
|
Operating Temp./Humidity
|
-20 ~ + 45℃/ 20~90% RH non- Condensing
|
|
Storage TEMP./Humidity
|
-40~+85℃/10~95%
|
|

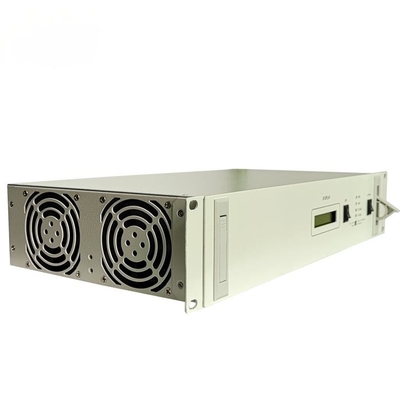

Cooling
|
Temperature control wind cooling ,Side to Side airflow
|
|
MTBF
|
>10,000 hours
|
|
SAFETY
|
|
Withst and Voltage
|
I/P-O/P:1.5KVAC I/P-FG: 0.5KVDC O/P-FG: 0.5KVDC
|
|
Solation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH
|
|
OTHERS
|
|
Dimension
|
W482 *D240*H88mm
|
|
Weight
|
8KGS
|
