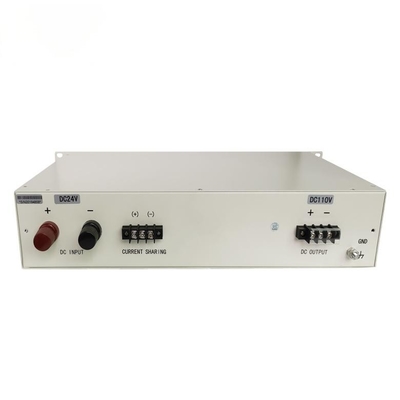

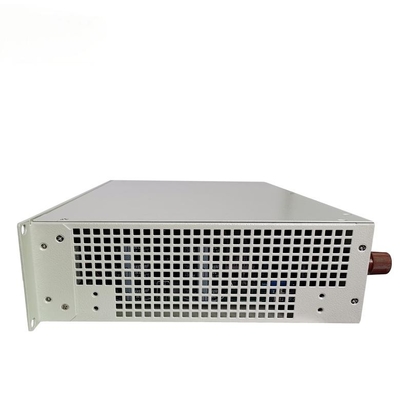

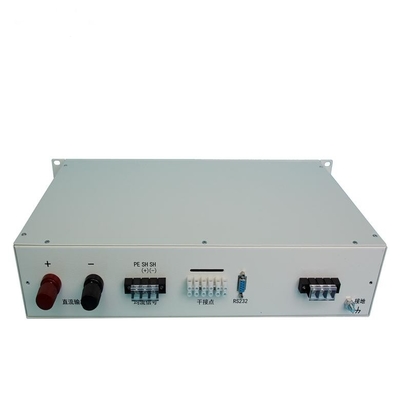

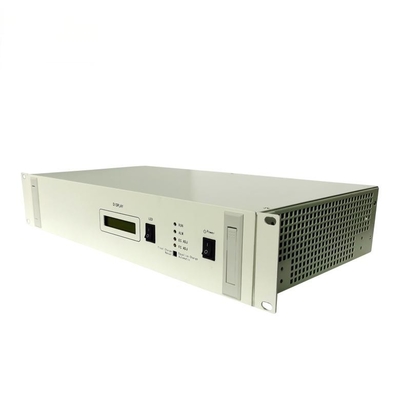

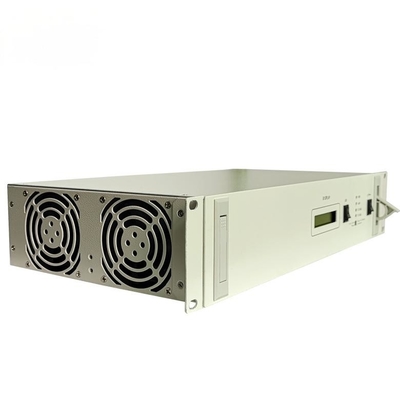

Step into the future of power conversion with the RCT2000D Series of isolated DC-DC converters. This technological tour de force shatters the limits of conventional power transformation, seamlessly turning the energy stored in batteries and a plethora of DC sources into a rock-solid DC output that engineers can rely on with absolute confidence.
The secret behind its unparalleled performance lies in its meticulously crafted, avant-garde design. Picture a digital guardian constantly monitoring and adjusting the voltage, maintaining a stability that’s on par with the most precise laboratory equipment. Electrical noise, which often disrupts sensitive electronic devices, is eradicated with surgical precision, creating an electrical environment so clean that even the most noise-intolerant components can operate at their peak. And when it comes to efficiency, the RCT2000D Series operates like a finely tuned engine, converting power with minimal waste and maximizing energy utilization.
In the punishing gauntlet of round-the-clock operation and scorching ambient temperatures, where lesser power converters would succumb, the RCT2000D Series rackmount DC converters thrive. Built with industrial-grade resilience, they’re engineered to deliver consistent, reliable performance, making them the backbone of critical infrastructure systems that simply can’t afford downtime.
With an incredibly broad input voltage spectrum, covering 24, 48, 110, or 220 VDC (nominal), and support for both positive and negative grounding setups, these converters are the ultimate power chameleons. No matter the power source or system configuration, they unfailingly produce pristine, unadulterated 24, 48, 110, or 220 VDC outputs, making them the indispensable choice for high-stakes applications that demand nothing but the best.
Technical Parameter
|
Technical Data
|
|
|
D40-12-14
|
D50-12-14
|
|
INPUT
|
|
Voltage Range
|
90~135Vdc
|
|
Rated Voltage (Vdc)
|
110Vdc
|
|
DC Input Current
|
8.72A
|
10.9A
|
|
OUTPUT
|
|
Rated Voltage
|
24VDC
|
|
Voltage ADJ. Range
|
21~29VDC
|
|
Output Capacity
|
960W
|
1200W
|
|
Rated Output Current
|
0~40A
|
0~50A
|
|
Float Chg Voltage ADJ.Range
|
21V~29VDC
|
|
Equ. Chg Voltage ADJ.Range
|
21V~29VDC
|
|
Output Voltage Protection point
|
30Vdc±1V
|
|
Output Over Current Protection Point
|
±5%
|
|
Ripple & Noise(Max)
|
200mVp-p
|
|
Peak—peak noise
|
≤150mV
|
|
Voltage Tolerange
|
±1%
|
|
Line/Load Regulation
|
±0.5%
|
|
COMMUNICATION
|
|
|
Modbus RTU
|
Rs485
|
|
Dry Contact
|
Out Fail,Output Voltage Fail, TEMP Fail, Battery Fail.
|
|
PROTECTIVE FEATURE
|
|
Over Load Protection
|
Iout_Max±0.5A
|
|
Protection Type: Constant Current Limiting
|
|
Over Voltage Protection
|
60VDC
|
|
Protection Type:Shut Down O/P V.
Recovery Automatically after 60s
|
|
Over Temperaure Protection
|
85±5℃ Detect on Heatsink of Poer Transistor
|
|
Protection type:shut Down O/P V, Recovery after Temp. Normal Temp.
|
|
Short Circuit Protection
|
Aviailable
|
|
ENVIRONMENT
|
|
Operating Temp./Humidity
|
-20 ~ + 45℃/ 20~90% RH non- Condensing
|
|
Storage TEMP./Humidity
|
-40~+85℃/10~95%
|
|
Cooling
|
Temperature control wind cooling ,Side to Side airflow
|
|
MTBF
|
>10,000 hours
|
|
SAFETY
|
|
Withst and Voltage
|
I/P-O/P:1.5KVAC I/P-FG: 0.5KVDC O/P-FG: 0.5KVDC
|
|
Solation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH
|
|
OTHERS
|
|
Dimension
|
W482 *D240*H88mm
|
|
Weight
|
8KGS
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
