OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14

1pcs
MOQ
USD 1
Price
OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14
Features Gallery Product Description Request A Quote
Features
Specifications
Model: D40-11-18
Rated Voltage (Vdc): 220Vdc/220VAC
DC Input Current: 9.09A
Output Rated Voltage: 48VDC
Voltage ADJ. Range: 42~59VDC
Output Capacity: 2000W
Rated Output Current: 0~40A
Over Load Protection: Iout_Max±0.5A
Over Voltage Protection: 60VDC
Short Circuit Protection: Aviailable
Highlight:

48vdc DC DC Converters

,

720w DC DC Converters

,

19 Inch DC DC Converters

Basic Infomation
Place of Origin: China
Brand Name: Custom -made
Certification: CE
Model Number: D40-11-18
Payment & Shipping Terms
Packaging Details: wooden cartons
Delivery Time: 1-2 weeks
Payment Terms: T/T
Supply Ability: 3000 pieces per month
Product Description

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 0

In mission-critical landscapes where safety is non-negotiable—from life-saving medical suites to high-stakes aerospace systems—the RCT2000D Series isn’t just compliant—it’s a fortress of certification-driven reliability. These converters are meticulously engineered to wear the world’s most stringent safety badges: UL 60950-1 for IT equipment, EN 62368-1 for next-gen electronic safety, and IEC 60601-1 for medical devices, each certification a testament to their ability to withstand voltage surges (2kV reinforced insulation), thermal extremes, and catastrophic failure scenarios.



The fail-safe design operates like an intelligent guardian: dual-galvanic isolation barriers sever ground loops with surgical precision, eliminating the silent killers of electrical interference and operator risk. Imagine a hospital’s MRI suite, where a single ground fault could corrupt diagnostics or endanger staff—the RCT2000D’s isolated architecture acts as an impenetrable moat, safeguarding both human life and multimillion-dollar equipment.



For OEMs navigating the labyrinth of global market approvals, these certifications are more than checkmarks—they’re a shortcut to success. By embedding RCT2000D converters, manufacturers slash compliance timelines by up to 40%, bypassing redundant testing and accelerating product launches in Europe, North America, and APAC markets. It’s not just about meeting standards; it’s about turning safety into a competitive advantage, ensuring every system bearing your brand thrives in the world’s most demanding environments—from aircraft cockpits to autonomous vehicle fleets—with uncompromising peace of mind.







   Technical Parameter

Technical Data



D40-11-18

INPUT

Voltage Range

179~275Vdc/170~270VAC











Rated Voltage (Vdc)

220Vdc/220VAC

Input Current

9.09A

OUTPUT

Rated Voltage

48VDC

Voltage ADJ. Range

42~59VDC

Output Capacity

2000W

Rated Output Current

0~40A

Float Chg Voltage ADJ.Range

42V~58VDC

Equ. Chg Voltage ADJ.Range

42V~58VDC

Output Voltage Protection point

60Vdc±1V

Output Over Current Protection Point

±5%

Ripple & Noise(Max)

200mVp-p

Peak—peak noise

≤150mV

Voltage Tolerange

±1%

Line/Load Regulation

±0.5%

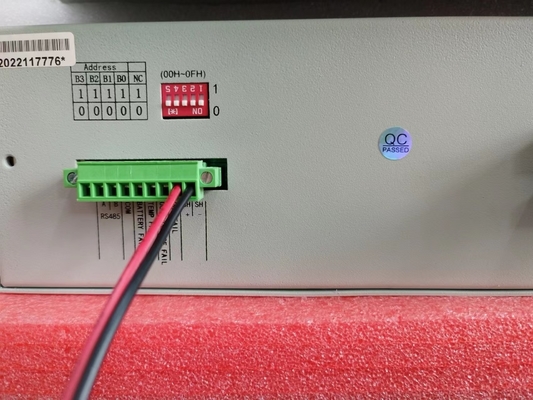

COMMUNICATION



Modbus RTU

Rs485

Dry Contact

Out Fail,Output Voltage Fail, TEMP Fail, Battery Fail.

PROTECTIVE FEATURE

Over Load Protection

Iout_Max±0.5A

Protection Type: Constant Current Limiting

Over Voltage Protection

60VDC

Protection Type:Shut Down O/P V.

Recovery Automatically after 60s

Over Temperaure Protection

85±5℃ Detect on Heatsink of Poer Transistor

Protection type:shut Down O/P V, Recovery after Temp. Normal Temp.

Short Circuit Protection

Aviailable

ENVIRONMENT

Operating Temp./Humidity

-20 ~ + 45℃/ 20~90% RH non- Condensing

Storage TEMP./Humidity

-40~+85℃/10~95%

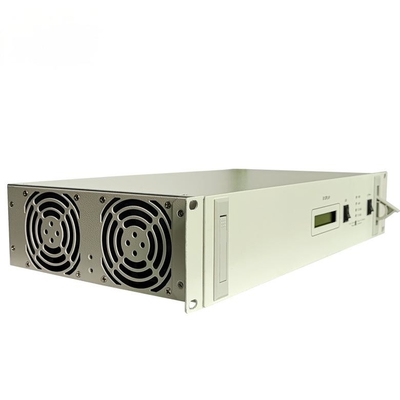

Cooling

Temperature control wind cooling ,Side to Side airflow

MTBF

>10,000 hours

SAFETY

Withst and Voltage

I/P-O/P:1.5KVAC I/P-FG: 0.5KVDC O/P-FG: 0.5KVDC

Solation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH

OTHERS

Dimension

W482 *D240*H88mm

Weight

8KGS

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 1

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 2

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 3

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 4

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 5

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 6

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 7

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 8

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 9





OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 10

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 11

OEM Customization 19 Inch DC DC Converters RCT2000D Series Input 48vdc Output 24vdc 720w D40-18-14 12

Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
