19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18

1pcs
MOQ
USD 1
Price
19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18
Features Gallery Product Description Request A Quote
Features
Specifications
Model: D30-25-18
Rated Voltage (Vdc): 125Vdc
DC Input Current: 12A
Output Rated Voltage: 48VDC
Voltage ADJ. Range: 40~60Vdc
Output Capacity: 1500W Max
Rated Output Current: 0~30A
Ripple & Noise(Max): 200mVp-p
Peak—peak Noise: ≤150mV
Voltage Tolerange: ±1%
Highlight:

1500w DC-DC Converters

,

19” DC-DC Converters

,

48vdc DC-DC Converters

Basic Infomation
Place of Origin: China
Brand Name: Custom -made
Certification: CE
Model Number: D30-25-18
Payment & Shipping Terms
Packaging Details: wooden cartons
Delivery Time: 1-2 weeks
Payment Terms: T/T
Supply Ability: 3000 pieces per month
Product Description

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 0

In the delicate ecosystems of medical devices, where a single electrical interference could skew life-saving diagnostic readings; within the pristine world of audio equipment, where the faintest hum can shatter the purity of sound; and among the precise instruments of scientific testing, electromagnetic interference (EMI) is the invisible enemy that can undermine accuracy. This is where the RCT2000D Series emerges as a technological savior.
At the heart of its EMI - conquering capabilities lies a revolutionary proprietary noise cancellation circuitry, a digital wizardry that works tirelessly to suppress conducted emissions to an astonishingly low level of less than 30μV. It's a quantum leap beyond industry standards, effectively silencing electrical "whispers" that could disrupt sensitive electronics.
The soft-switching technology employed by the RCT2000D Series is a masterstroke in noise elimination. Unlike traditional hard-switching methods that generate sharp electrical transients, this innovative approach glides through power transitions with grace, eradicating the harsh switching noise that plagues many power converters. Complementing this is the dual-stage filtering system, a two - pronged defense mechanism meticulously designed to meet and exceed the stringent CISPR 22 Class B limits. It acts as a precision - tuned sieve, trapping unwanted frequencies and ensuring only clean, stable power passes through.
The result is an ultra - clean power output with an incredibly low output ripple of just 20mVp - p. For medical devices, this means reliable and accurate patient monitoring; for audio enthusiasts, it translates to unadulterated sound reproduction; and for researchers, it guarantees the integrity of test results. The RCT2000D Series doesn't just provide power—it delivers a sanctuary of electrical purity for even the most EMI - sensitive applications.







   Technical Parameter

Technical Data



D30-25-18

INPUT

Voltage Range

90~135VDC











Rated Voltage (Vdc)

125Vdc

DC Input Current

12A

OUTPUT

Rated Voltage

48VDC

Voltage ADJ. Range

40~60Vdc

Output Capacity

1500W Max

Rated Output Current

0~30A

Float Chg Voltage ADJ.Range

42~58Vdc

Equ. Chg Voltage ADJ.Range

42~58Vdc

Output Voltage Protection point

60Vdc±1V

Output Over Current Protection Point

±5%

Ripple & Noise(Max)

200mVp-p

Peak—peak noise

≤150mV

Voltage Tolerange

±1%

Line/Load Regulation

±0.5%

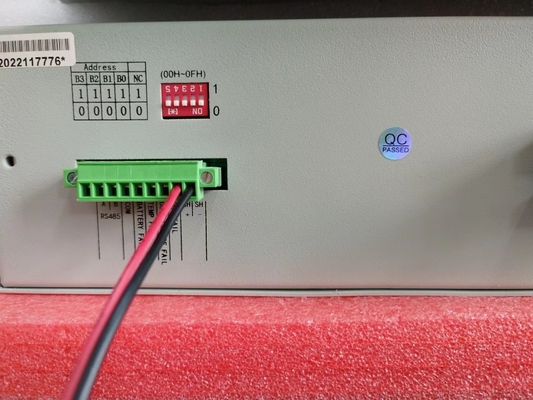

COMMUNICATION



Modbus RTU

Rs485

Dry Contact

Out Fail,Output Voltage Fail, TEMP Fail, Battery Fail.

PROTECTIVE FEATURE

Over Load Protection

Iout_Max±0.5A

Protection Type: Constant Current Limiting

Over Voltage Protection

60VDC

Protection Type:Shut Down O/P V.

Recovery Automatically after 60s

Over Temperaure Protection

85±5℃ Detect on Heatsink of Poer Transistor

Protection type:shut Down O/P V, Recovery after Temp. Normal Temp.

Short Circuit Protection

Aviailable

ENVIRONMENT

Operating Temp./Humidity

-20 ~ + 45℃/ 20~90% RH non- Condensing

Storage TEMP./Humidity

-40~+85℃/10~95%

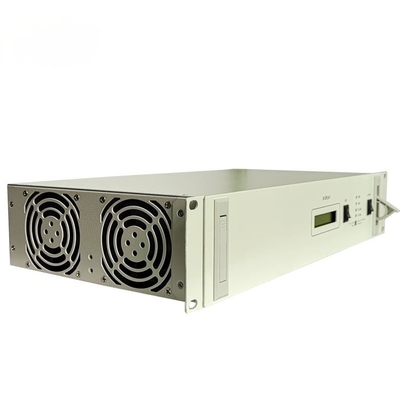

Cooling

Temperature control wind cooling ,Side to Side airflow

MTBF

>10,000 hours

SAFETY

Withst and Voltage

I/P-O/P:1.5KVAC I/P-FG: 0.5KVDC O/P-FG: 0.5KVDC

Solation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH

OTHERS

Dimension

W482 *D240*H88mm

Weight

8KGS

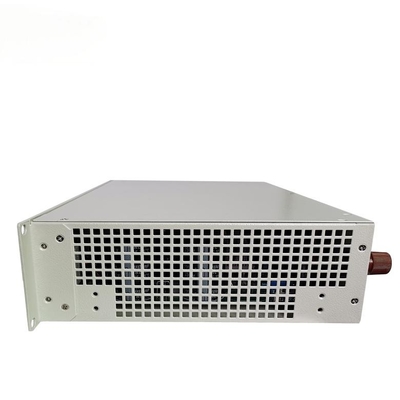

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 1

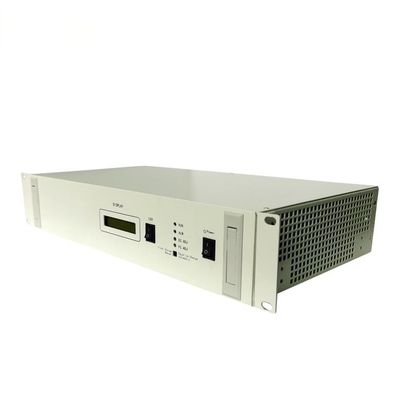

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 2

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 3

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 4

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 5

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 6

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 7

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 8

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 9





19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 10

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 11

19" in RCT2000D Series Isolated DC-DC Converters Input 125vdc Output 48vdc 1500w D30-25-18 12

Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
