The RCT2000D Series is a paragon of adaptability in the realm of power conversion, a chameleon engineered to seamlessly blend into any power ecosystem. Its intelligent input design is a marvel of flexibility, effortlessly accommodating 24/48/110/220VDC power sources regardless of whether they operate on positive or negative grounding. It's as if these converters have a built-in translator, decoding the language of any power source and converting it into a usable format with ease.
But the versatility doesn't stop there. The output can be finely tuned, offering a remarkable ±10% adjustment range. This precision allows the RCT2000D Series to become a bespoke power solution, molding its output to perfectly fit the unique needs of any load, whether it's a delicate piece of laboratory equipment or a high-powered industrial machine.
The modular architecture of these converters is a game-changer. Picture a data center humming with activity, its power demands constantly evolving. With the RCT2000D Series, power can be scaled up in an instant. Multiple converters can be effortlessly connected in parallel, pooling their resources to deliver higher power outputs. And for those mission-critical applications where downtime is not an option, the N+1 redundancy feature acts as a safety net. If one converter encounters an issue, the others step in seamlessly, ensuring uninterrupted power supply.
Safety is woven into the very fabric of the RCT2000D Series. Its comprehensive suite of built-in protections is like a vigilant security team, standing guard against potential threats. Short circuits, overvoltage surges, and thermal runaway are all anticipated and neutralized, guaranteeing safe operation in even the most complex and demanding configurations. Whether deployed in a sprawling data center or integrated into a sophisticated UPS system, the RCT2000D Series offers peace of mind, combining unparalleled versatility with rock-solid reliability.
Technical Parameter
|
Technical Data
|
|
|
D30-18-14
|
|
INPUT
|
|
Voltage Range
|
40~60Vdc
|
|
Rated Voltage (Vdc)
|
48Vdc
|
|
DC Input Current
|
15A
|
|
OUTPUT
|
|
Rated Voltage
|
24VDC
|
|
Voltage ADJ. Range
|
21~29VDC
|
|
Output Capacity
|
720W
|
|
Rated Output Current
|
0~30A
|
|
Float Chg Voltage ADJ.Range
|
21~29Vdc
|
|
Equ. Chg Voltage ADJ.Range
|
21~29Vdc
|
|
Output Voltage Protection point
|
30Vdc±1V
|
|
Output Over Current Protection Point
|
±5%
|
|
Ripple & Noise(Max)
|
200mVp-p
|
|
Peak—peak noise
|
≤150mV
|
|
Voltage Tolerange
|
±1%
|
|
Line/Load Regulation
|
±0.5%
|
|

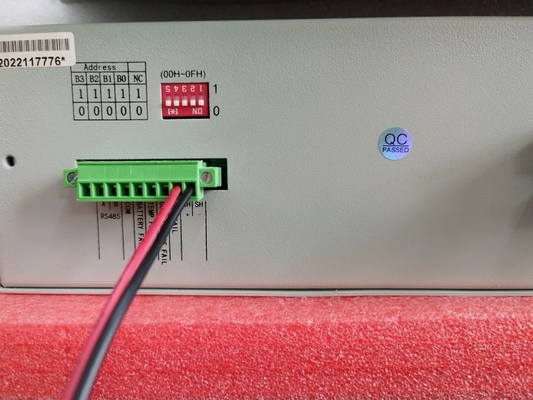

COMMUNICATION
|
|
|
Modbus RTU
|
Rs485
|
|
Dry Contact
|
Out Fail,Output Voltage Fail, TEMP Fail, Battery Fail.
|
|
PROTECTIVE FEATURE
|
|
Over Load Protection
|
Iout_Max±0.5A
|
|
Protection Type: Constant Current Limiting
|
|
Over Voltage Protection
|
60VDC
|
|
Protection Type:Shut Down O/P V.
Recovery Automatically after 60s
|
|
Over Temperaure Protection
|
85±5℃ Detect on Heatsink of Poer Transistor
|
|
Protection type:shut Down O/P V, Recovery after Temp. Normal Temp.
|
|
Short Circuit Protection
|
Aviailable
|
|
ENVIRONMENT
|
|
Operating Temp./Humidity
|
-20 ~ + 45℃/ 20~90% RH non- Condensing
|
|
Storage TEMP./Humidity
|
-40~+85℃/10~95%
|
|
Cooling
|

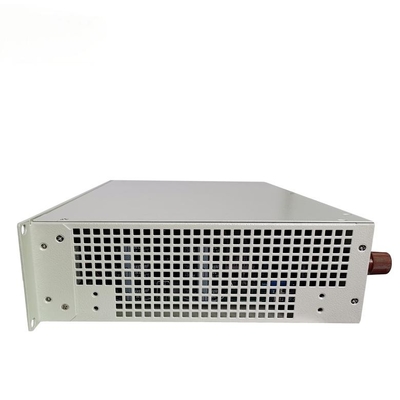

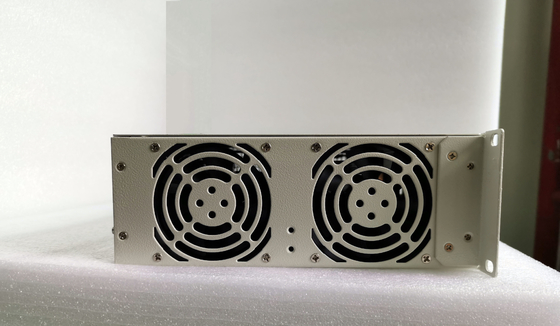

Temperature control wind cooling ,Side to Side airflow
|
|
MTBF
|
>10,000 hours
|
|
SAFETY
|
|
Withst and Voltage
|
I/P-O/P:1.5KVAC I/P-FG: 0.5KVDC O/P-FG: 0.5KVDC
|
|
Solation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH
|
|
OTHERS
|
|
Dimension
|
W482 *D240*H88mm
|
|
Weight
|
8KGS
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
