STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply

1pcs
MOQ
USD 1
Price
STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply
Features Gallery Product Description Request A Quote
Features
Specifications
Model: STS 16AUF-LTS16-1P
Rated Voltage: 220Vdc
Input Voltage Range (VAC): 150~300Vac
Rated Frequency (Hz): 50/60HZ
Power Factor: 1
Overload Capacity: 125%,30min
Munterofrsh: 2 Poles
Storage Temperature: -40~70℃
Humidity: 5~95%,no Condensation
Altitude: 3000m
Highlight:

1P Switching Power Supply

,

Single phase Switching Power Supply

,

Dual input Switching Power Supply

Basic Infomation
Place of Origin: China
Brand Name: Custom -made
Certification: CE
Model Number: Custom made
Payment & Shipping Terms
Packaging Details: wooden cartons
Delivery Time: 1-2 weeks
Payment Terms: T/T
Supply Ability: 3000 pieces per month
Product Description

STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply 0

The LTS™ is a state - of - the - art single - pole automatic transfer device available in 10 A, 16 A, and 32 A capacities. In a dual - AC - powered bus system, it acts as a vigilant sentinel, constantly detecting fluctuations and irregularities in the power supply. Its rapid - response transfer function is designed to minimize downtime, ensuring seamless power continuity. For high - end uninterruptible power supply applications, where the cost of power outages in terms of equipment damage, data loss, and business interruption is high, the LTS™ provides an invaluable solution, significantly enhancing the overall reliability and robustness of the power infrastructure.


Technical Parameters:


Technical indicators

project

(10A/16A)Specifications

32A indicator

enter

input source

Twoinput sources

Input method

1Φ+N+PE

Rated voltage

220/230Vac

Ratedfrequency

50/60Hz

voltage range

150~300Vac

Frequency range rated frequency

±5Hz

Voltage distortion

<10%

output

power factor

0.75~1.0 Leading or lagging

0.8~1.0 Lead or Lag

Overload capacity

125%,30min

Efficiency(100%linear load)

99%

98%

switch

Munterofrsh

2 poles

Automatic switching interval

<6ms(typical),<11ms(maximum)

Envlironmental parameters

project

normal range

wekig tarperue

0~40℃

storage temperature

-40~70℃

relative humidity

5~95%,no condensation

altitude

3000m

Mechanical parameters

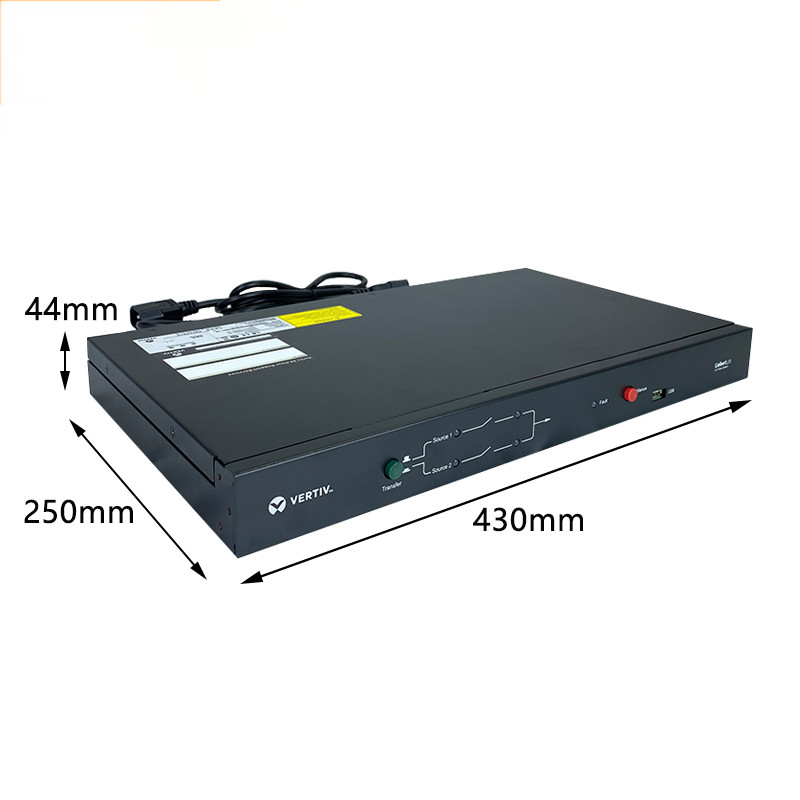

Dimensions(height x width x depth)

weight



ahtacldàaapfonalacure

44mm×430mm×250mm(10A/16A)

4.5kg

5kg

84mm×430mm×340mm(32A)

5kg

6kg


STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply 1

STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply 2

STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply 3

STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply 4

STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply 5


STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply 6

STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply 7

STS 16AUF-LTS16-1P Single Phase Dual Input Static Automatic Switching Power Supply 8

Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
