The LTS™, a single - pole automatic transfer device, offers three distinct current capacities of 10 A, 16 A, and 32 A. In a dual - bus system powered by two separate AC power sources, it deploys advanced detection algorithms to meticulously monitor power quality parameters such as voltage, frequency, and phase. Once any anomalies are detected, its high - speed transfer mechanism, engineered with precision, swiftly switches the load to the backup power source. This device is meticulously tailored for high - end uninterruptible power supply applications where stringent power supply reliability is non - negotiable, safeguarding critical equipment from power disruptions.
Technical Parameters:
|
Technical indicators
|
|
project
|
(10A/16A)Specifications
|
32A indicator
|
|
enter
|
input source
|
Twoinput sources
|
|
Input method
|
1Φ+N+PE
|
|
Rated voltage
|
220/230Vac
|
|
Ratedfrequency
|
50/60Hz
|
|
voltage range
|
150～300Vac
|
|
Frequency range rated frequency
|
±5Hz
|
|
Voltage distortion
|
<10%
|
|
output
|
power factor
|
0.75~1.0 Leading or lagging
|
0.8~1.0 Lead or Lag
|
|
Overload capacity
|
125%,30min
|
|
Efficiency(100%linear load)
|
99%
|
98%
|
|
switch
|
Munterofrsh
|
2 poles
|
|
Automatic switching interval
|
<6ms(typical),<11ms(maximum)
|
|
Envlironmental parameters
|
|
project
|
normal range
|
|
wekig tarperue
|
0~40℃
|
|
storage temperature
|
-40～70℃
|
|
relative humidity
|
5~95%,no condensation
|
|
altitude
|
3000m
|
|
Mechanical parameters
|
|

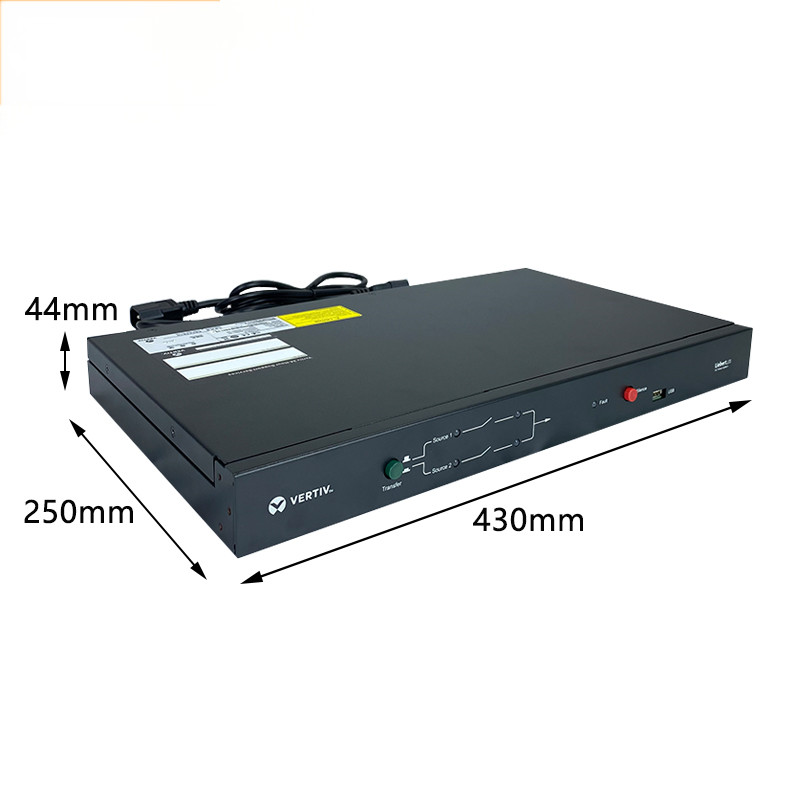

Dimensions(height x width x depth)
|
weight
|
|
|
ahtacldàaapfonalacure
|
|
44mm×430mm×250mm(10A/16A)
|
4.5kg
|
5kg
|
|
84mm×430mm×340mm(32A)
|
5kg
|
6kg
|
Solutions
Our comprehensive solutions are designed to meet the diverse needs of Telecommunication Companies in China and around the world. We start by conducting a detailed site survey to identify potential challenges and opportunities. Then, we create professional and cost-effective plans that are aligned with the customer's business objectives. Our technical support team is available 24/7 to provide immediate assistance, and our maintenance services ensure the smooth functioning of telecom networks. With a highly competent team and a vast network of trusted partners, we are well-equipped to handle any telecom project.
FAQ :
1.Q: Can I get product samples and their corresponding prices?
A: You can obtain samples. The cost of samples is based on the regular price, and you’ll be responsible for covering the shipping charges.
2.Q: How do you resolve quality-related problems?
A: Having been in this industry for around 10 years, we value our reputation highly. When a quality problem arises, we’ll carry out a detailed investigation. If it’s our responsibility, we’ll honor the contract and resolve the issue, eliminating any concerns you may have. Our service team is committed to providing you with excellent support.
3.Q: How reliable is the quality of your products?
A: Our products are 100% authentic, brand new, and packaged as originally intended. We test each product meticulously before shipping to ensure that it meets our stringent quality benchmarks.
4.Q: For how long is the product guaranteed?
A: Our products come with a 1-year warranty, during which we’ll address any quality problems related to manufacturing defects.
5.Q: What's the process for handling defective products?
A: During the warranty period, if you find any product quality problems, we’ll cover the cost of returning and replacing the substandard items.
