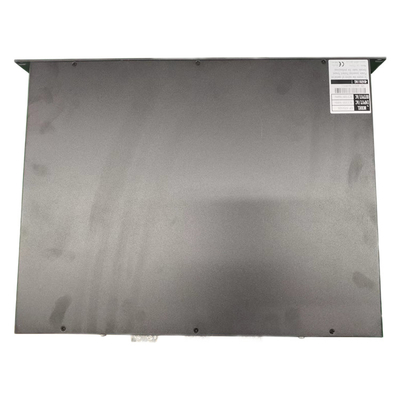

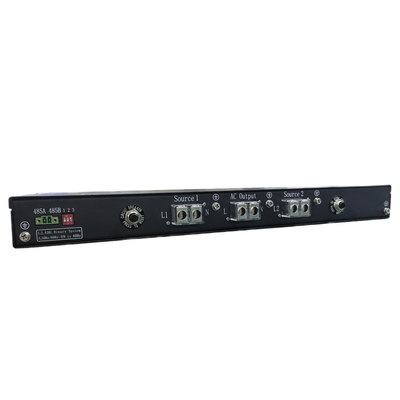

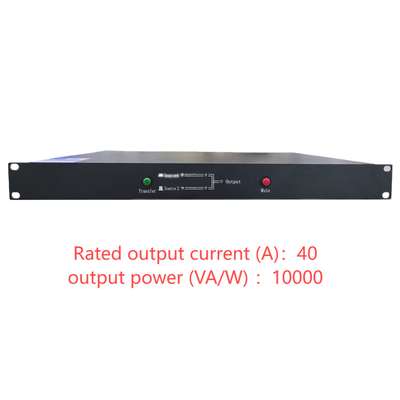

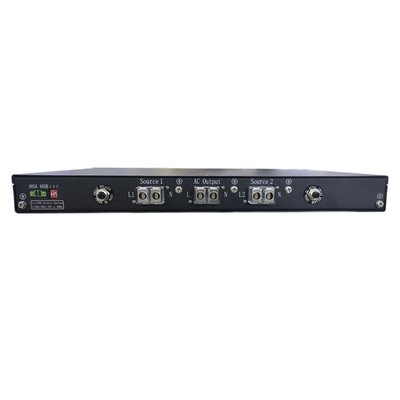

STS-100 static transfer switch(STS)
The STS AC dual-power switching device, meticulously designed based on the principle of high-speed static contactless switching, boasts exceptional performance. Its distinctive operation mode allows the two AC inputs to be in a mutually exclusive state, with one input prioritized to power the load. In the event of power abnormalities, the device can leverage its advanced technical architecture to switch to the other power source with extremely fast response speed. Thanks to its contactless switching and high reliability, it provides solid support for the continuous and stable power supply to the load.
Technical Parameter
| Items |
Technical Parameters |
|
Switchtim
e
|
Priority switching |
≤4m s |
|
AC
INPUT
|
Rated voltage (VAC) |
220 |
| Input voltage range (VAC) |
190～260 |
| rated frequency (Hz) |
50 |
| power factor |
1 |
| Autoconvertthreshold voltage |
≤190Vac ± 5Vacor≥260Vac ± 5Vac |
| Auto convert threshold frequency |
≤45Hz±0.2Hzor≥65Hz±0.2Hz |
|
Over-limit protection
shutdown threshold
voltage
|
160Vac or 265Vac, return ± 5V |
|
Over-limit protection
shutdown threshold
frequency
|
45Hz or 65Hz, with differential ± 0.2Hz |
| overload capacity |
Load current is 110%, operating continuouslyLoad
current> 110%, immediately shut-off;
|
|
Environme nt
|
insulation strength |
2KVAC, 1min |
| Noise (1m) |
≤55dB |
| operating ambient temperature |
-25 ～50℃ |
| Transport and storage temperature |
- 40～70℃ |
| humidity |
0~90%, with no condensation |
| levels of protection |
IP20 |
| height (m) |
≤30002000～3000mOutput reduction of 2% per 100m increase |
| defencive function |
Input undervoltage, overvoltage protection, output
overload protection, over temperature protection, short
circuit protection
|
Solutions
We offer an all-encompassing suite of solutions tailored for Telecommunication Companies, both within China and internationally. Our services commence with a meticulous site survey to gain in-depth insights. Based on each customer's unique requirements, we craft highly professional and customized plans. Alongside, we provide unwavering technical support throughout the project lifecycle and reliable maintenance services to ensure seamless operations. Our team comprises seasoned experts, and we've built a robust global network of trusted partners, enabling us to deliver top-notch services consistently.
FAQ :
- Q: How do you ensure product quality?
A: Prior to shipping, every product undergoes rigorous testing in simulated real-world usage conditions. We conduct comprehensive load, full load, and current sharing tests to guarantee that each item meets our high-quality standards.
- Q: What's the lowest number of items I can order?
A: There’s no strict minimum order quantity. Even if you only need one item, we can fulfill your order. However, please note that the price and delivery time may vary depending on the order size.
- Q: Could you tell me more about your company?
A: It’s my pleasure! I’ll promptly send you our detailed company introduction document, which will provide you with a comprehensive and straightforward overview of our company’s profile, capabilities, and achievements.
- Q: What sets your company apart from others?
A: Our company boasts a substantial inventory, ensuring continuous supply for future orders. We also offer customized solutions tailored to diverse customer needs, providing flexibility and personalized service.
- Q: Can I request product samples and get a price quote?
A: Yes, sample requests are welcome. Samples are priced according to our regular rates, and the shipping cost will be borne by the recipient.
