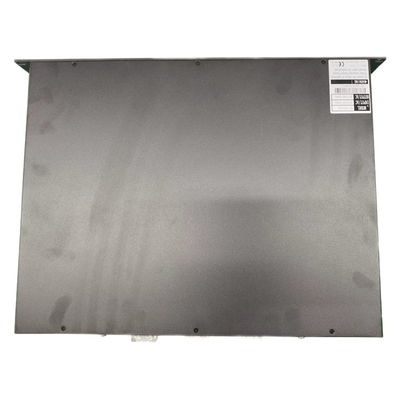

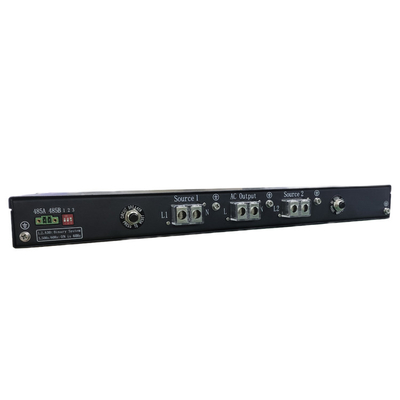

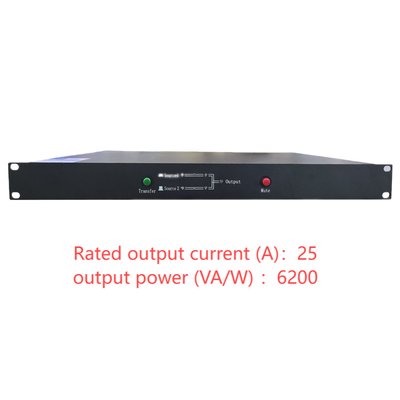

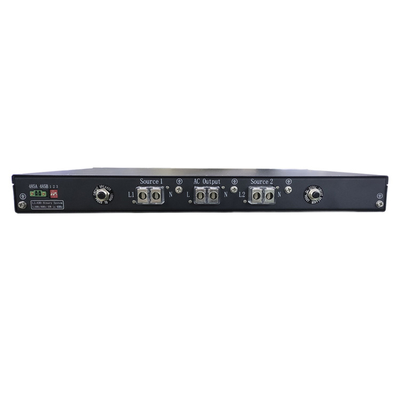

STS-100 static transfer switch(STS)
The STS dual-input AC converter switch is a paragon of intelligent power management. Integrated with advanced control systems, it continuously monitors the status of both AC inputs, collecting data on parameters like voltage, current, and frequency. Using this real - time information, the STS can proactively predict potential power issues and initiate preventive switching actions. For example, if it detects a gradual degradation in the quality of the primary power source, it can switch to the secondary source before a failure occurs. This intelligent management not only ensures uninterrupted power supply but also provides valuable insights for power system optimization and maintenance, making it a high - tech solution for modern power distribution networks
Technical Parameter
| Items |
Technical Parameters |
|
Switchtim
e
|
Priority switching |
≤4m s |
|
AC
INPUT
|
Rated voltage (VAC) |
220 |
| Input voltage range (VAC) |
190～260 |
| rated frequency (Hz) |
50 |
| power factor |
1 |
| Autoconvertthreshold voltage |
≤190Vac ± 5Vacor≥260Vac ± 5Vac |
| Auto convert threshold frequency |
≤45Hz±0.2Hzor≥65Hz±0.2Hz |
|
Over-limit protection
shutdown threshold
voltage
|
160Vac or 265Vac, return ± 5V |
|
Over-limit protection
shutdown threshold
frequency
|
45Hz or 65Hz, with differential ± 0.2Hz |
| overload capacity |
Load current is 110%, operating continuouslyLoad
current> 110%, immediately shut-off;
|
|
Environme nt
|
insulation strength |
2KVAC, 1min |
| Noise (1m) |
≤55dB |
| operating ambient temperature |
-25 ～50℃ |
| Transport and storage temperature |
- 40～70℃ |
| humidity |
0~90%, with no condensation |
| levels of protection |
IP20 |
| height (m) |
≤30002000～3000mOutput reduction of 2% per 100m increase |
| defencive function |
Input undervoltage, overvoltage protection, output
overload protection, over temperature protection, short circuit protection
|
