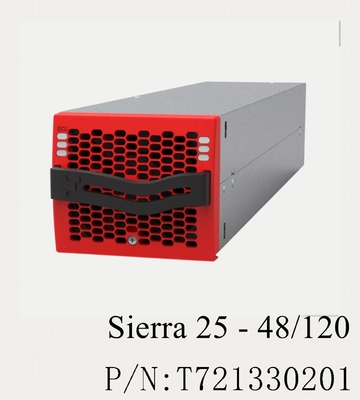

Name: Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: Sierra 25 - 48/120
Price: 1 USD
Availability: InStock

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201

MOQ

1 USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: CET

Model Number: Sierra 25 - 48/120

Product Name: Converters

Part No.: T721330201

DC Voltage (input Range): 48 Vdc (40-60)

AC Voltage (input Range): 120 Vac (90 – 140)

Output Power: 2.75 KVA / 2.55 KW

Efficiency: DC/AC: 92.5%

Efficiency: AC/AC: 94.5%

Dimension: 2U X 103 Mm X 435 Mm

Highlight:

2.75KVA 48v To 120v Converter

2.55KW 48v To 120v Converter

2.55KW 48v Dc To 120v Ac Converter

Basic Infomation

Place of Origin: CN

Brand Name: CET

Certification: CE

Model Number: Sierra 25 - 48/120

Payment & Shipping Terms

Packaging Details: Wooden cartons

Delivery Time: 2-4 weeks

Supply Ability: 500 sets / month

Gallery

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201

Product Description

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201 0

CET converter Sierra 25 - 48/120 2.75KVA 2.55KW Converters for AC &DC load (P/N:T721330201)

Description:

Sierra 25 – 48/120 can be used as a UPS to secure AC & DC loads and charge the batteries.

The 3 all bidirectional ports allow for multiple innovative applications such as grid reinjection, peak shavings,

phase balancing or energy sharing through DC distribution, among many others.

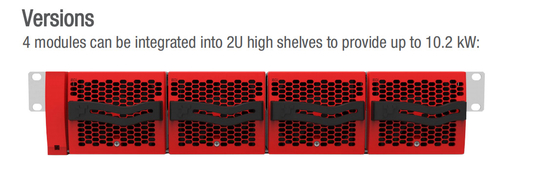

By using several modules, we can offer solutions for two-phase (2x120Vac + N) or three-phase (3x208Vac + N) infrastructures.

The module can be integrated in small or large cabinets to reach up to 1.85 MW. With our new Inview S monitoring,

you can benefit from a unique experience.

Key Features:

Secure AC & DC loads;
Many innovative applications;
Compatible with Inview S;
Modularity: from 2.55 kW to 1.85 MW;

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201 1

Parameters:

In/Out: DC voltage (range)	48 Vdc (40 – 60)
In/Out: AC voltage (range)	120 Vac (90 – 140)
Output power	2.75 kVA / 2.55 kW
Efficiency: DC/AC	92.5%
Efficiency: AC/AC	94.5%
Temperature	-20°C to 65°C
Dimension	2U x 103 mm x 435 mm
Part number	T721330201

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201 2

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201 3

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201 4

more......

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201 7

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201 8

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201 9

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201 10
