Name: Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: Sierra 10–48/230
Price: 1 USD
Availability: InStock

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201

MOQ

1 USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: CET

Model Number: Sierra 10–48/230

Product Name: Converters

Part No.: T711730201

DC Voltage (input Range): 48 Vdc (40-60)

AC Voltage (input Range): 230 Vac (150-265)

Output Power: 1.25 KVA / 1.2 KW

Efficiency: DC/AC: 93%

Efficiency: AC/AC: 96%

Dimension: 1U X 87 Mm X 319 Mm

Highlight:

Multidirectional 48v To 230v Converter

1.25KVA 48v To 230v Converter

1.2KW 48v Dc To 230v Ac Converter

Basic Infomation

Place of Origin: CN

Brand Name: CET

Certification: CE

Model Number: Sierra 10–48/230

Payment & Shipping Terms

Packaging Details: Wooden cartons

Delivery Time: 2-4 weeks

Supply Ability: 500 sets / month

Gallery

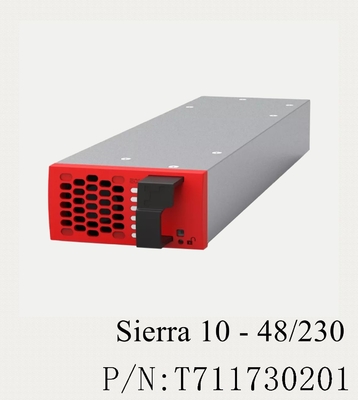

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201

Product Description

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201 0

CET Converters Sierra 10–48/230 Multidirectional Converters 1.25KVA 1.2KW Inverters(P/N.:T711730201)

Description:

Sierra 10 – 48/230 can be used as a UPS to secure AC & DC loads and charge the batteries.

The 3 all bidirectional ports allow for multiple innovative applications such as grid reinjection, peak shavings,

phase balancing or energy sharing through DC distribution, among many others.

By using several modules, we can offer solutions for three-phase (3x400Vac + N) infrastructures.

The module can be integrated into a shelf to provide up to 6 kW in just 1U high or 4.8 kW with integrated monitoring.

The total output power per module is 1.2 kW, limited to 1 kW for each AC or DC port.

Key Features:

Secure AC & DC loads;
Many innovative applications;
All-in-one solution with monitoring;
Modularity: from 1.2 to 38 kW;
Incredibly compact.

Versions:

Parameters:

In/Out: DC voltage (range)	48 Vdc (40-60)
In/Out: AC voltage (range)	230 Vac (150-265)
Output power	1.25 kVA / 1.2 kW
Efficiency: DC/AC	93%
Efficiency: AC/AC	96%
Operating temperature	-20°C to 65°C
Dimension	1U x 87 mm x 319 mm
Part number	T711730201

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201 2

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201 3

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201 4

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201 5

more......

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201 7

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201 8

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201 9

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201 10
