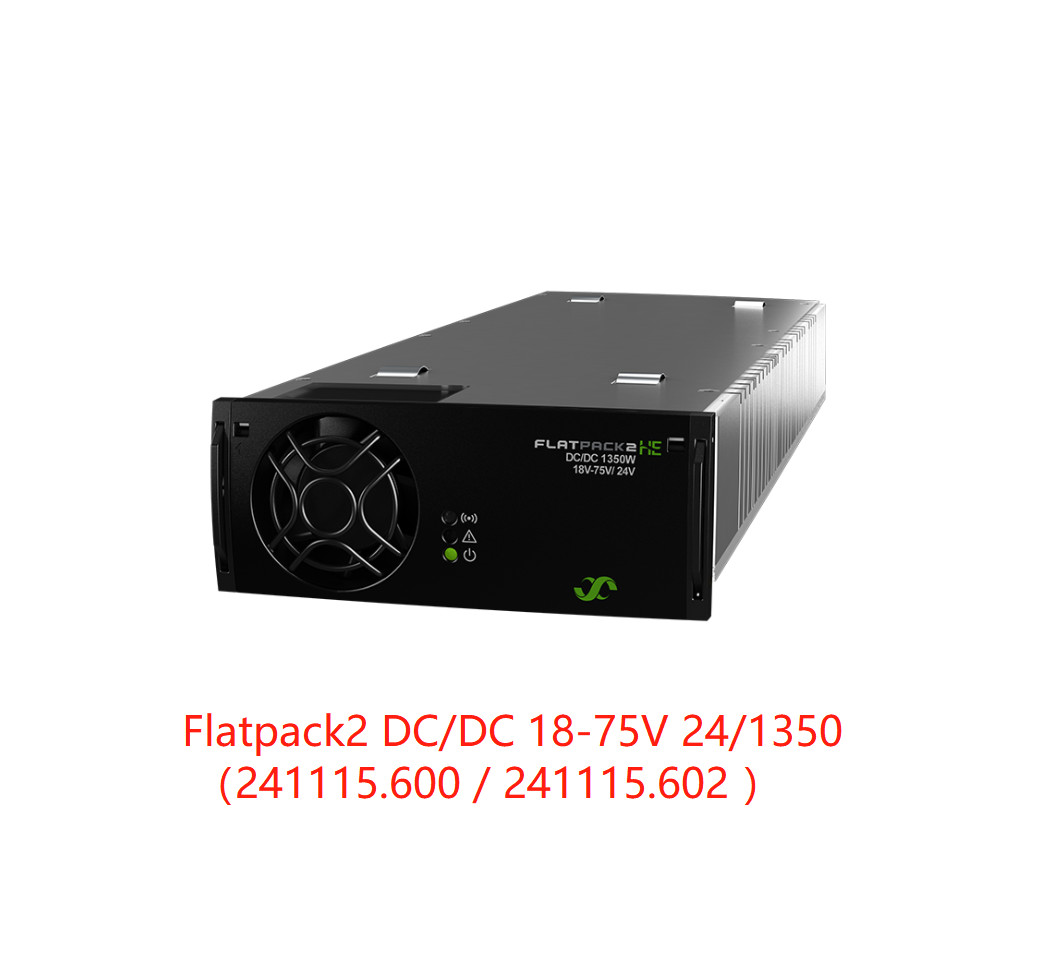

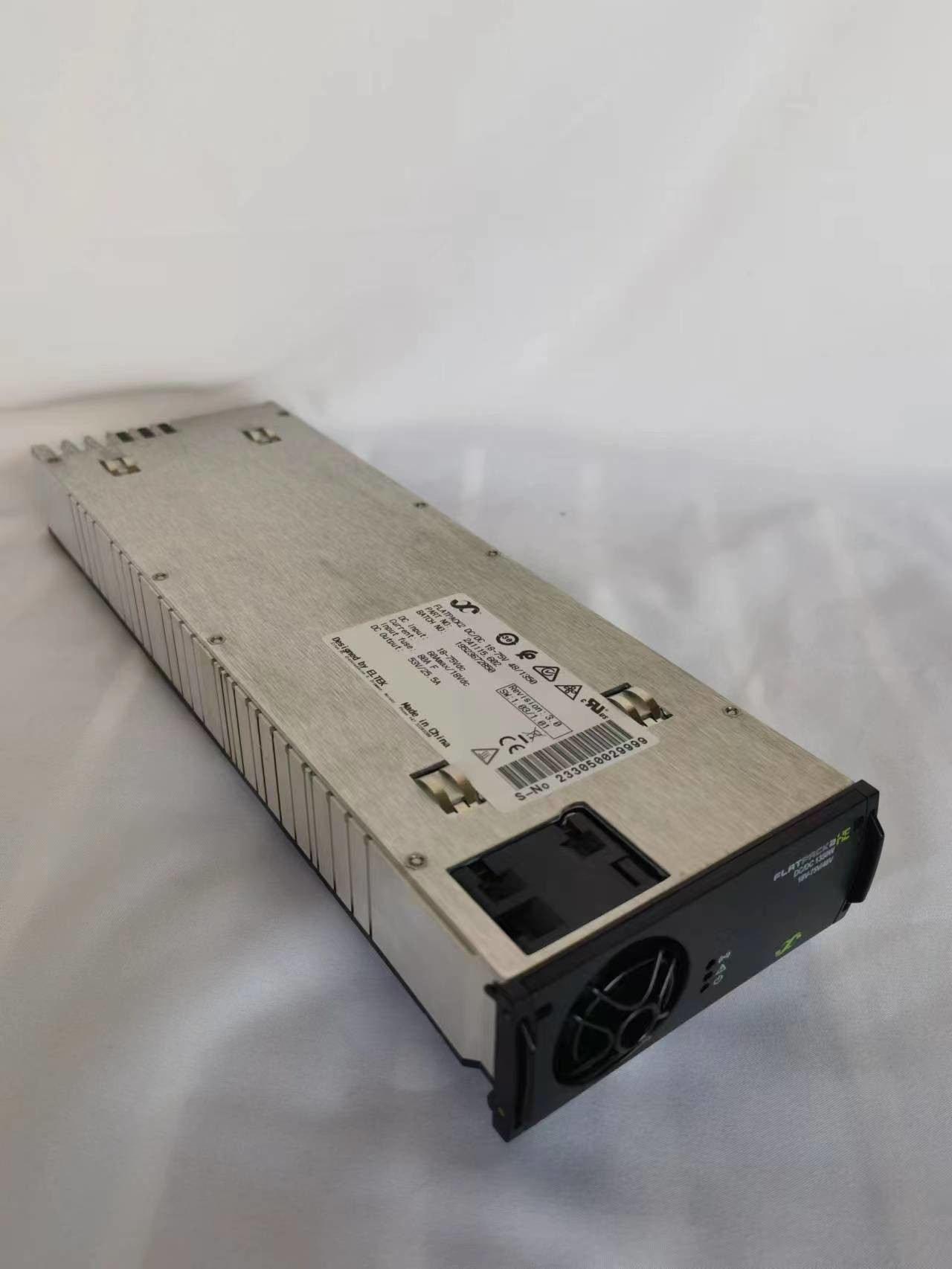

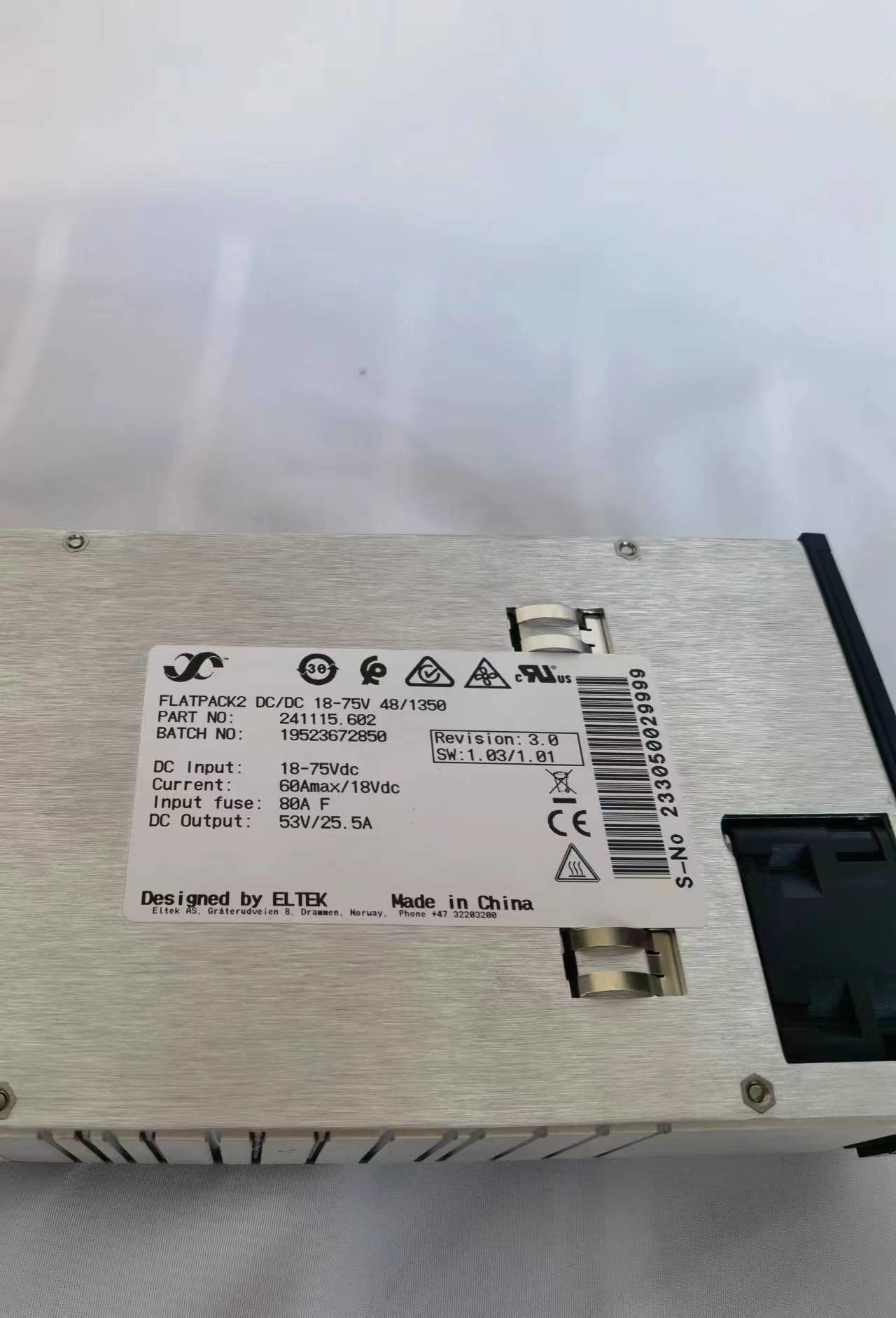

Eltek Flatpack2 DC/DC 18-75V 24V 48V 1350W (Part No.:241115.600 241115.602)
The Flatpack2 DC/DC converters add new flexibility to the Flatpack2 power systems. Secondary 24 Vdc or 48 Vdc outputs can be provided from the main voltage battery. Application requiring galvanic isolation between the loads can now also be addressed.
The galvanic isolated CAN bus can be connected to a supplying Eltek power system’s control system allowing monitor and control of the DC/DC converters without adding a separate controller.
Parameters :
Model 1350W 18-75/ 24V 1350W 18-75/ 48V |
Part number 241115.600 241115.602 |
INPUT DATA |
Voltage range 20 - 75 V DC (shutdown < 16.5V DC) |
Current (maximum) 70 A DC (85 ADC during boost) |
Protection Fuse and reversed polarity protection |
OUTPUT DATA |
Voltage (default) 26 V DC 53 VDC |
Voltage (adjustable range) 24 - 28 V DC 48 - 58.5 VDC |
Power (maximum) @ VIN > 26 VDC / VIN = 18 VDC 1350 W / 910 W Power boost 15s / 10min recovery (V IN > 25VDC) 2000W |
Current (maximum) 56 A 28 A |
Static Voltage regulation (0 - 100% load) ±1% ±0.5% |
Dynamic Voltage regulation ±5.0% for 10-90% or 90-10% load variation, regulation time < 30ms |
Ripple, 20MHz bandwidth < 200 mV pp |
Protection Short circuit proof , OR -ing diode, High temperature protection, Hot plug -in inrush current limiting, Over voltage Shutdown |
OTHER SPECIFICATIONS |
Efficiency Up to 91.7 % Up to 93.8 % |
Isolation 1.2 kVDC - input to chassis 1.9 kVDC - CAN to chassis 1.9 kVDC - input to output 1.9 kVDC - CAN to input 1.0 kVDC - output to chassis 1.9 kVDC - CAN to output |
Alarms: Red LED 'on Low and high input voltage shutdown, High and low temperature shutdown, Converter Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm |
Warnings: Yellow LED 'on' Converter in power de -rate mode, Remote output current limit activated, Input voltage out of range, flashing at overvoltage, Loss of CAN communication with controller |
Normal (module running): Green LED 'on' |
MTBF (Telcordia SR-332 Issue I method III (a)) >315 000 (@ Tambient : 25 °C) >315 000 (@ Tambient : 25 °C) |
Operating temperature -40 to +75°C ( -40 to +185°F), humidity 5 - 95% RH non-condensing |
Temperature de -rating above 55 °C (131°F) 1350W to 1250W @ 65°C (149°F) and 800W @ 75°C (167°F) |
Storage temperature -40 to +85°C ( -40 to +185°F), humidity 0 - 99% RH non-condensing |
Dimensions[WxHxD] / Weight 109 x 41.5 x 327mm (4.25 x 1.69 x 13”) / < 1.95 kg (4.3 lbs) |
DESIGN STANDARDS |
Electrical safety UL 60950-1, EN 60950-1 |
EMC EN 61000 -6-1 / -2 / -3 / -4 ETSI EN 300 386 V.1.4.1 |
Environment ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) RoHS (2011/ 65/ EU) and WEEE (2002/96/ EC) compliant |
