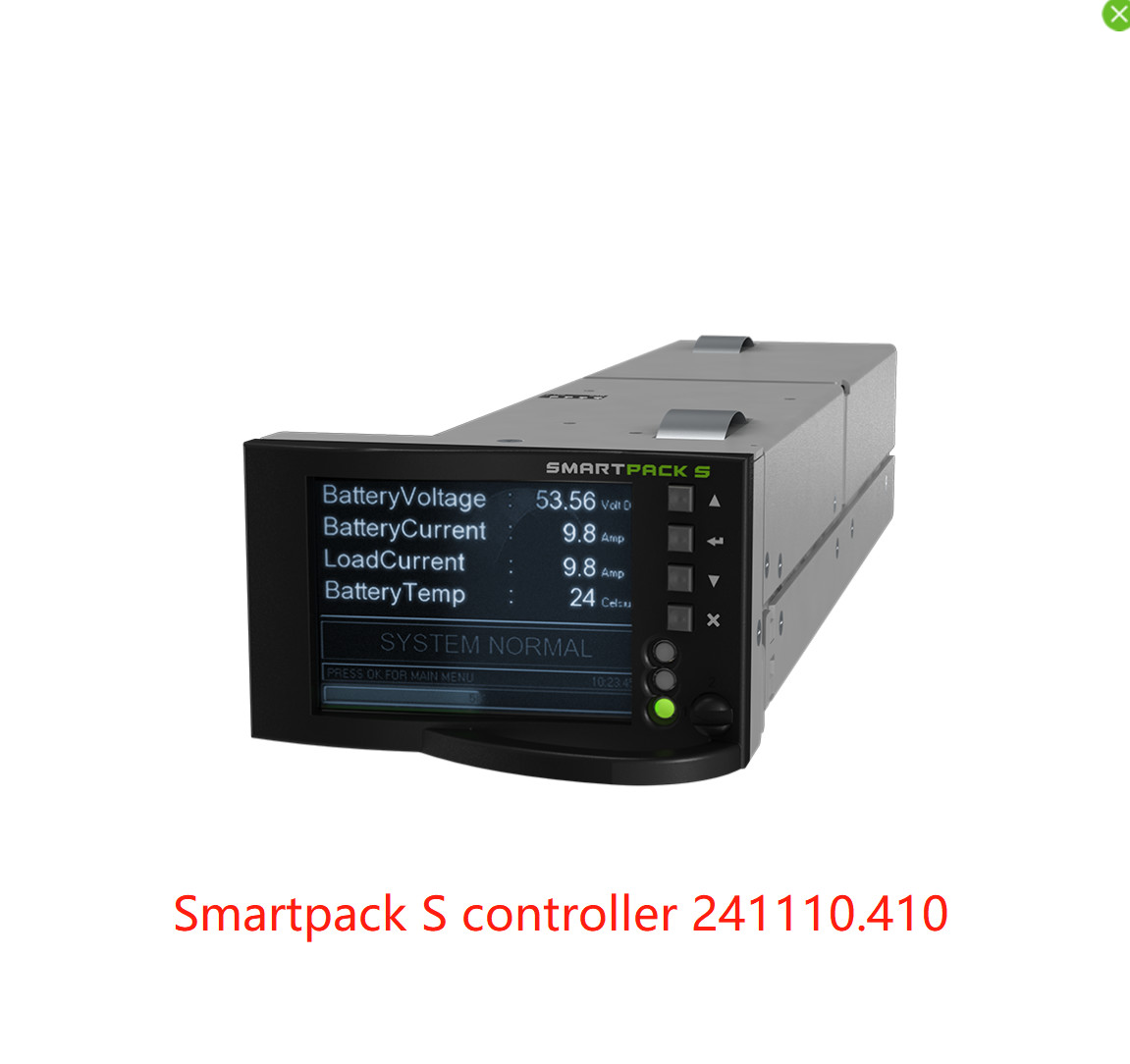

Eltek Telecom Monitoring Module Smarptakc S controller for 12Vdc, 24Vdc, 48Vdc and 60Vdc Telecom System ( 242100.410)

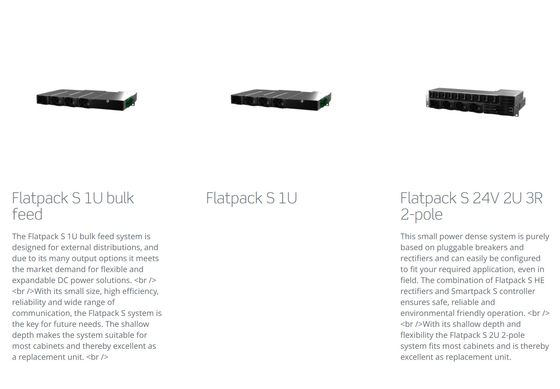

Designed for the Flatpack S system platform, the Smartpack S finds its way into many space restricted application. Used in the 1U high, 265mm deep power racks, Smartpack S offers comprehensive monitoring and control of a 2-3kW system occupying less than 6 liters.
Key features
- Graphical 2.2” high contrast, high resolution color display for easy navigation in user menu
- Ethernet for remote or local monitoring and control via web browser
- SNMP protocol with trap, set and get on ethernet. email of trap alarms
- 6 programmable relay outputs
- 6 programmable multi-purpose inputs (“digital inputs” or analog signals).
- Comprehensive logging
- Automatic battery monitoring and test
- Battery quality SoH based on test results and more
Application :
TELECOM – MOBILE / WIRELESS
· RADIO BASE STATIONS/ CELL SITES
· LTE / 4G / WIMAX
· DISTRIBUTED ANTENNA SYSTEMS
· BROADBAND
TELECOM – FIXED
· FIBER OPTICS / FTTX
· MICROWAVE
· CABLE
· BROADBAND
OFFSHORE AND PROCESS INDUSTRY
· SAFETY AND AUTOMATION SYSTEMS (SAS)
RAILWAY INFRASTRUCTURE
· CONTROL & PROTECTION
· SIGNALING
PARAMETERS:
| TECHNICAL SPECIFICATION |
| Model |
Smartpack S |
| Part number |
242100.410 |
| INPUT DATA |
|
|
| Voltage (nominal) |
10 - 75 VDC |
| Power Consumption, max - no relays energized max - all relays energized |
3,1W (display sleep) 5,5W (display on) |
| SYSTEM CONNECTIONS - SYSTEM MONITORS |
|
| Voltage sense, system voltage support |
12 VDC, 24VDC, 48VDC & 60VDC |
| Current sense, shunt support |
0 - 20mV and 0 - 60mV |
| Battery fuse monitoring |
Auxiliary switch NO/NC, Pull up/down |
| Load fuse monitoring |
Auxiliary switch NO/NC, Diode Matrix Pull up/down |
| Ground fault detection |
Simple bridge circuit detection |
| SYSTEM CONNECTIONS - LVD CONTROL |
|
| Battery disconnect |
1 (latched or non-latched supported) |
| Load disconnect |
1 (latched or non-latched supported) |
| INPUTS AND OUTPUTS |
|
|
| Digital configurations, Inputs #1-6 |
Auxiliary switch: NO/NC |
| Analog configurations, Inputs #1-4 |
Analog Voltage[±0 - 10V]
±4-20mA current measurement (through external 470kΩ resistor) Temperature (for NTC probe)
|
| Analog configurations, Inputs #5-6 |
Analog Voltage[0-75V] Symmetry measurement |
| Output configurations, Outputs #1-6 (alarms) |
6x Relay–Dry/Form C
Configurable Normally Open/Closed [Max capacity 75V/2A/60W]
|
| USER INTERFACE |
|
| Local |
2.2” TFT 65k Colour display QVGA resolution
4 keys
|
| Ethernet port |
10/100 BASE-T
HP Auto MDI/MDI-X
IP protocols: HTTP / SSL, SNMP v3, MODBUS TCP and pComm UDP (PowerSuite)
|
| Serial port |
RS-232 and RS-485 on RJ11 connector
Serial protocols: MODBUS RTU, Modem Call-Back/SMS reporting (PSTN or GSM), COMLI, CSCP and pComm (PowerSuite)
|
| GENERAL SPECIFICATIONS |
|
| Dimensions (WxHxD) |
72.2 x 43.0 x 220.7mm (2.8 x 1.7 x 8.7”) |
| Temperature Range |
Operating -20 to +65˚C (-40 to 149˚F) |
| DESIGN STANDARDS |
|
| Electrical safety |
UL 60950-1-3rd edition, EN 60950-1-3rd edition |
| EMC |
ETSI EN 300 386 V.1.4.1
EN 61000-6-1 / -2 / -3 / -4
FCC Part 15 Subpart 109
|
| Marine*) |
DNVGL-CG-03391) |
| Environment |
ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)
ROHS compliant
|
| 1)Only valid for part number 242100.410M |
Eltek Monitoring Comparsion
|
CAN Device
|
Start
|
End
|
Numb of Nodes
|
|
Smartpack
|
1
|
14
|
14
|
|
Smartpack 2 Basic
|
1
|
10
|
10
|
|
Smartpack 2 Master
|
11
|
14
|
4
|
|
Smartnode
|
17
|
30
|
14
|
|
Battery Monitor
|
33
|
46
|
14
|
|
Load Monitor
|
49
|
62
|
14
|
|
Flex Monitor
|
65
|
78
|
14
|
|
I/O monitors
|
81
|
94
|
14
|
|
Mains Monitor
|
97
|
110
|
14
|
