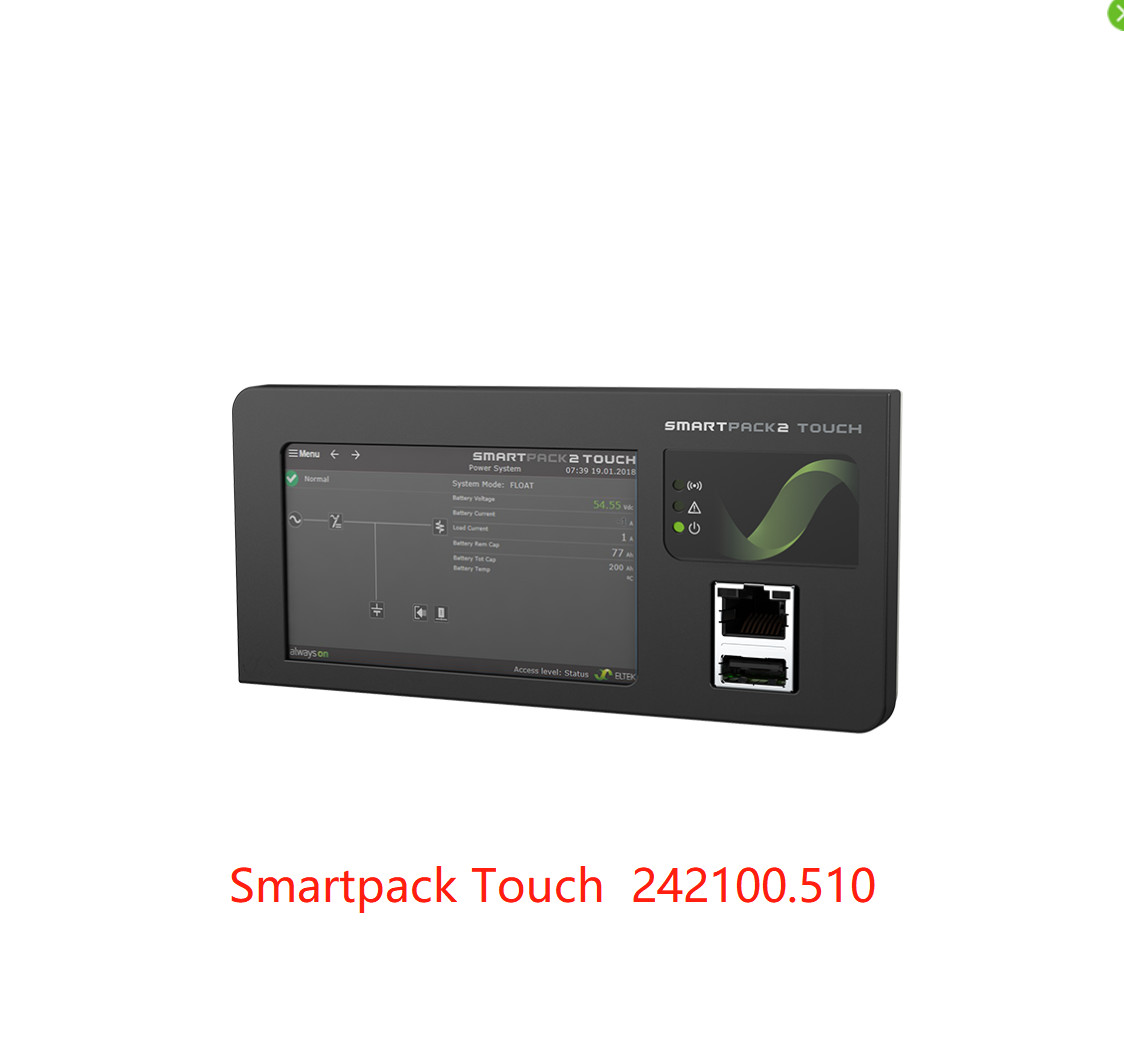

DC Power Systems 242100.510 Telecom Monitoring Module Smartpack2 Touch

Eltek Telecom Monitoring Module Smartpack2 Touch for DC power systems(Part No.:242100.510 . 242100.501 , 242100.601 )

Eltek Telecom Monitoring Module Smartpack2 Touch for DC power systems(Part No.:242100.510 . 242100.501 , 242100.601 )

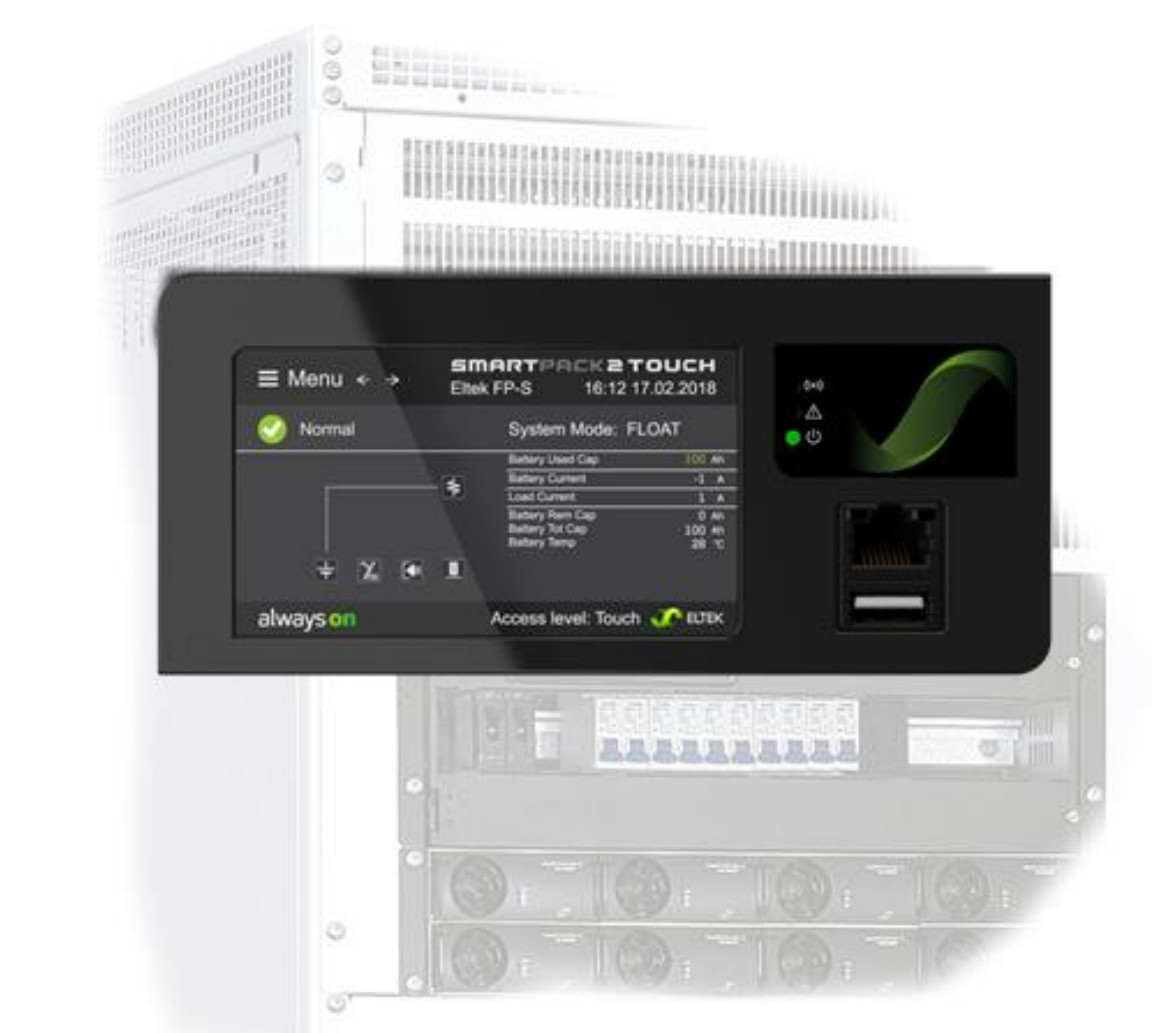

The Smartpack2 Touch controllers are powerful modules used as master controllers in the distributed control system of Smartpack2-based power supply systems.

It is equipped with a graphical display with capacitive touch interface to show and control functions of system.

SP2Touch is the interface for system information, and communicates with SP2 Basic, SP2 Basic Industrial and other nodes and power modules via CAN.

Connecting to the Ethernet port allows easy access to the SP2Touch embedded web pages. The Smartpack2 Touch controller have the same shape as the older Smartpack2 Master (2U high and 160mm wide) and can easy replace it in the power system’s front panel or door.

Key Features :

•  Touch Screen 4.4’’ running the web interface
•  LEDs for local visual alarming (Major, Minor, Power ON)
•  Ethernet port at the back for permanent connection for monitoring and control
•  Ethernet port at the front - a 'Craft port' with limited functionality and fixed ip-adr.
•  USB port in the front and back for flash drives, Wi-Fi Adapter Dongle etc.
•  RS-232 and RS-485- for communication w/3rd party equipment
•  SNMP protocol with TRAP, SET and GET on Ethernet.
•  Email of TRAP alarms
•  Comprehensive logging
•  Automatic battery monitoring and test
•  Battery lifetime indication
•  Battery used and remaining capacity (Ah or %) monitoring
•  User defined alarm grouping (Boolean logic for grouped alarms)
•  Comprehensive generator/hybrid/DC solar system control and monitoring features

Parameters :
