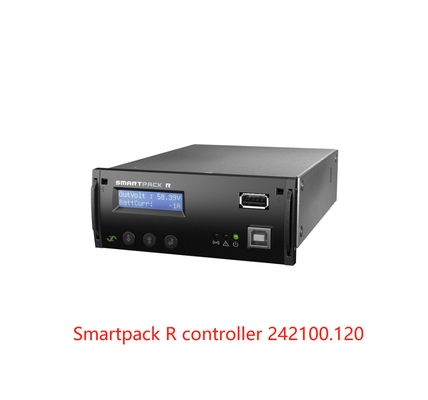

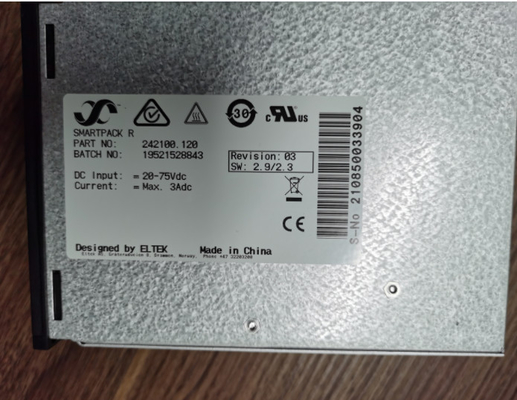

Eltek Monitoring Smartpack R controller for Telecom Power Core System (Part No. : 242100.120 )
Smartpack R controller to make your power systesm ready for a high -speed , high -capacity and connected with tomorrow, This retrofit controller will bring you existing power system in line with current requirements, prolong its life time and thereby reduce both the life time oeprating costs and the need for new investments in power.
KEY FEATURES
Form, fit, function compatible with legacy
Eltek Smartpack controller
IPv4/v6, Responsive HTML5 web interface,
SNMPv3, MODBUS TCP, RADIUS,
security penetration tested
All Eltek power modules, including
Rectiverters and CAN Nodes such as
Fleximonitor
- · TELECOM SITE MONITORING
Serial Ports/USB: USB B-type, USB A-type
Host for dongles, WiFi, 4G modems,
Bluetooth, Flash drives, etc.
RJ-11 w/RS-232/RS-485 w/ MODBUS RTU
Slave for SCADA and MODBUS RTU
Master for data collection from 3rd party
equipment with generic configurable
protocol for Smartmeters, etc. and fixed
protocols for Li-Ion batteries etc.
APPLICATIONS
TELECOM - WIRELESS
· Radio base station / Cell sites
· LTE / 4G / 5G
· MCS
· Microwave
· Broadband
TELECOM – FIXED
· Central office / CORD
· Fiber
· Broadcast
· Data center
PARAMETERS:
|
TECHNICAL SPECIFICAITON
|
|
| Model |
Smartpack R |
| Part number |
242100.120 |
| INPUT DATA |
|
| Voltage (nominal) |
10 - 75 VDC |
| Power Consumption |
3 W (display sleep, no dist. CAN Power, LVD activation, no USB power) 25 W (display on, dist CAN Power, LVD activation, USB Power) |
| SYSTEM CONNECTIONS - SYSTEM MONITORS |
|
| Voltage sense, system voltage support |
12 VDC, 24VDC, 48VDC & 60VDC |
| Current sense, shunt support |
0 - 20mV, 0-50mV, 0 - 60mV and 0-100mV |
| Battery fuse monitoring |
Auxiliary switch NO/NC, Pull up/down |
| Load fuse monitoring |
Auxiliary switch NO/NC, Diode Matrix Pull up/down |
| Battery temperature monitoring |
AD590 sensor input |
| Battery symmetry monitoring (built in) |
4 x Analog Voltage[0-75V] inputs (12, 24 or 60V blocks) |
| SYSTEM CONNECTIONS - LVD CONTROL |
|
| Battery disconnect |
1 (latched or non-latched supported) |
| Load disconnect |
2 (latched or non-latched supported) |
| GENERIC INPUTS AND OUTPUTS |
|
| Digital configurations, Inputs #1-6 |
Auxiliary switch: NO/NC |
| Analog configurations, Inputs #1-2 |
Analog Voltage[0-75V] (Configure as NO, NC, Diode Matrix sense or Voltage sense) |
| Analog configurations, Inputs #3-6 |
Analog Voltage[0-75V] (Configure as NO, NC, Diode Matrix sense or Voltage sense) Support: Temperature sense w/ NTC probe |
| Output configurations, Outputs #1-6 |
6x Relay–Dry/Form C - Configurable Normally Open/Closed [Max capacity 75V/2A/60W] |

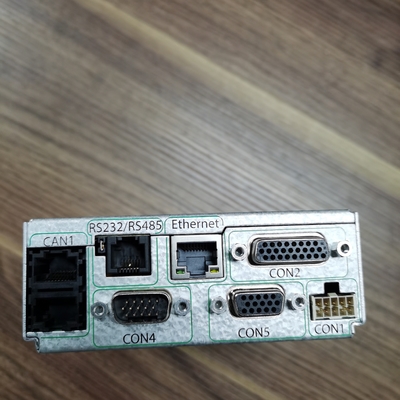

| CONTROL SYSTEM CONNECTIONS |
|
| CAN Power |
Distributed CAN Power available +/- 500mA |
|
CAN Nodes
|
Support: I/O Monitors, Battery String Monitor, Load/Current Monitor, Fleximonitor, AC Mains Monitor & Smartnode (legacy) |

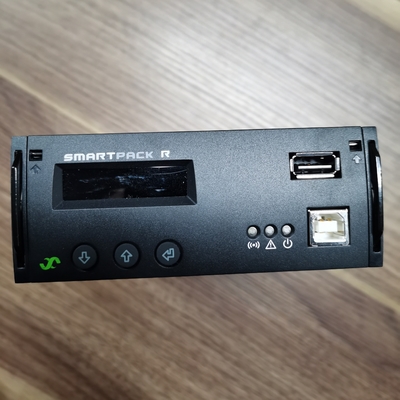

| USER INTERFACE |
|
|
| Local |
Alphanumeric LCD display (Chinese Traditional and Simplified supported) & 3 keys |
|
Ethernet port (eth 0: LAN port)
(eth 1: Craft port w/DHCP, USB Device port)
|
10/100 BASE-T (optional: 1000 BASE-T) IPv4/v6
IP protocols: HTTP (HTML5 Responsive User Interface) / SSL(TLS w/ self-signed certificate generator or load authenticated certificates), SNMP v3 w/Generic MIBs & Enterprise MIB type: SP2- MIB (Eltek Branch 10), MODBUS TCP and pComm UDP (PowerSuite), VPN, VLAN, NTP, SFTP & RADIUS
|
|
USB Host
USB Device
|
Flash Drive for SWFW upgrade and XML configuration file loading Config read from Smartpack 1 Gen USB Device port
wlan0: WiFi dongle for wireless craft port, wwan0: 4G USB Cellular Modem eth2: Ethernet Gigabit
PC – pComm – Windows PowerSuite
|
| Serial ports |
RS-232 and RS-485 on RJ11 connector
Serial protocols: MODBUS RTU Slave, MODBUS RTU/ASCII Master (several pre-defined types and full generic configurable data reader available), Modem Call-Back/SMS reporting (PSTN or GSM) and pComm (PowerSuite)
|
| GENERAL SPECIFICATIONS |
|
|
| Dimensions (WxHxD) |
109 x 44 (1U) x 156 mm (4.3 x 1.75 x 6.1”) [Chassis dept: 140 mm] |
| Temperature Range |
Operating -20 to +65˚C (-40 to 149˚F) |
| DESIGN STANDARDS |
|
|
| Electrical safety |
UL 60950-1, 2ed, 2014-10-14, EN 60950-1:2006/A2:2013 |
| EMC |
ETSI EN 300 386 V.2.1.1, EN 61000-6-1(2007) /-2(2005) /-3(2012) /-4(2011),
FCC CFR47 Part 15B section 109: 2010
|
| Environment |
ETSI EN 300 019: 2-1 v2.3.1 (Class 1.2), 2-2 v2.4.1 (Class 2.3) & 2-3 v2.4.1 (Class 3.2) 2011/65/EU (RoHS) & 2012/19/EU (WEEE)
Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-
5-3:2016 clause 4.3, must be advised
|
| |
Eltek Monitoring Comparsion
|
CAN Device
|
Start
|
End
|
Numb of Nodes
|
|
Smartpack
|
1
|
14
|
14
|
|
Smartpack 2 Basic
|
1
|
10
|
10
|
|
Smartpack 2 Master
|
11
|
14
|
4
|
|
Smartnode
|
17
|
30
|
14
|
|
Battery Monitor
|
33
|
46
|
14
|
|
Load Monitor
|
49
|
62
|
14
|
|
Flex Monitor
|
65
|
78
|
14
|
|
I/O monitors
|
81
|
94
|
14
|
|
Mains Monitor
|
97
|
110
|
14
|
