In Row Air Cooled Precision Data Center HVAC R410A Refrigerant 25.2KW

1
MOQ
Inquiry
Price
In Row Air Cooled Precision Data Center HVAC R410A Refrigerant 25.2KW
Features Gallery Product Description Request A Quote
Features
Specifications
Model: L25
Air Volume (m³/h): 5500
Cooling Capacity (kW): 25.2
Power Supply (V): 220V-3Ph-60Hz
Refrigerant: R410A
Electric Heating Type: PTC
Electric Heating Power (kW): 3
External Dimensions (mm): 300*1200*2000
Unit Weight (Kg): 295
Outdoor Unit: 125
Highlight:

Precision air conditioner R410A refrigerant

,

Data center HVAC 25.2KW cooling

,

In-row air cooled precision AC
Basic Infomation
Place of Origin: China
Brand Name: Hailos
Model Number: L25
Payment & Shipping Terms
Packaging Details: wooden cartons
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description
Description

in-row air condktionerL series is a serles of precision airconditioners for high heat density data centers. It has variaus refrigeratlion methods such as air-cooled direct expansion type and chilled water type. Designed close to the heat source, cosing thecold and hot aisles, greatly improving the cooling effidency, and eftectively reducing the PLE af the equipment room through high AER system design and precise control

Appllcation

  • Modular Data Center
  • High Thermal Density Data Center
  • Container Data Center
Specification

No. Description Model
1
Model L25
2 Unit performance Air volume (m³/h) 5500
3 Cooling capacity (kW) 25.2
4 Number of compressors (units) 1
5 Operating mode Constant temperature and humidity type
6 Compressor type Variable frequency scroll compressor
7 External static pressure (Pa) 50--300
8 Power supply (V) 220V-3Ph-60Hz
9 refrigerant R410A
10 Expansion valve Electronic expansion valve
11 Electric heating type PTC
12 Electric heating power (kW) 3
13 Humidifier type wet film
14 Humidification rate (kg/h) 3
15 Temperature control range (°C) 18-30
16 Humidity control range (RH%) 45-70
17 Temperature control accuracy (°C) ±2
18 Humidity control accuracy (RH%) ±5
19 Indoor unit Evaporator type Copper tube with aluminum fins
20 air filter G4 Level Initial Effect
21 Indoor fan type EC
22 External dimensions (mm) W 300
23 D 1200
24 H 2000
25 Unit weight (Kg) 295
26 outdoor unit Condenser type Copper tube sleeve aluminum fin
27 Number of outdoor units (units) 1
28 Outdoor unit weight (Kg) 125
29 External dimensions (mm) W 850
30 D 550
31 H 1600
32 other Indoor unit air supply method Rear intake/front discharge
33 Tracheal tube dimensions (φmm) 19
34 Liquid tube dimensions (φmm) 16
35 Condensate drain pipe (φmm) 19
36 Humidifier water inlet pipe (φmm) G1/2"
37 It is recommended to use the main cable. 10²*3+4²*2
38 Cables are used to connect indoor and outdoor units. 2.5²*3
39 Remote control system interface RS485
40 It has a power failure memory function Automatic power-on after power failure and reset
Product Display

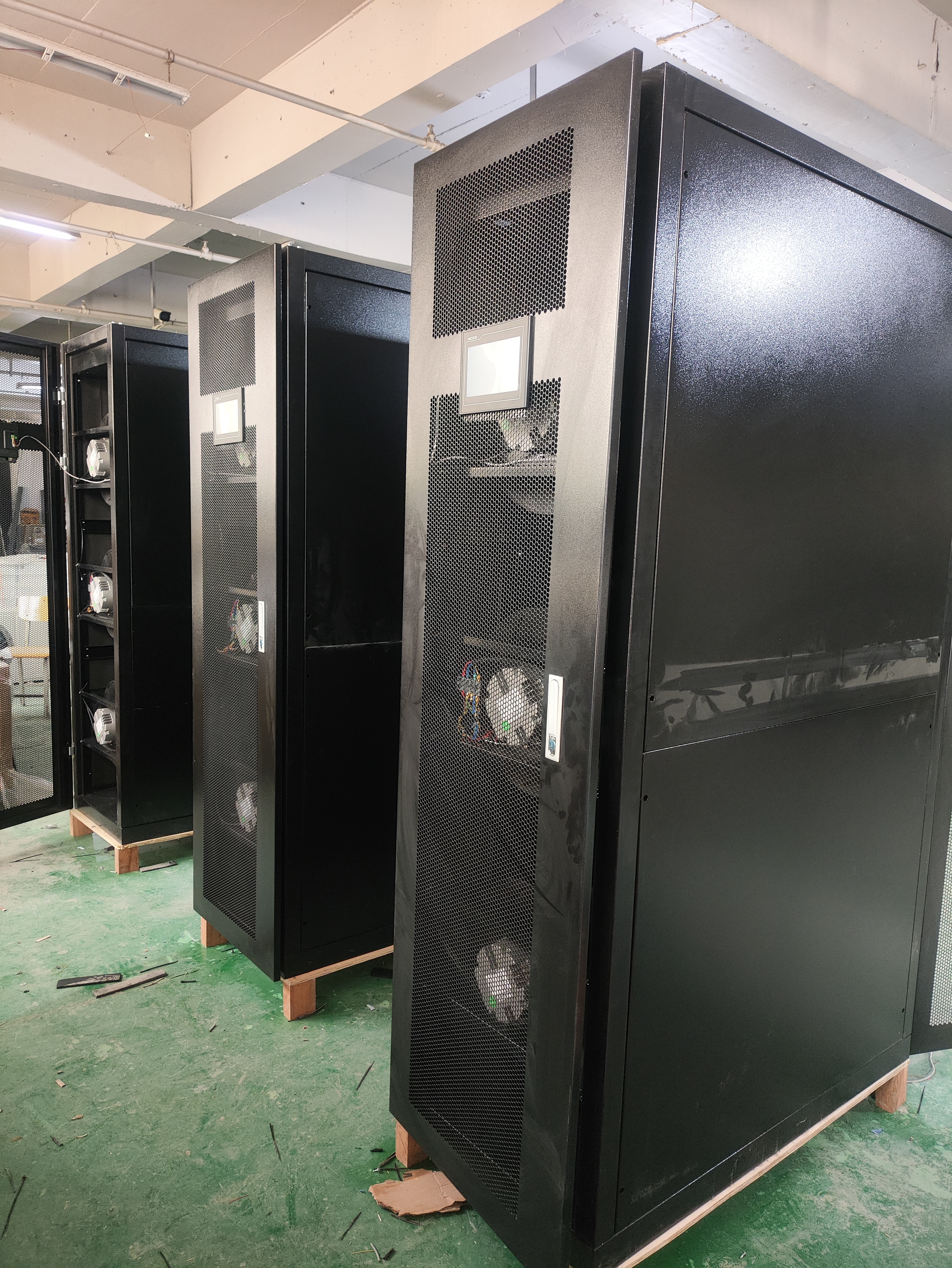

In Row Air Cooled Precision Data Center HVAC R410A Refrigerant 25.2KW 0

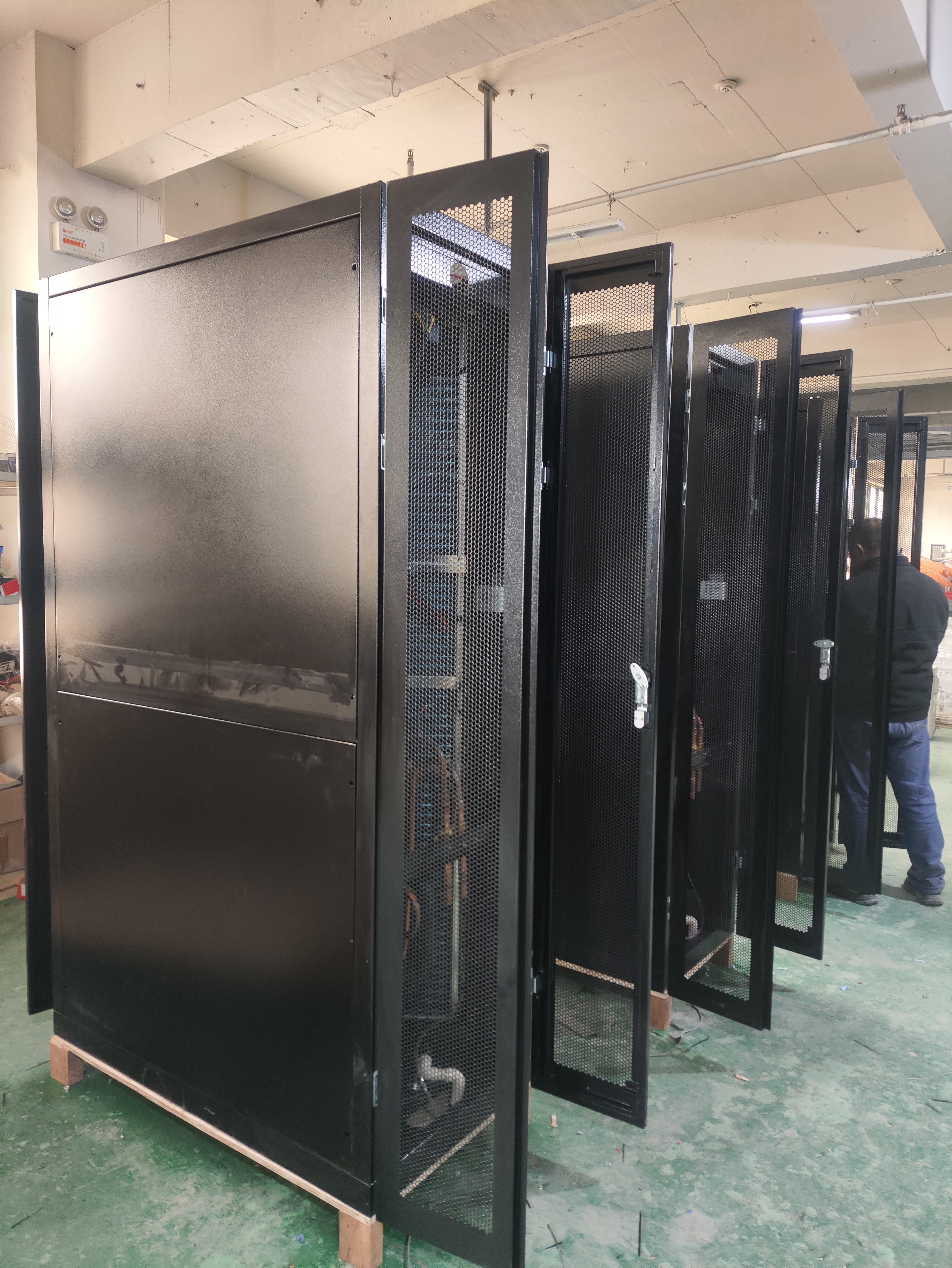

In Row Air Cooled Precision Data Center HVAC R410A Refrigerant 25.2KW 1

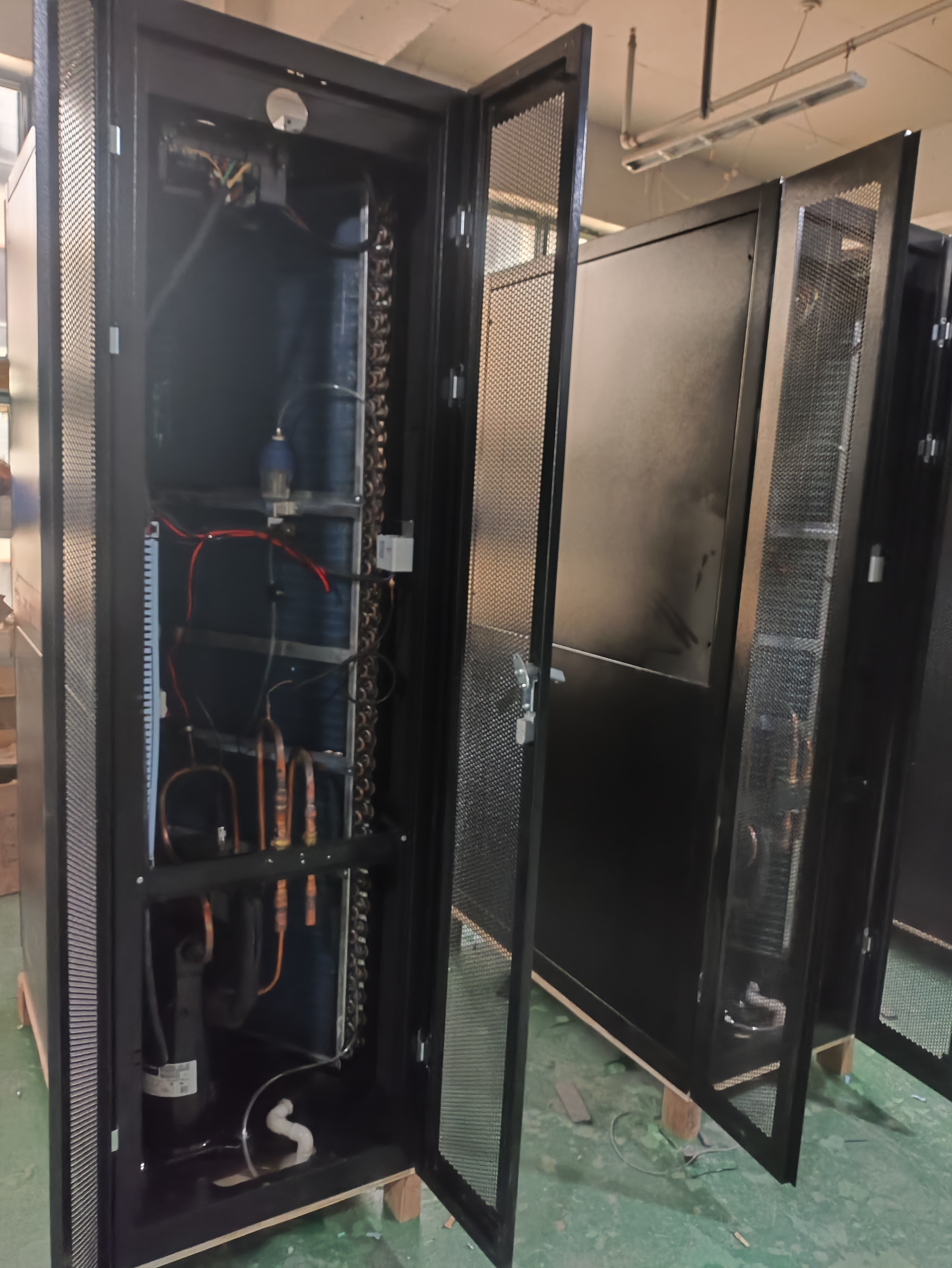

In Row Air Cooled Precision Data Center HVAC R410A Refrigerant 25.2KW 2
