In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling

1pcs
MOQ
Inquiry
Price
In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Model: L40
Cooling Capacity: 45.5
Fan Type: EC Centrifugation
Air Volume M³/h: 12000
Refrigerant: R410a
Unit Size: 600*1200*2000
Weight Kg: 420
Power Supply Specifications: 380V 3Ph -50Hz
Highlight:

380V 3Ph precision air conditioner

,

data center cooling AC unit

,

in-row air cooled L40
Basic Infomation
Place of Origin: China
Brand Name: Hailos
Model Number: L40
Payment & Shipping Terms
Packaging Details: Wooden cartons
Delivery Time: 6-8 weeks
Payment Terms: T/T
Product Description

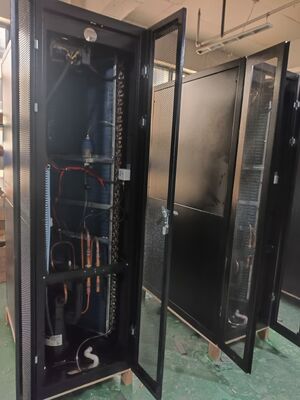

In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling 0

Energy Efficient

Close to the heat source, high cooling efficiency, reducing local hot spots Full sensible heat design, matching the load of the computer room

The high-efficiency EC fan cooperates with the EC compressor/water valve, and the optimized design of the cooling capacity stepless adjustment structure reduces wind resistance, power and noise



High Reliability

24 hours × 365 days continuous uninterrupted operation, the design life of 10 years All accessories have been strictly inspected and

tested, and the performance is stable. PTC heater is used, which is safe and reliable





Application

Modular Data Center

High Thermal Density Data Center

Container Data Center



Specification

Model LXXAW     L35 L40 L50 L60

Cooling

capacity

 Capacity KW     38.2 45.5 53.5 60.1
Sensible cooling capacity KW     38.2 45.5 53.5 60.1
Sensible heat ratio     1 1 1 1
compressor   Variable frequency vortex compressor
Fan Fan type   EC centrifugation
air volume m³/h     8200 12000 13000 14000
Air supply method The rear return air supply is equipped with a front air supply panel and can be configured with an adjustable directional air guide plate to achieve various modes such as front horizontal air supply, left side horizontal air supply, right side horizontal air supply, and horizontal air supply from both sides.
Expansion valve Electronic expansion valve
refrigerant R410a
Optional Heating amount KW     6 6 6 6
Humidification Kg/h     3 3 3 3
Unit size Width mm     600 600 600 600
Depth mm     1200 1200 1200 1200
Height mm     2000 2000 2000 2000
Connecting pipes Gas pipe mm     Φ22 Φ22 Φ28 Φ28
Liquid pipe mm     Φ16 Φ16 Φ22 Φ22
Drain pipe mm     Φ19 Φ19 Φ19 Φ19
Humidifier inlet pipe     G1/2” G1/2” G1/2” G1/2”
Weight Kg     390 420 550 680
Power Distribution Parameters Power Supply Specifications 380V 3Ph -50Hz
Recommended Circuit Breaker     D63 D63 D80 D80
Wiring Specifications mm²     10 10 16 16
Outdoor unit Outdoor unit model     L35W L40W L50W L60W
Quantity of outdoor units     1 1 1 1
Weight Kg     85 130 130 160
Wiring specifications mm²     2.5 2.5 2.5 2.5
Vertical installation Width mm     850 1470 1470 2100
Depth mm     550 550 850 1100
Height mm     1600 1085 1085 1085

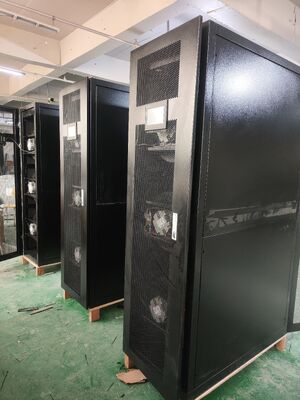

In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling 1

In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling 2In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling 3In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling 4In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling 5



In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling 6

In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling 7

In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling 8In-Row Air Cooled Precision AC Unit L Series L40 380V 3Ph Data Center Cooling 9​
