Features

Specifications

Model: L35

Cooling Capacity: 38.2

Fan Type: EC Centrifugation

Air Volume M³/h: 8200

Refrigerant: R410a

Unit Size: 600*1200*2000

Weight Kg: 390

Power Supply Specifications: 380V 3Ph -50Hz

Highlight:

Precision In-Row Air Conditioner 38.2KW cooling

R410a refrigerant precision air conditioner

L35 in-row AC with high cooling capacity

Basic Infomation

Place of Origin: China

Brand Name: Hailos

Model Number: L35

Payment & Shipping Terms

Packaging Details: Wooden cartons

Delivery Time: 6-8 weeks

Payment Terms: T/T

Gallery

Precision In-Row Air Conditioner L35 38.2KW Cooling Capacity R410a Refrigerant

Product Description

Precision In-Row Air Conditioner L35 38.2KW Cooling Capacity R410a Refrigerant 0

In-row air conditioner L series is a series of precision air conditioners for high heat density data centers. It has various

refrigeration methods such as air-cooled direct expansion type and chilled water type. Designed close to the heat source, closing the

cold and hot aisles, greatly improving the cooling efficiency, and effectively reducing the PUE of the equipment room through high

AER system design and precise control

Application

Modular Data Center

High Thermal Density Data Center

Container Data Center

Specification

Model	LXXAW			L35	L40	L50	L60
Cooling capacity	Capacity KW			38.2	45.5	53.5	60.1
	Sensible cooling capacity KW			38.2	45.5	53.5	60.1
	Sensible heat ratio			1	1	1	1
compressor				Variable frequency vortex compressor
Fan	Fan type			EC centrifugation
	air volume m³/h			8200	12000	13000	14000
	Air supply method		The rear return air supply is equipped with a front air supply panel and can be configured with an adjustable directional air guide plate to achieve various modes such as front horizontal air supply, left side horizontal air supply, right side horizontal air supply, and horizontal air supply from both sides.
Expansion valve			Electronic expansion valve
refrigerant			R410a
Optional	Heating amount KW			6	6	6	6
Optional	Humidification Kg/h			3	3	3	3
Unit size	Width mm			600	600	600	600
	Depth mm			1200	1200	1200	1200
	Height mm			2000	2000	2000	2000
Connecting pipes	Gas pipe mm			Φ22	Φ22	Φ28	Φ28
	Liquid pipe mm			Φ16	Φ16	Φ22	Φ22
	Drain pipe mm			Φ19	Φ19	Φ19	Φ19
	Humidifier inlet pipe			G1/2”	G1/2”	G1/2”	G1/2”
Weight Kg				390	420	550	680
Power Distribution Parameters	Power Supply Specifications		380V 3Ph -50Hz
	Recommended Circuit Breaker			D63	D63	D80	D80
	Wiring Specifications mm²			10	10	16	16
Outdoor unit	Outdoor unit model			L35W	L40W	L50W	L60W
	Quantity of outdoor units			1	1	1	1
	Weight Kg			85	130	130	160
	Wiring specifications mm²			2.5	2.5	2.5	2.5
	Vertical installation	Width mm		850	1470	1470	2100
		Depth mm		550	550	850	1100
		Height mm		1600	1085	1085	1085

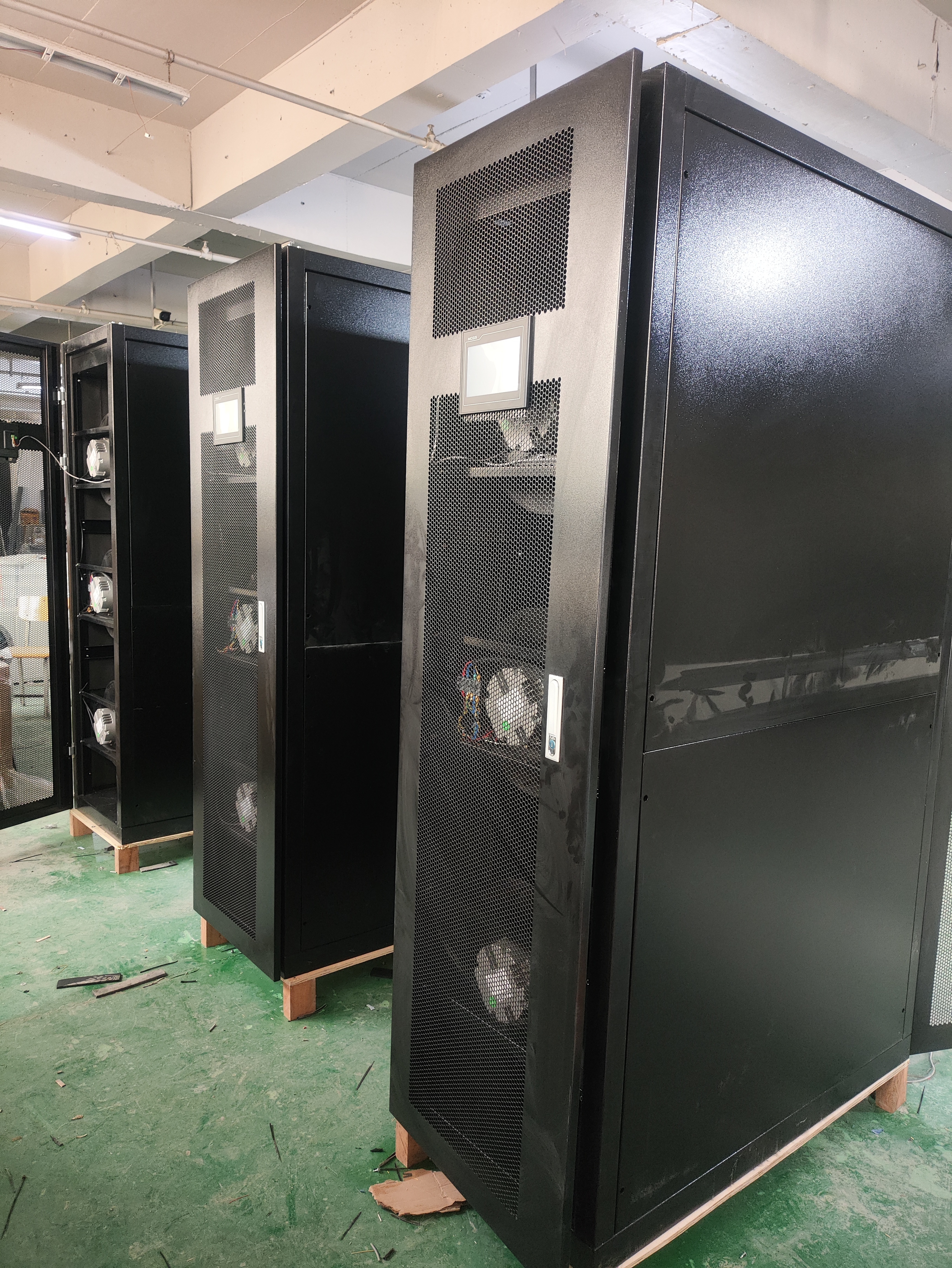

Precision In-Row Air Conditioner L35 38.2KW Cooling Capacity R410a Refrigerant 1

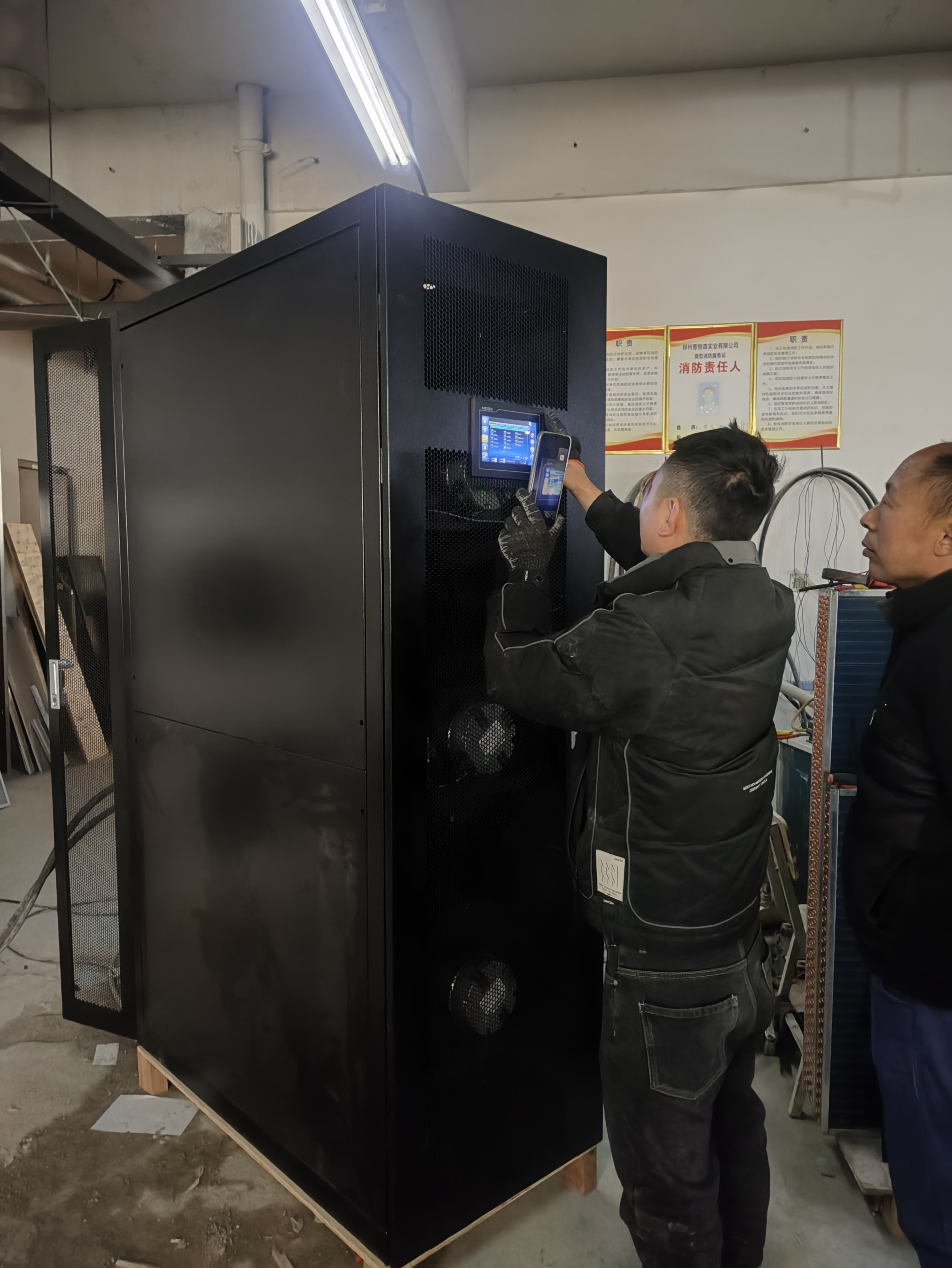

Precision In-Row Air Conditioner L35 38.2KW Cooling Capacity R410a Refrigerant 2

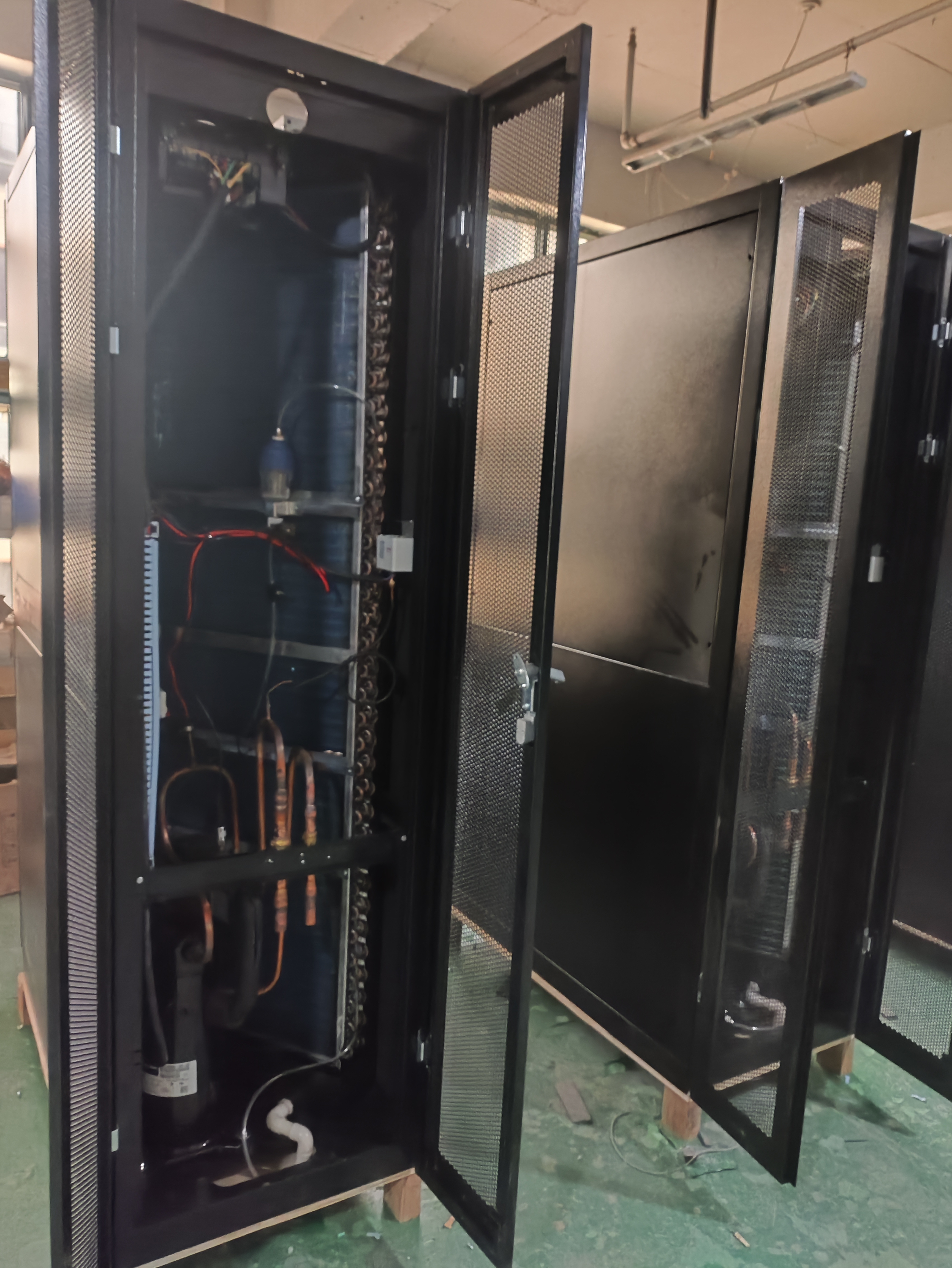

Precision In-Row Air Conditioner L35 38.2KW Cooling Capacity R410a Refrigerant 6

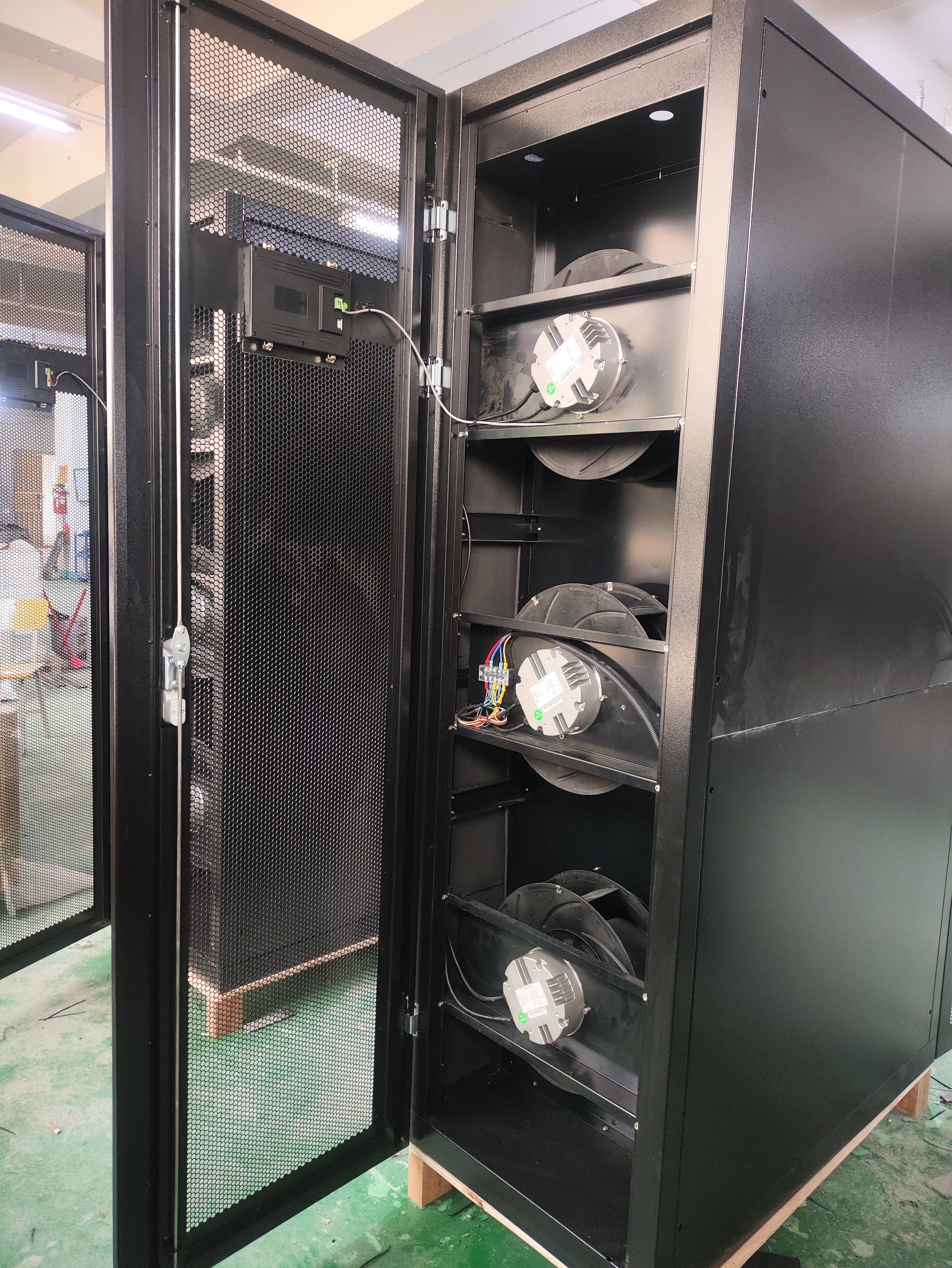

Precision In-Row Air Conditioner L35 38.2KW Cooling Capacity R410a Refrigerant 7

Precision In-Row Air Conditioner L35 38.2KW Cooling Capacity R410a Refrigerant 8
