Name: CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: Sierra 25 – 380/230-277
Price: 99 USD
Availability: InStock

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201

MOQ

99 USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: CET

Model Number: Sierra 25 – 380/230-277

Product Name: Converters

Part No.: T721D70201

DC Voltage (input Range): 380 Vdc (200 – 430)

AC Voltage (input Range): 230, 240 & 277 Vac (150 – 293)

Output Power: 3 KVA / 2.7 KW

Efficiency: DC/AC: 94.5%

Efficiency: AC/AC: 96%

Dimension: 2U X 103 Mm X 435 Mm

Highlight:

3KVA UPS Converter

2.7KW UPS Converter

Basic Infomation

Place of Origin: CN

Brand Name: CET

Certification: CE

Model Number: Sierra 25 – 380/230-277

Payment & Shipping Terms

Packaging Details: Wooden cartons

Delivery Time: 2-4 weeks

Supply Ability: 500 sets / month

Gallery

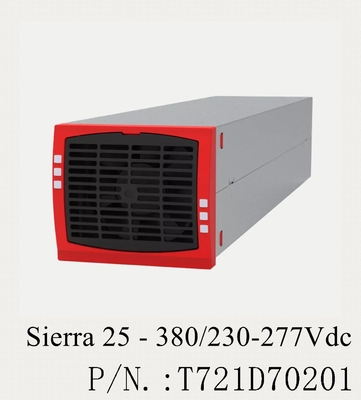

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201

Product Description

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 0

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 for AC &DC loads (P/N.: T721D70201)

Description:

Sierra 25 – 380/230-277 can be used as a UPS to secure AC & DC loads and charge the batteries. T

his solution is designed for high-voltage DC infrastructures.

The 3 all bidirectional ports allow for multiple innovative applications such as grid reinjection, peak shavings,

phase balancing or energy sharing through DC distribution, among many others.

By using several modules, we can offer solutions for three-phase (3x400Vac + N) infrastructures.

The module can be integrated in small or large cabinets to reach up to 2 MW. With our new Inview S monitoring,

you can benefit from a unique experience.

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 1

Key Features:

Secure AC & DC loads;
High voltage DC (380V);
Many innovative applications;
Compatible with Inview S and X;
Modularity: from 2.7 kW to 2 MW;
From small to large systems.

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 2

Parameters:

In/Out: DC voltage (range)	380 Vdc (200 – 430)
In/Out: AC voltage (range)	230, 240 & 277 Vac (150 – 293)
Output power	3 kVA / 2.7 kW
Efficiency: DC/AC	94.5%
Efficiency: AC/AC	96%
Temperature	-20°C to 65°C
Dimension	2U x 103 mm x 435 mm
Part number	T721D70201

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 3

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 4

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 5

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 8

more......

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 9

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 10

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 11

CET UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 P/N T721D70201 12
